P2016

P2016-INTAKE MANIFOLD RUNNER POSITION SENSOR CIRCUIT LOW

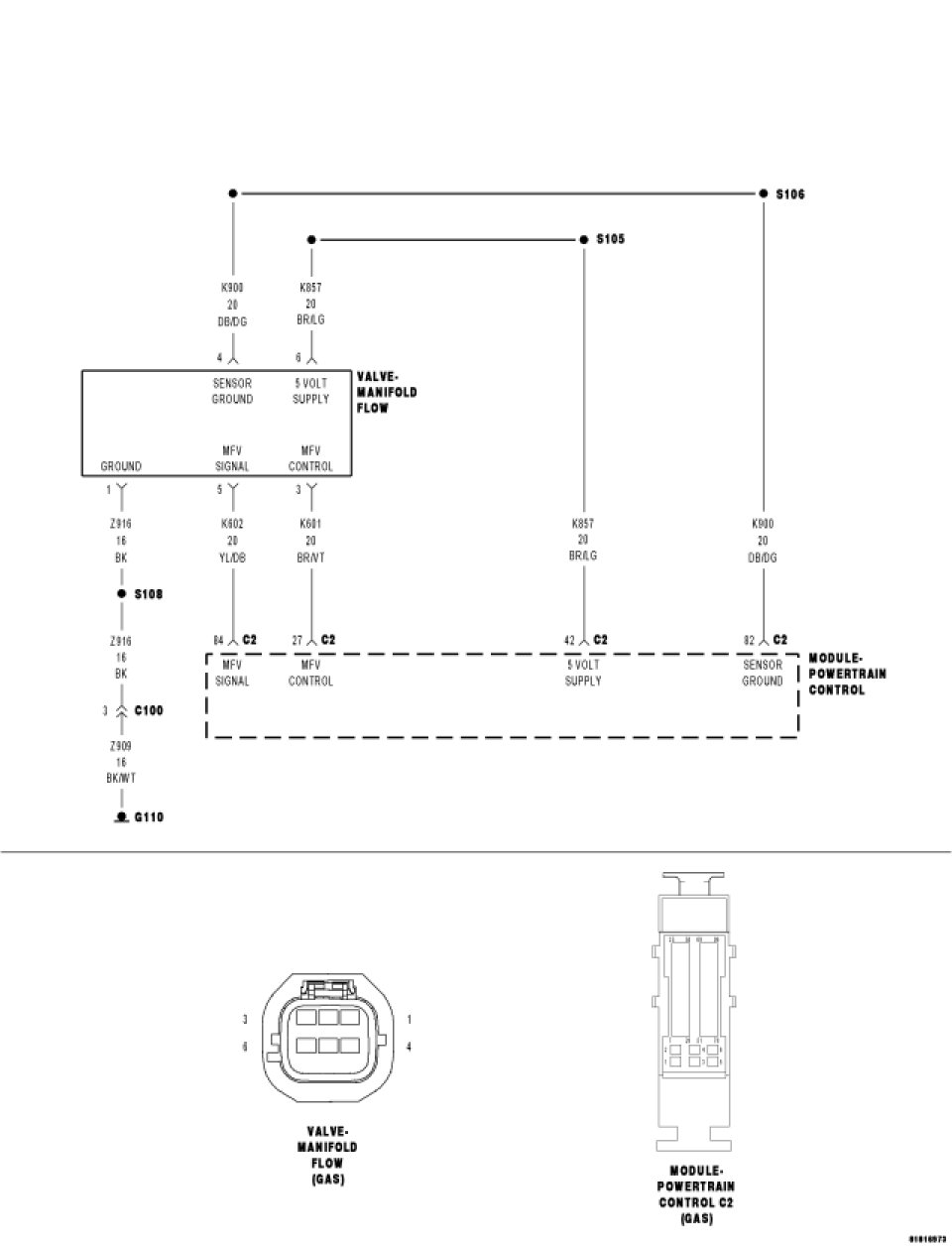

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on and battery voltage greater than 10.4 volts.

- Set Condition:

The PCM detects that the MFV Position Sensor input voltage is below the minimum acceptable value.






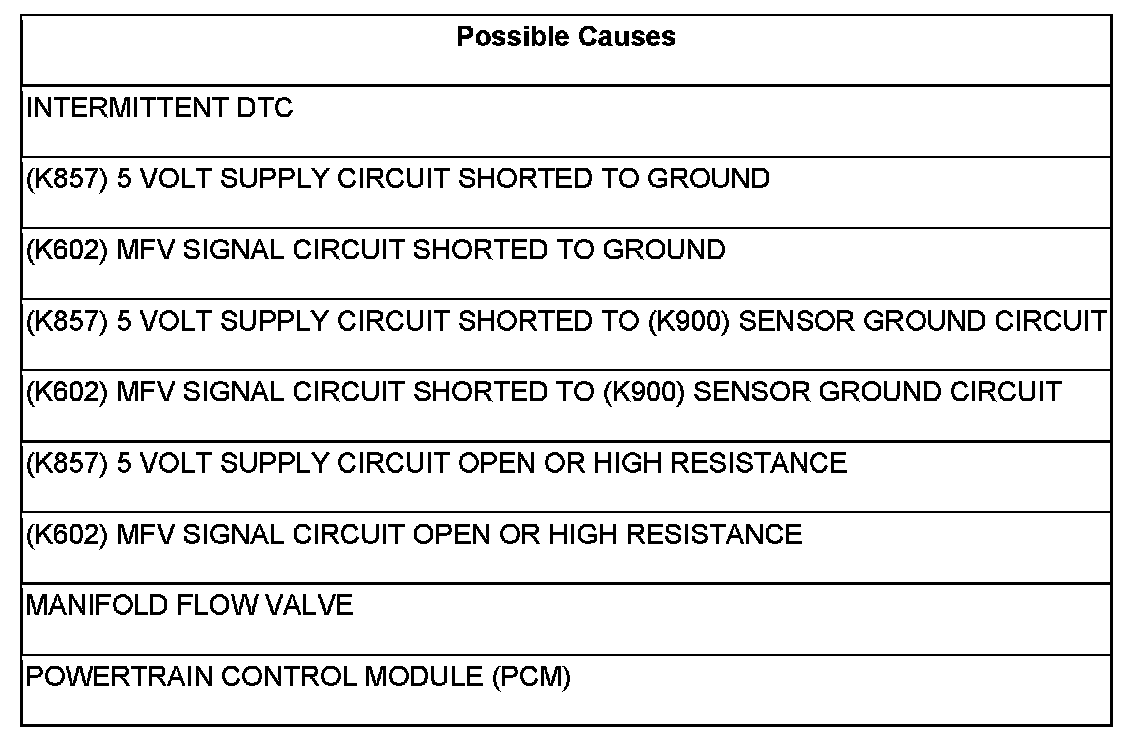

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. DTC IS ACTIVE

NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.

Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC

2. (K857) 5 VOLT SUPPLY CIRCUIT VOLTAGE





Turn the ignition off.

Disconnect the Manifold Flow Valve connector.

Turn the ignition on.

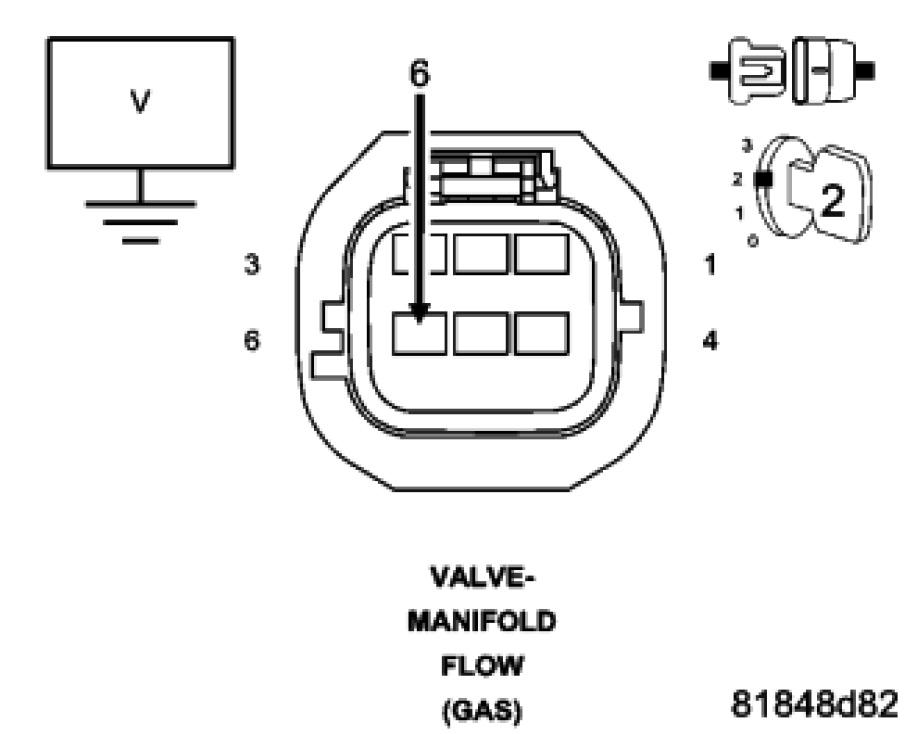

Measure the voltage of the (K857) 5 Volt Supply circuit in the Manifold Flow Valve harness connector.

Is the voltage above 4.5 volts?

Yes

- Go to 6

No

- Go to 3

3. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND





Turn the ignition on.

Disconnect the Powertrain Control Module (PCM) connector.

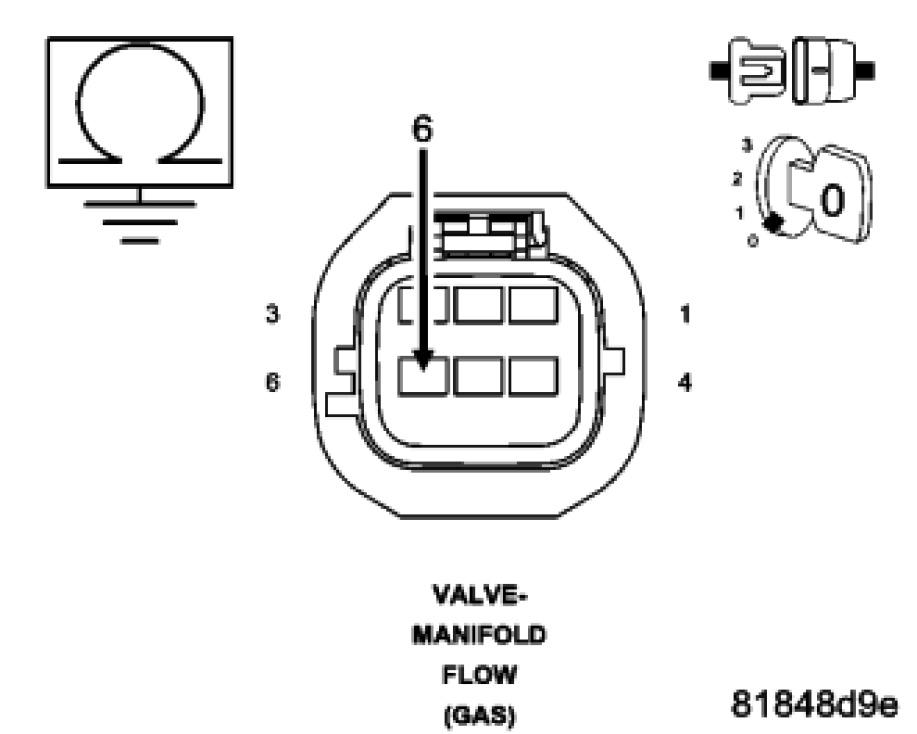

Measure the resistance between ground and the (K857) 5 Volt Supply circuit in the Manifold Flow Valve harness connector.

Is the resistance above 1000 ohms?

Yes

- Go to 4

No

- Repair the (K857) 5 Volt Supply circuit for a short to ground.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

4. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT

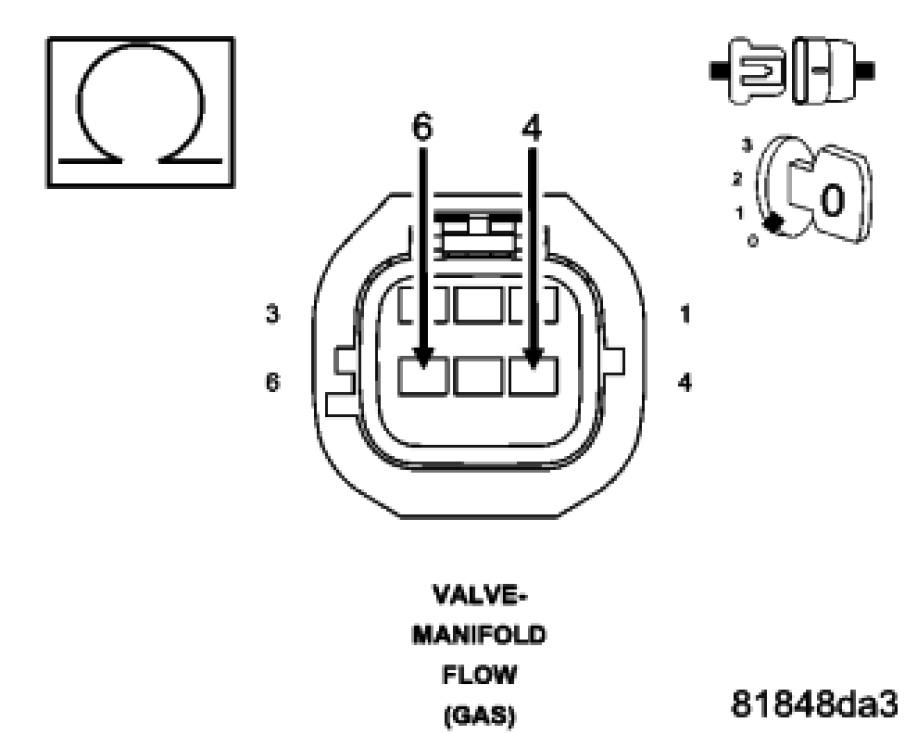

Measure the resistance between the (K857) 5 Volt Supply circuit and the (K900) Sensor Ground circuit in the Manifold Flow Valve harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 5

No

- Repair the (K857) 5 Volt Supply circuit for a short to the (K900) Sensor Ground circuit.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

5. (K857) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

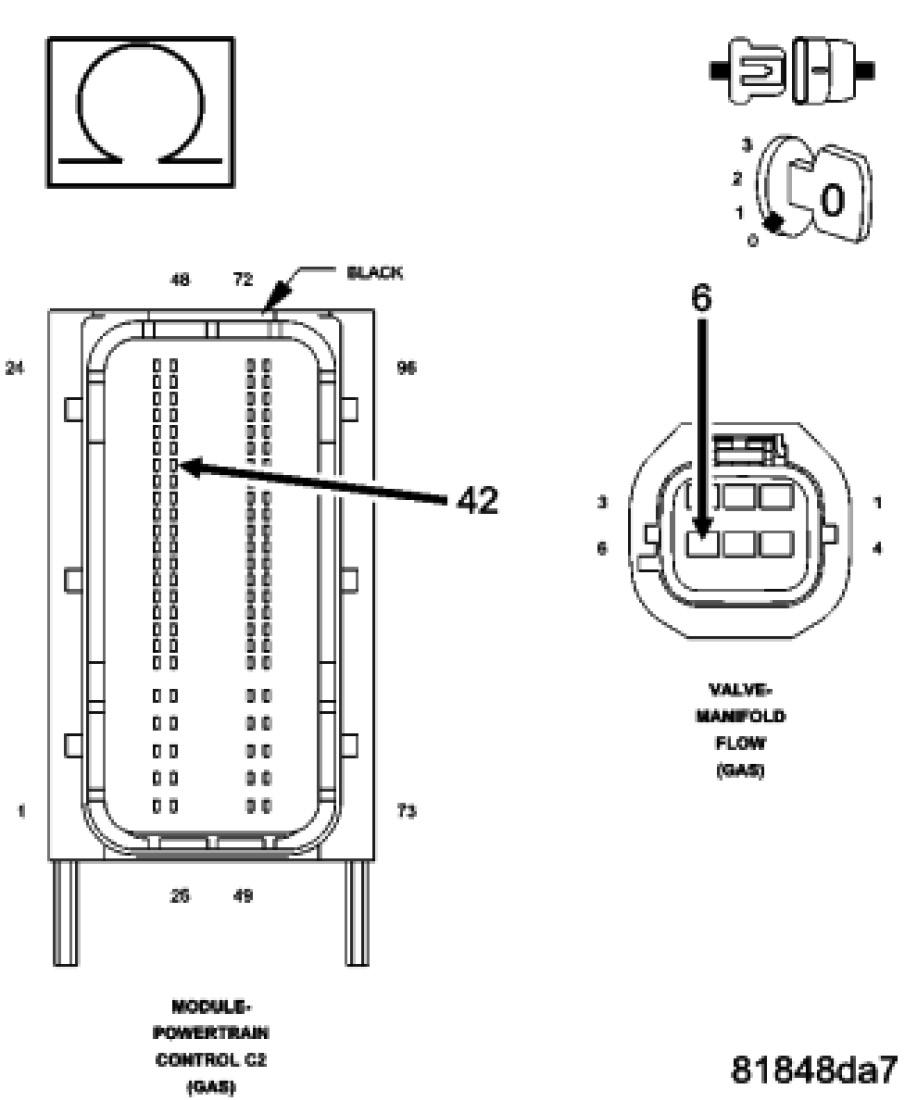

Measure the resistance of the (K857) 5 Volt Supply circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 10

No

- Repair the (K857) 5 Volt Supply circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

6. (K602) MFV SIGNAL CIRCUIT SHORTED TO GROUND





Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

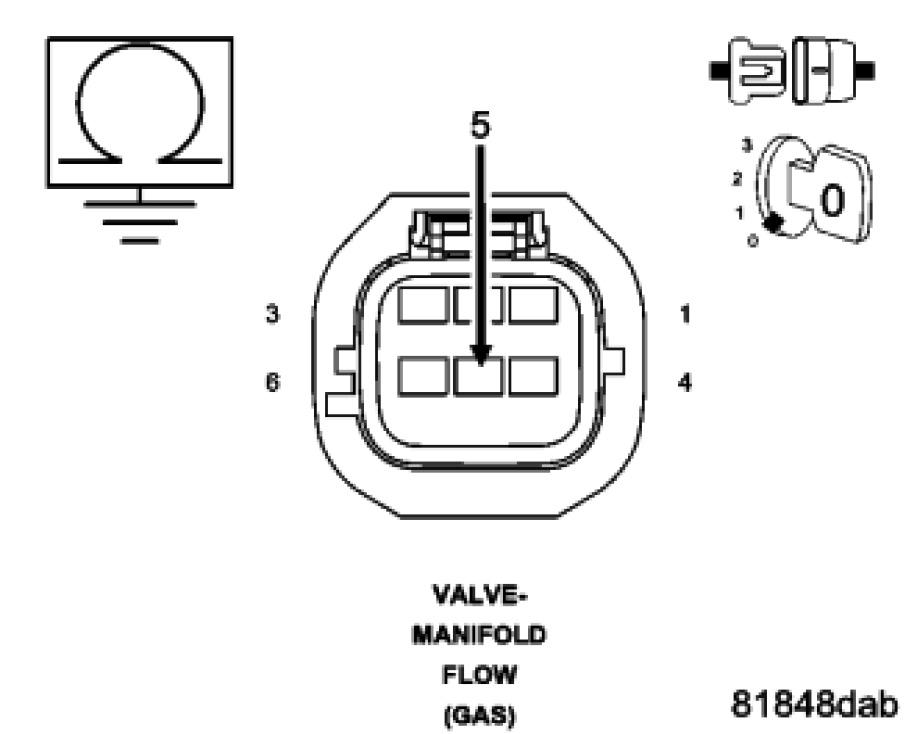

Measure the resistance between ground and the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 7

No

- Repair the (K602) MFV Signal circuit for a short to ground.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

7. (K602) MFV SIGNAL CIRCUIT SHORTED TO (K900) SENSOR GROUND CIRCUIT

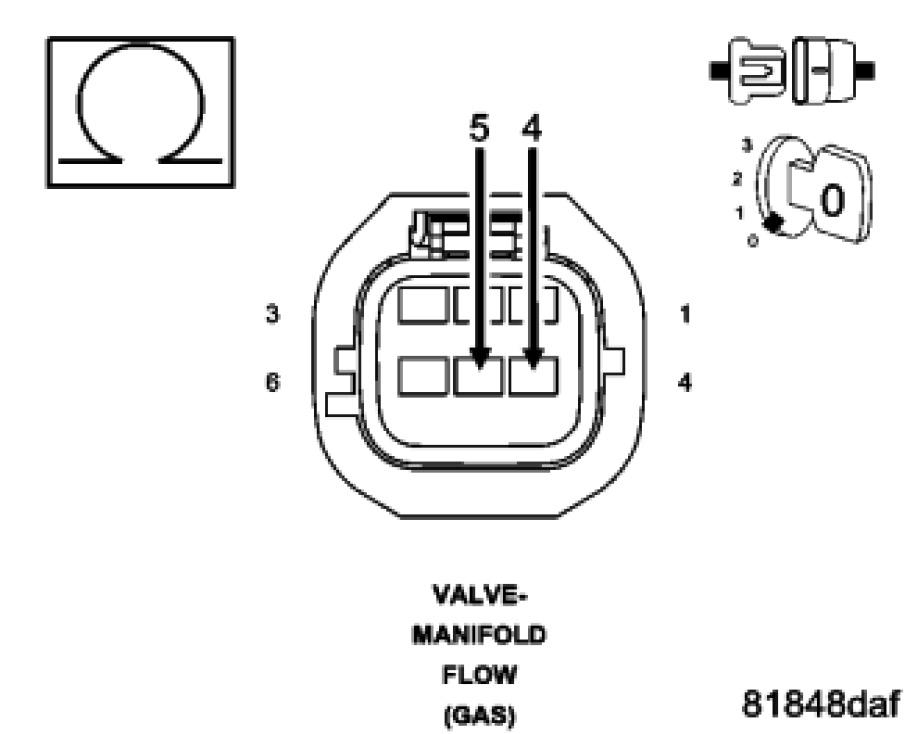

Measure the resistance between the (K602) MFV Signal circuit and the (K900) Sensor Ground circuit in the Manifold Flow Valve harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 8

No

- Repair the (K602) MFV Signal circuit for a short to the (K900) Sensor Ground circuit.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

8. (K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

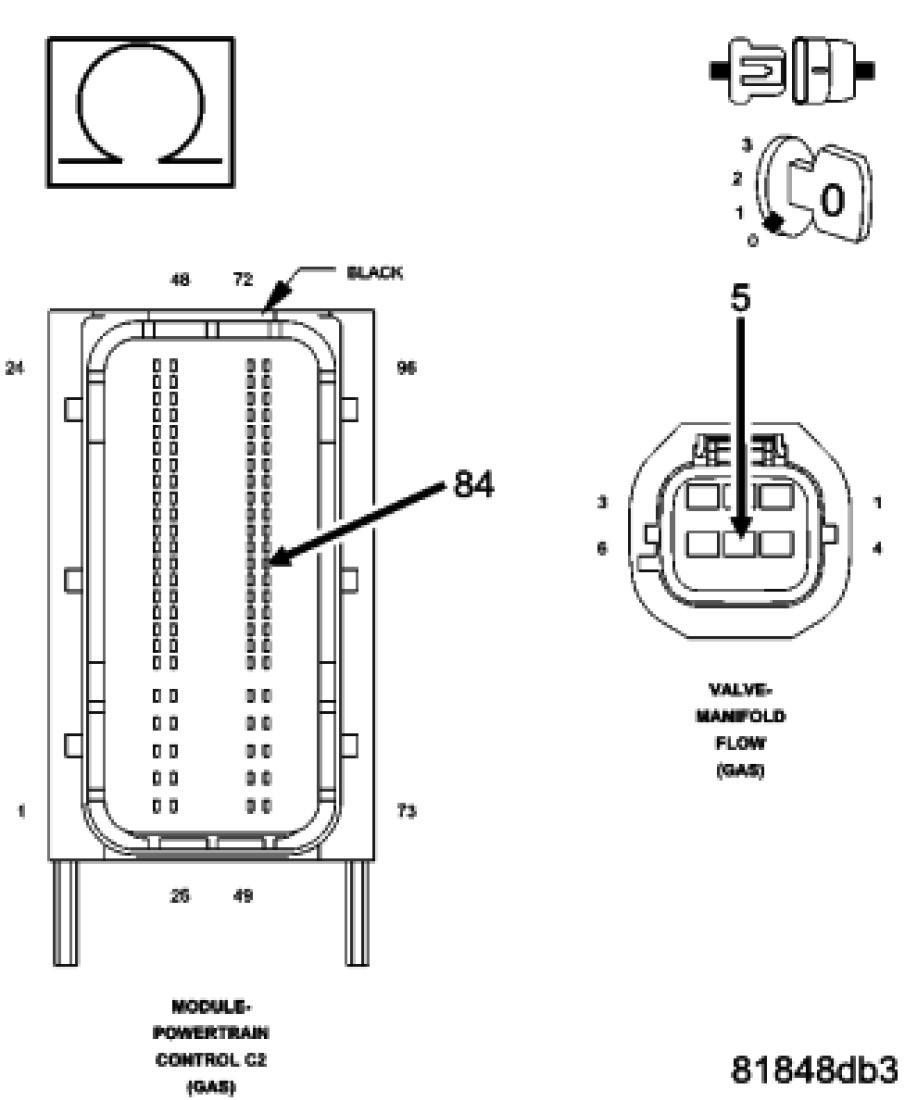

Measure the resistance of the (K602) MFV Signal circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 9

No

- Repair the (K602) MFV Signal circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

9. MANIFOLD FLOW VALVE





Turn the ignition off.

Connect the Powertrain Control Module (PCM) connector.

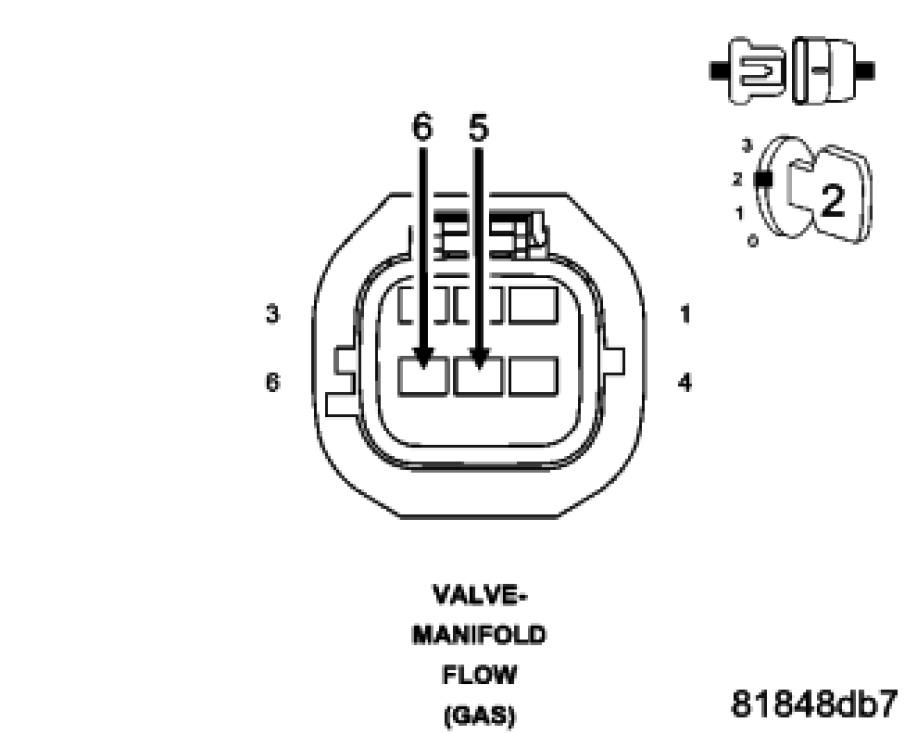

Connect a jumper wire between the (K857) 5 Volt Supply circuit and the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.

Turn the ignition on.

With the scan tool, read the Manifold Flow Valve signal voltage.

Is the voltage above 4.5 volts with the jumper wire in place?

Yes

- Replace the Manifold Flow Valve.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 10

10. POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
