P0632

P0632-ODOMETER NOT PROGRAMMED IN PCM

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Ignition on.

- Set Condition:

The vehicle mileage is not programed into the PCM. One Trip Fault. Three good trips to turn off the MIL.






Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

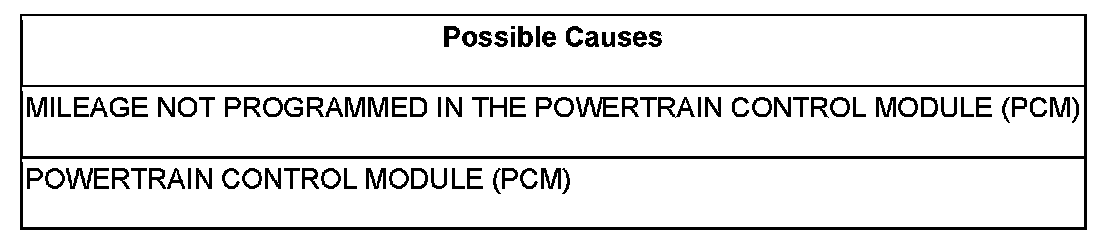

1. MILEAGE NOT PROGRAMMED IN THE POWERTRAIN CONTROL MODULE (PCM)

Ignition on, engine not running.

With a scan tool, Clear DTCs.

Using the scan tool, program the vehicle mileage into the Powertrain Control Module (PCM).

Start the engine and allow it to reach normal operating temperature.

With a scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Test complete.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
