P0366






P0366-CAMSHAFT POSITION SENSOR PERFORMANCE-BANK 1 SENSOR 2





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the engine cranking or running.

- Set Condition:

The PCM receives either no signal or an incorrect signal from the Camshaft 1/2 Position Sensor.






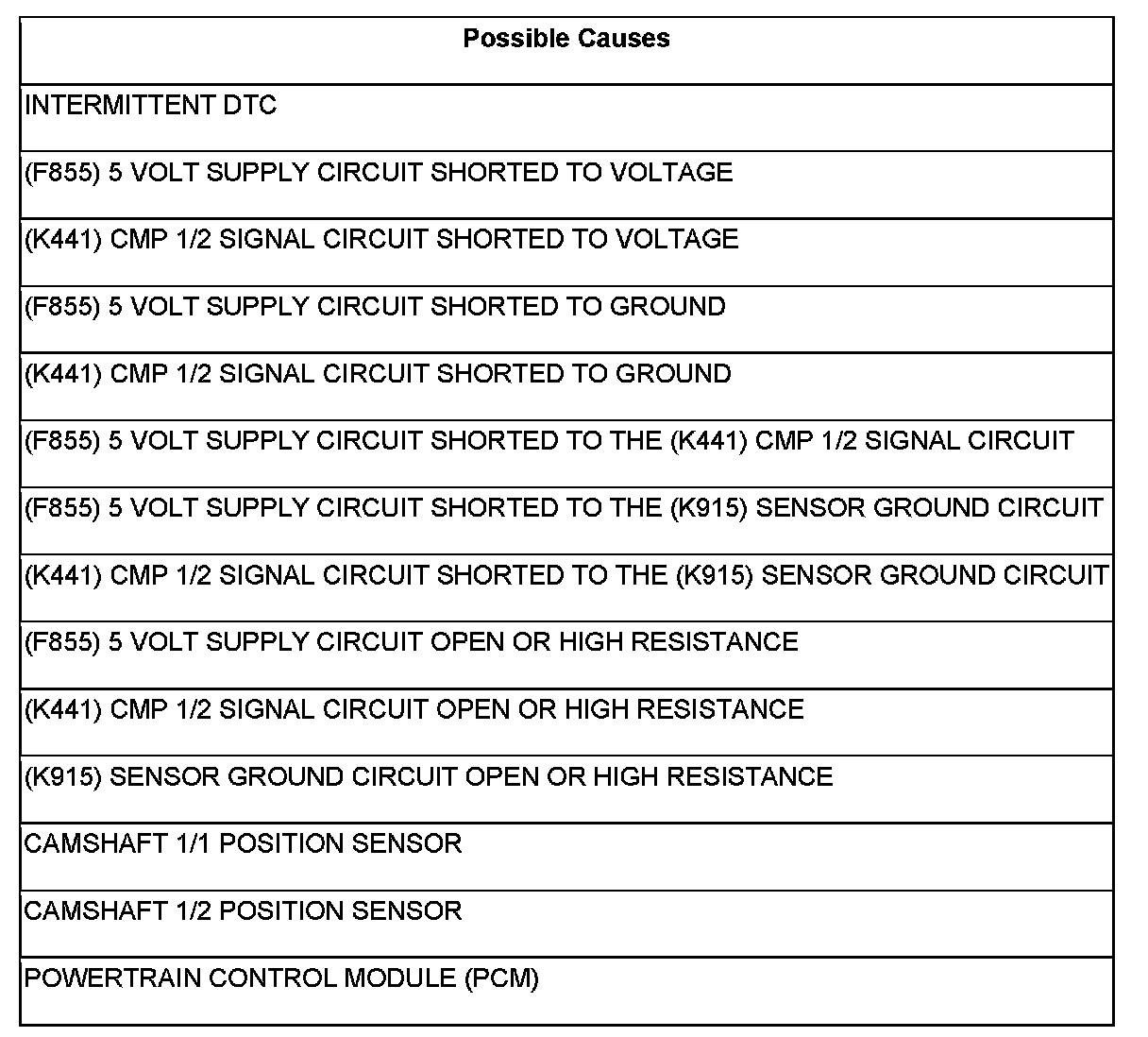

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. DTC IS ACTIVE

Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several seconds.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

- Go to 2

No

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC

2. (F855) 5 VOLT SUPPLY CIRCUIT VOLTAGE





Turn the ignition off.

Disconnect the Camshaft 1/2 Position Sensor connector.

Turn the ignition on.

Measure the voltage of the (F855) 5 Volt Supply circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

- Go to 3

No

- Go to 7

3. (K441) CMP 1/2 SIGNAL CIRCUIT VOLTAGE





Measure the voltage of the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

- Go to 4

No

- Go to 11

4. (K915) SENSOR GROUND CIRCUIT TEST





Turn the ignition off.

Using a 12 volt test light connected to 12 volts, check the (K915) Sensor Ground in the Camshaft 1/2 Position Sensor harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

- Go to 5

No

- Go to 15

5. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K441) CMP 1/2 SIGNAL CIRCUIT





Measure the resistance between the (F855) 5 Volt Supply circuit and the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 6

No

- Repair the (F855) 5 Volt Supply circuit for a short to the (K441) CMP 1/2 Signal circuit.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

6. CAMSHAFT 1/1 POSITION SENSOR IRREGULAR SIGNAL





Connect the Camshaft 1/2 Position Sensor connector.

Using a lab scope and the Miller special tool #6801, backprobe the (K44) CMP 1/1 Signal circuit in the Camshaft 1/1 Position Sensor harness connector.

Ignition on, engine not running.

Wiggle the related wire harness and lightly tap on the Camshaft 1/1 Position Sensor while monitoring the lab scope screen.

Start the engine.

Monitor the Camshaft 1/1 Position Sensor signal on the lab scope screen.

Were any Camshaft 1/1 Position Sensor signals irregular or missing?

Yes

- Go to 16

No

- Go to 17

7. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE





Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

Measure the voltage of the (F855) 5 Volt Supply circuit in the Camshaft 1/2 Position Sensor harness connector.

Is there any voltage present?

Yes

- Repair the (F855) 5 Volt Supply circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 8

8. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND





Turn the ignition off.

Measure the resistance between ground and the (F855) 5 Volt Supply circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 9

No

- Repair the (F855) 5 Volt Supply circuit for a short to ground.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

9. (F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K915) SENSOR GROUND CIRCUIT





Measure the resistance between the (F855) 5 Volt Supply circuit and the (K915) Sensor Ground circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 10

No

- Repair the (F855) 5 Volt Supply circuit for a short to the (K915) Sensor Ground circuit.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

10. (F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE





Measure the resistance of the (F855) 5 Volt Supply circuit between the Camshaft 1/2 Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 18

No

- Repair the (F855) 5 Volt Supply circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

11. (K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE





Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

Measure the voltage of the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor harness connector.

Is there any voltage present?

Yes

- Repair the (K441) CMP 1/2 Signal circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 12

12. (K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO GROUND





Turn the ignition off.

Measure the resistance between ground and the (K441) CMP 1/2 Signal circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 13

No

- Repair the (K441) CMP 1/2 Signal circuit for a short to ground.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

13. (K441) CMP 1/2 SIGNAL CIRCUIT SHORTED TO (K915) SENSOR GROUND CIRCUIT





Measure the resistance between the (K441) CMP 1/2 Signal circuit and the (K915) Sensor Ground circuit in the Camshaft 1/2 Position Sensor harness connector.

Is the resistance above 100 ohms?

Yes

- Go to 14

No

- Repair the (K441) CMP 1/2 Signal circuit for a short to the (K915) Sensor Ground circuit.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

14. (K441) CMP 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE





Measure the resistance of the (K441) CMP 1/2 Signal circuit between the Camshaft 1/2 Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 18

No

- Repair the (K441) CMP 1/2 Signal circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

15. (K915) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE





Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Measure the resistance of the (K915) Sensor Ground circuit between the Camshaft 1/2 Position Sensor harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 18

No

- Repair the (K915) Sensor Ground circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

16. CAMSHAFT 1/1 POSITION SENSOR

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Camshaft 1/1 Position Sensor and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Inspect the Camshaft 1/1 Position Sensor for conditions such as loose mounting screws, damage, or cracks.

If no other problems are found, remove the Camshaft 1/1 Position Sensor.

Inspect the Camshaft 1/1 Position Sensor and mounting area for any condition that would result in an incorrect signal, such as damage, foreign material, or excessive movement.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace the Camshaft 1/1 Position Sensor.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

17. CAMSHAFT 1/2 POSITION SENSOR

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Camshaft 1/2 Position Sensor and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Inspect the Camshaft 1/2 Position Sensor for conditions such as loose mounting screws, damage, or cracks.

If no other problems are found, remove the Camshaft 1/2 Position Sensor.

Inspect the Camshaft 1/2 Position Sensor and mounting area for any condition that would result in an incorrect signal, such as damage, foreign material, or excessive movement.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace the Camshaft 1/2 Position Sensor.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

18. POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Camshaft 1/2 Position Sensor and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
