P0132

P0132-O2 SENSOR 1/1 CIRCUIT HIGH





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the Oxygen Sensor 1/1 heater temperature greater than 496° C (925° F) and battery voltage greater than 10.4 volts.

- Set Condition:

The PCM detects that the Oxygen Sensor 1/1 voltage is greater than 3.99 volts for 40 seconds. One Trip Fault. Three good trips to turn off the MIL.






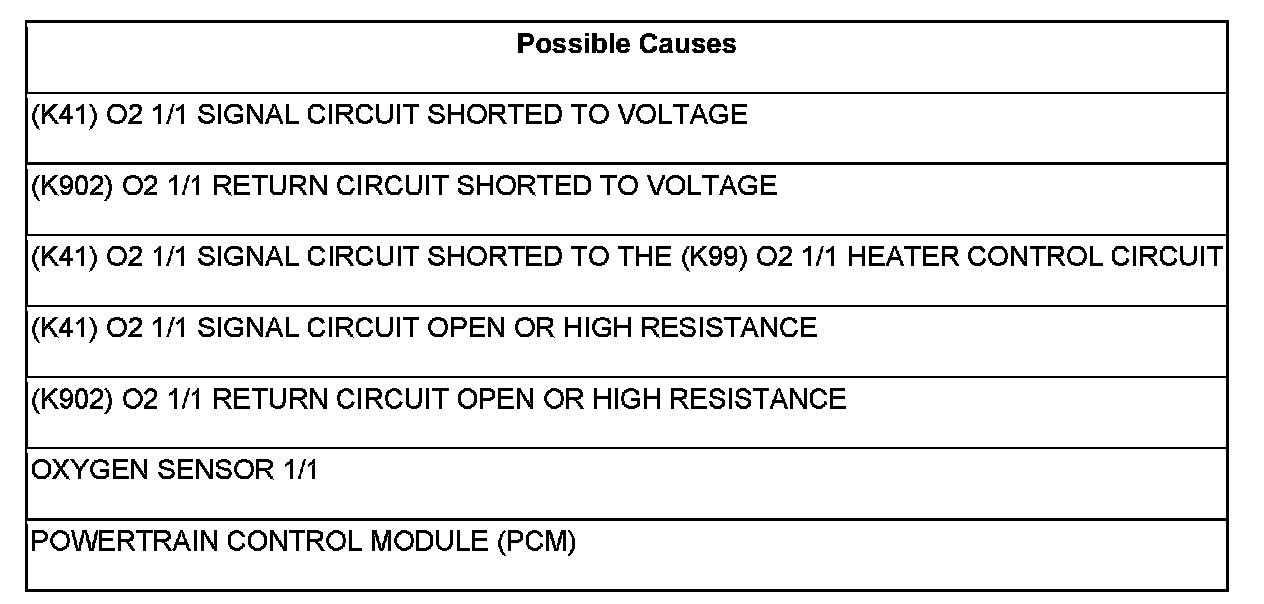

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. OXYGEN SENSOR 1/1 VOLTAGE

Start the engine and allow it to reach operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

With a scan tool, monitor the 1/1 O2 Volts (0-1) parameter.

Is the voltage switching between 0 and 1 volt?

Yes

- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. Checking for an Intermittent DTC

No

- Go to 2

2. (K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO VOLTAGE





Start the engine and allow it to idle.

Disconnect the Oxygen Sensor 1/1 harness connector.

Measure the voltage on the (K41) O2 1/1 Signal circuit in the Oxygen Sensor 1/1 harness connector.

NOTE: Measure the voltage in reference to ground, not the (K902) O2 1/1 Return circuit.

Is the voltage above 5.2 volts?

Yes

- Repair the (K41) O2 1/1 Signal circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 3

3. (K902) O2 1/1 RETURN CIRCUIT SHORTED TO VOLTAGE





Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) harness connector.

Turn the ignition on.

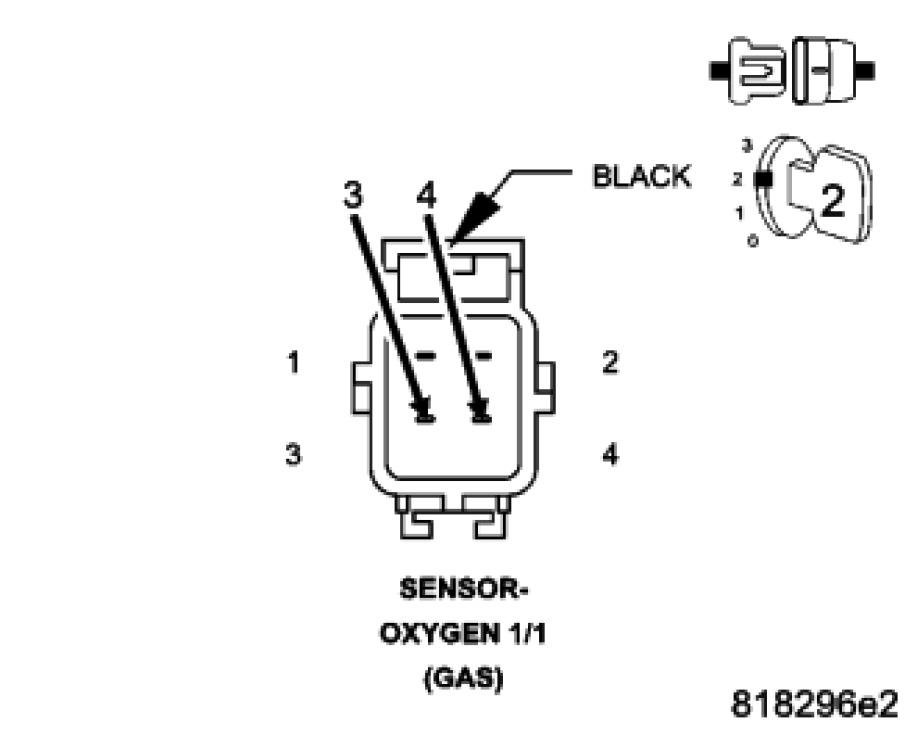

Measure the voltage on the (K902) O2 1/1 Return circuit in the Oxygen Sensor 1/1 harness connector.

Is there any voltage present?

Yes

- Repair the (K902) O2 1/1 Return circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 4

4. (K41) O2 1/1 SIGNAL CIRCUIT SHORTED TO THE (K99) O2 1/1 HEATER CONTROL CIRCUIT





Turn the ignition off.

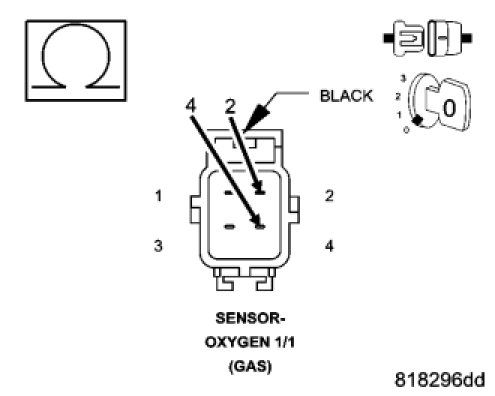

Measure the resistance between the (K41) O2 1/1 Signal circuit and the (K99) O2 1/1 Heater Control circuit the Oxygen Sensor 1/1 harness connector.

Is the resistance below 100.0 ohms?

Yes

- Repair the (K41) O2 1/1 Signal circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 5

5. OXYGEN SENSOR 1/1





Turn the ignition off.

Connect the Powertrain Control Module (PCM) harness connector.

Connect a jumper wire between the (K41) O2 1/1 Signal circuit and the (K902) O2 1/1 Return circuit in the Oxygen Sensor 1/1 harness connector.

Turn the ignition on.

With a scan tool, monitor the Oxygen Sensor 1/1 voltage.

Is the voltage between 2.3 and 2.7 volts with the jumper wire in place?

Yes

- Replace the Oxygen Sensor 1/1.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Go to 6

6. (K41) O2 1/1 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE





Turn the ignition off.

If necessary, remove the jumper wire from between the (K41) O2 1/1 Signal circuit and the (K902) O2 1/1 Return circuit in the Oxygen Sensor 1/1 harness connector.

Disconnect the Powertrain Control Module (PCM) harness connector.

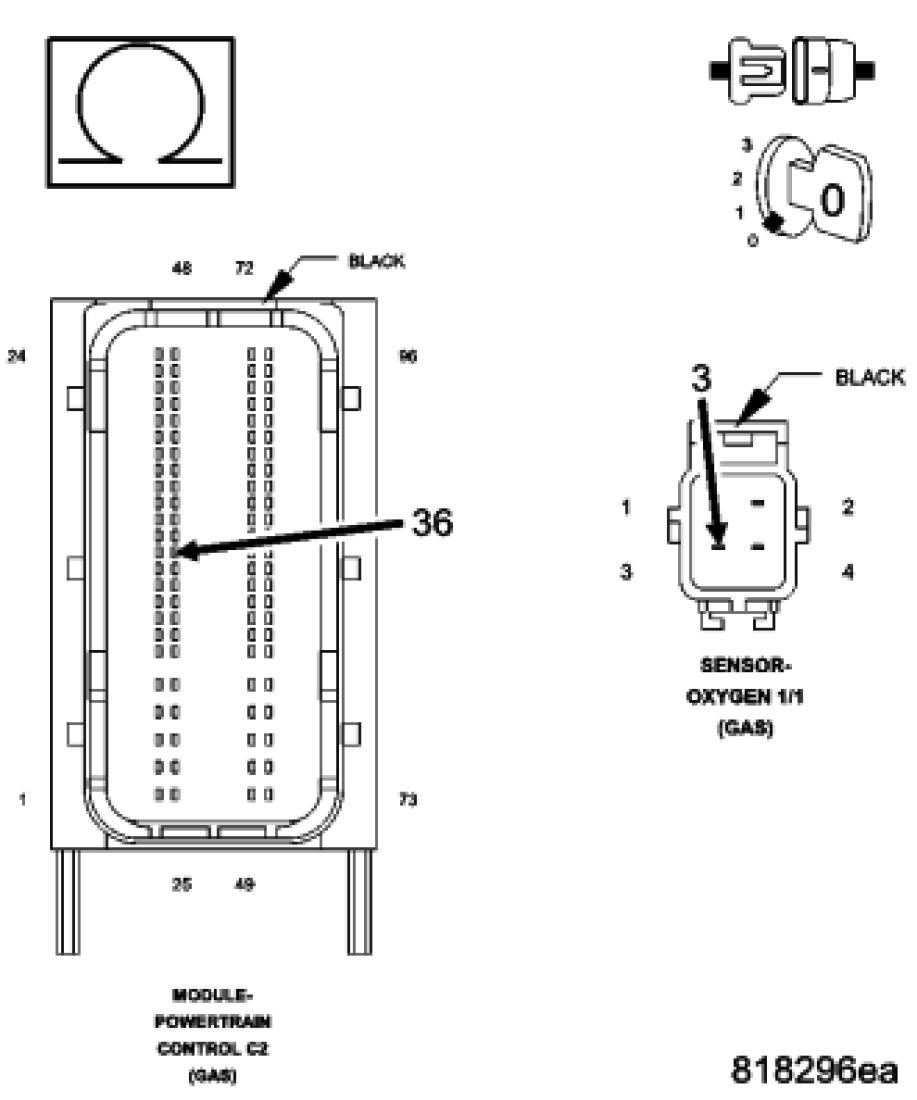

Measure the resistance of the (K41) O2 1/1 Signal circuit between the Oxygen Sensor 1/1 harness connector to the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 7

No

- Repair the (K41) O2 1/1 Signal circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

7. (K902) O2 1/1 RETURN CIRCUIT OPEN OR HIGH RESISTANCE





Measure the resistance of the (K902) O2 1/1 Return circuit between the Oxygen Sensor 1/1 harness connector to the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

- Go to 8

No

- Repair the (K902) O2 1/1 Return circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

8. POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oxygen Sensor 1/1 and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the PCM Verification Test Ver. 1. PCM Verification Test

No

- Replace and program the Powertrain Control Module (PCM).
- Perform the PCM Verification Test Ver. 1. PCM Verification Test
