C1238

C1238-DRIVE TEST: UNSUCCESSFUL

For a complete wiring diagram Refer to Diagram/Electrical. Electrical Diagrams


- When Monitored:

During the Drive Test.

- Set Condition:

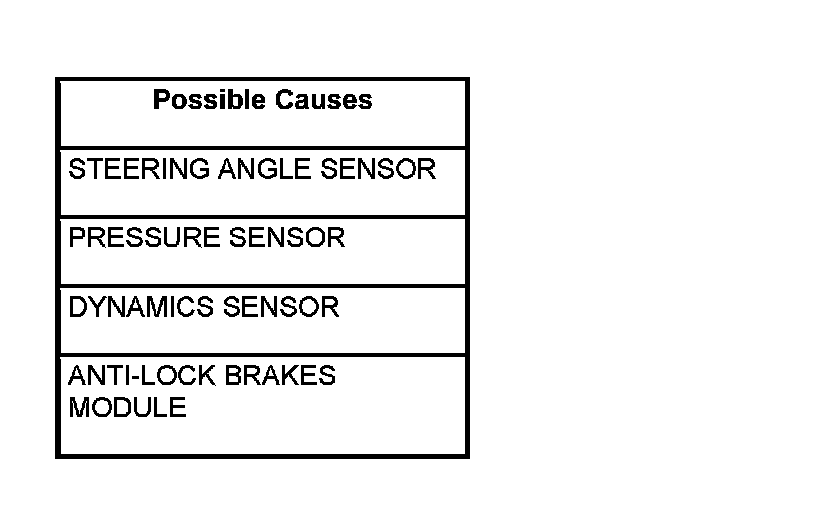

If the Anti-Lock Brakes Module detects a fault with the Steering Angle Sensor, the Pressure Sensor, or the Dynamics Sensor.








Diagnostic Test


1. DIAGNOSE & REPAIR ALL DTCs



Repair

- Diagnose and repair all DTCs.
