ABS

C1078-TIRE REVOLUTIONS RANGE PERFORMANCE

For a complete wiring diagram Refer to Diagram/Electrical. Electrical Diagrams


- When Monitored:

Continuous.

- Set Condition:

Programmed value for tire size is not within acceptable range.








Diagnostic Test

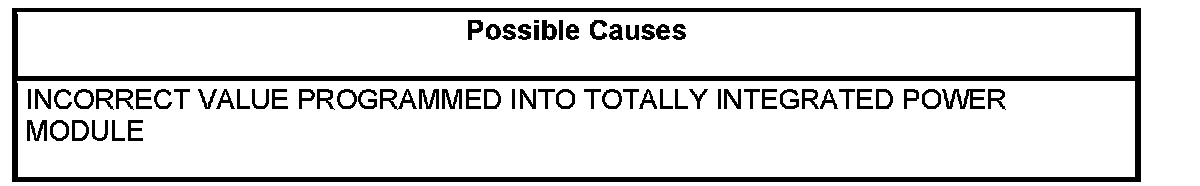

1. INCORRECT VALUE PROGRAMMED INTO TIPM






Verify the correct tire/wheel information is programmed in the TIPM.

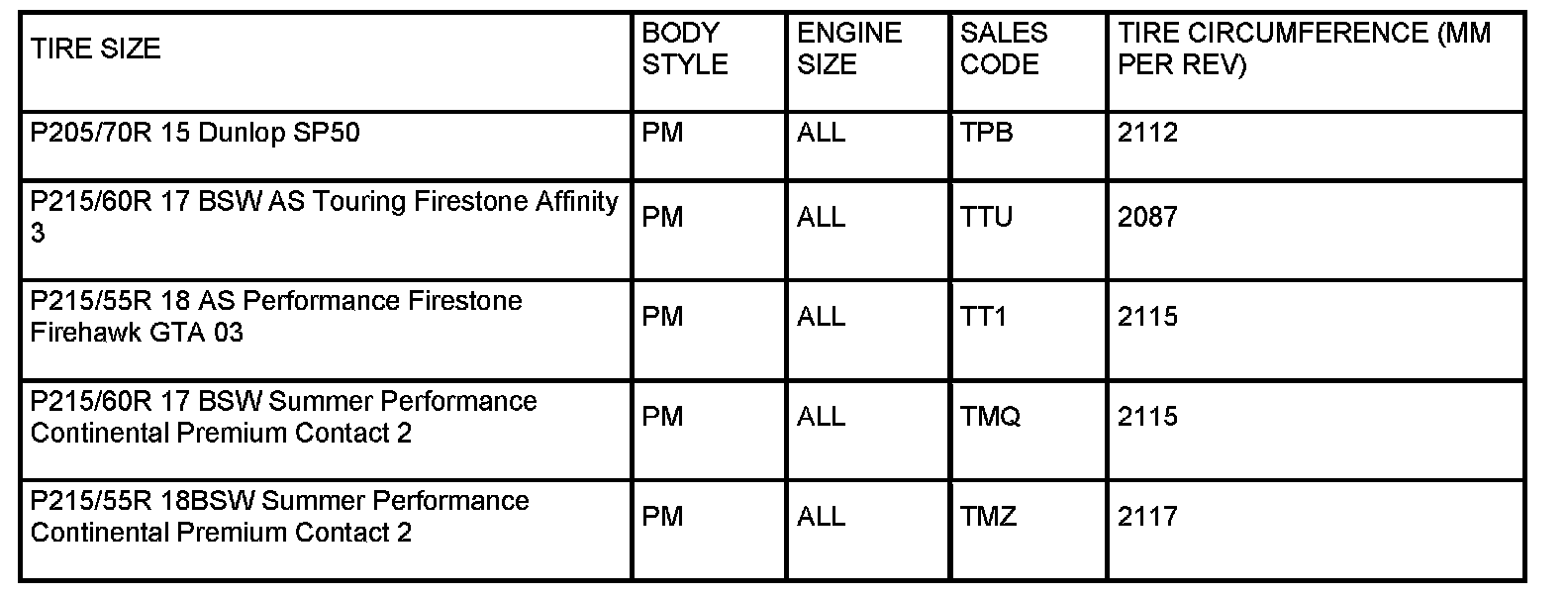

Is the correct value programmed in the TIPM according to the chart?

Yes

- Test complete.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Program the correct Tire/Wheel information in the TIPM.
- Perform ABS VERIFICATION TEST. ABS Verification Test
