B2325

B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT OPEN

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:
- With the ignition on.
- Set Condition:
- When the TIPM detects a short/HIGH condition.





Diagnostic Test

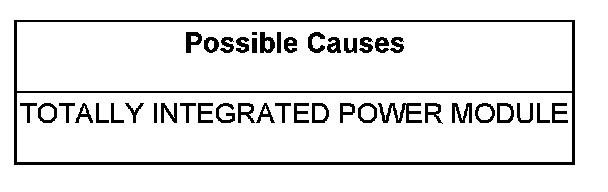

1. TOTALLY INTEGRATED POWER MODULE

Turn the ignition off.

Replace the Wiper ON/OFF relay with and known good relay.

With the scan tool, clear all TIPM DTC's.

Turn the Wipers ON then OFF.

With the scan tool, read the Wiper DTC's.

Does the scan tool read: B2325-HEADLAMP WASHER MOTOR CONTROL CIRCUIT OPEN?

Yes

- Replace the Integrated Power Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Test complete.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
