B223D

B223D-OCCUPANT CLASSIFICATION MODULE DTC PRESENT

- When Monitored:

With the ignition on.

- Set Condition:

This DTC will set if the ORC receives a bus message with the active OCM DTC Present bit set.





Diagnostic Test

1. VERIFY THAT DTC B223D-OCCUPANT CLASSIFICATION MODULE DTC IS ACTIVE

With the scan tool, read the ORC active DTCs.

Does the scan tool display active: B223D-OCCUPANT CLASSIFICATION MODULE?

Yes

- Go To2

No

- With the scan tool, perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test

2. ACTIVE DTC IN OCCUPANT CLASSIFICATION MODULE

With the scan tool, read the OCCUPANT CLASSIFICATION MODULE active DTC.

Are there any active DTC present?

Yes

- Refer to the symptom list for problems related to the OCM.

No

- Go To3

3. REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.

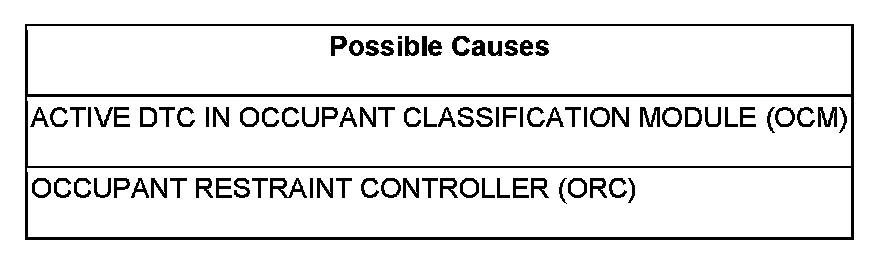

If there are no possible causes remaining, view repair.

Repair

- Replace the ORC.
- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
