Vehicle Theft Security

B222A-VEHICLE LINE MISMATCH

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Anytime the ignition key is in the ON position.

- Set Condition:

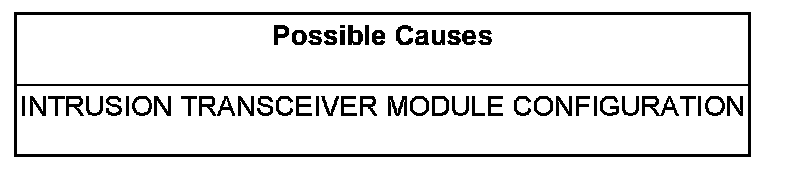

If the Intrusion Transceiver Module is not configured.





Diagnostic Test

1. CONFIGURE THE INTRUSION TRANSCEIVER MODULE

Using the scan tool under miscellaneous functions perform the initialization procedure for the Intrusion Transceiver Module.

With the scan tool, clear DTC(s).

Turn the ignition off and remove the key from the ignition.

Lock and close all doors to allow the VTSS to go from pre-arm to armed status and wait one minute.

Disarm the VTSS.

Using the scan tool, read DTC(s).

Does the DTC reset?

Yes

- Replace the Intrusion Transceiver Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Test complete.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
