Restraints

B2206-CURRENT VIN MISSING/MISMATCH





For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

During power-up, the Occupant Restraint Controller (ORC) and Occupant Classification Module (OCM) monitors the CAN bus for the VIN message.

- Set Condition:

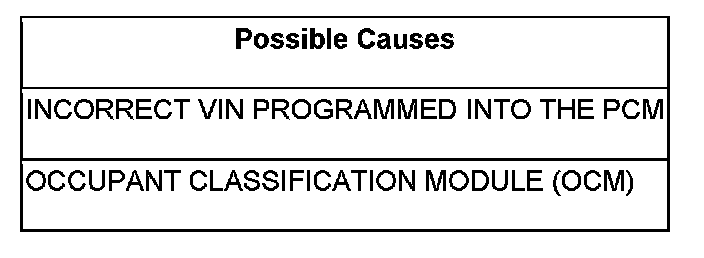

This DTC will set if the VIN information received from the Powertrain Control Module (PCM) is different from the stored VIN.





Diagnostic Test

1. CHECK FOR ACTIVE DTC

NOTE: Troubleshoot any Ignition, Battery, Seat Weight Sensor, or OCM Internal DTC BEFORE proceeding.

NOTE: Ensure that the battery is fully charged.

NOTE: This DTC cannot be cleared until the *OCM SYSTEM VERIFICATION TEST has been completed successfully.

With the scan tool, read DTC.

Select the module and DTC type.

OCM-Active

- Go To 2

OCM-Stored

- Erase code with scan tool, test complete.

2. CHECK THE VIN STORED IN THE PCM

With the scan tool, compare the VIN that is stored in the PCM to the VIN of the vehicle's VIN plate.

Does the VIN stored in the PCM match the vehicle's VIN?

Yes

- Go To 3

No

- Replace and Configure the Powertrain Control Module.
- Perform *(NGC) POWERTRAIN VERIFICATION TEST VER - 5. PCM Verification Test

Diagnostic Test

3. PERFORM THE OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST

NOTE: Ensure that the battery is fully charged.

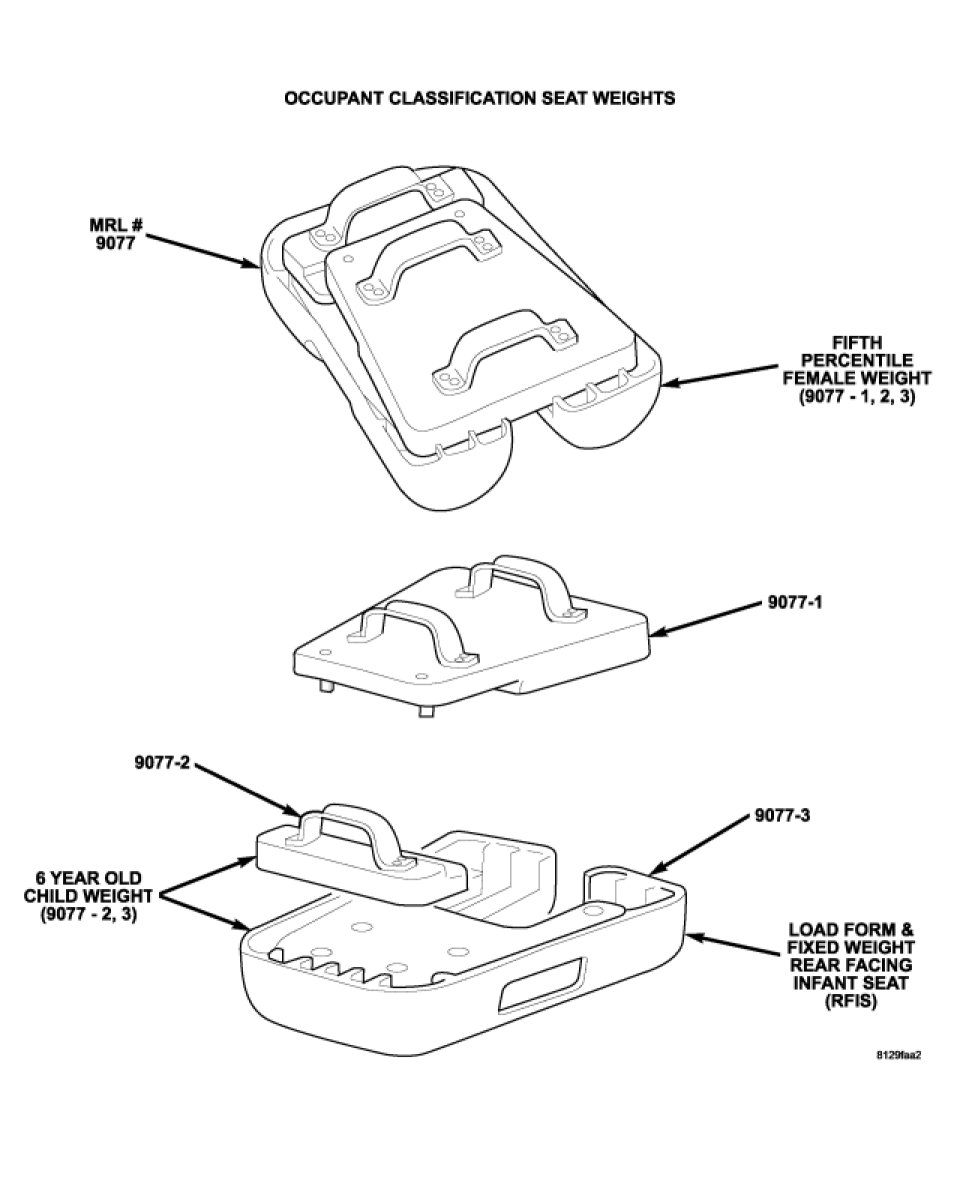

NOTE: The Occupant Classification Seat Weights 9077 are required to perform this test.

Verify that the passenger seat is empty.

Remove any special tools or jumper wires and reconnect all previously disconnected components - except the battery.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

NOTE: Failure to follow the test instructions or aborting the test will cause faults to set when performing the Occupant Classification Module System Verification Test. To prevent faults due to process errors: verify that all tests steps that led you here were performed as directed; verify that the ignition is in run; wait 30 seconds after changing the seat weight before proceeding to allow the system to stabilize; only press scan tool buttons when directed to do so; and perform the Occupant Classification Module System Verification Test to completion.

With the scan tool in OCM, select More Options, select System Tests, and select Occupant Classification Module System Verification Test. Run the test by following the instructions displayed on the scan tool. When the test is complete, wait two minutes, and then proceed as follows.

With the scan tool, read OCM DTC.

Does the scan tool display any active: B2206-CURRENT VIN MISSING/MISMATCH DTC?

Yes

- Go To 4

No

- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test

4. PERFORM OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Verify that the passenger seat is empty.

Verify that all of the Seat Weight Sensor mounting screws are tightened to torque specification.

NOTE: Failure to follow the test instructions or aborting the test will cause faults to set when performing the Occupant Classification Module System Verification Test. To prevent faults due to process errors: verify that all tests steps that led you here were performed as directed; verify that the ignition is in run; Wait 30 seconds after changing the seat weight before proceeding to allow the system to stabilize; only press scan tool buttons when directed to do so; and perform the Occupant Classification Module System Verification Test to completion.

To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool in OCM, select More Options, select System Tests, and select Occupant Classification Module System Verification Test. Run the test by following the instructions displayed on the scan tool. When the test is complete, proceed as follows.

With the scan tool, read OCM DTC.

Does the scan tool display active: B2206-CURRENT VIN MISSING/MISMATCH?

Yes

- To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
- Replace the OCM.
- Replace the Service Kit if a seat from another vehicle was installed.
- Perform *OCM SYSTEM VERIFICATION TEST. Occupant Classification Module (OCM) System Verification Test

No - But Other DTC Present

- Diagnose and repair the other DTC.

No - No Active DTC Present

- Erase all codes before returning vehicle to customer.
