B1BBD

B1BBD-OCM CURRENT CONFIGURATION TABLE UNPROGRAMMED

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

If the Configuration Table is not programmed at the supplier or when the checksum is invalid.

- Set Condition:

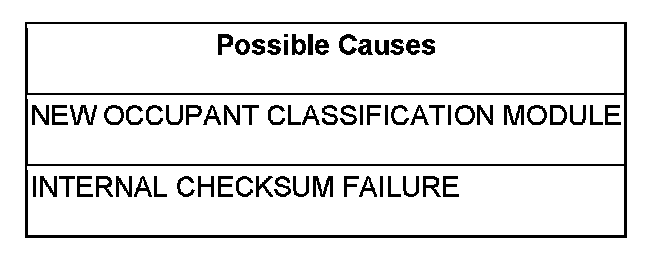

This DTC will set if the Occupant Classification Module (OCM) was received unprogrammed from the supplier, the vehicle line was not identified correctly or if the flash procedure was not completed successfully





Diagnostic Test

1. MODULE CONFIGURATION

Does the scan tool display B1BBD-OCM CURRENT CONFIGURATION TABLE UNPROGRAMMED?

Yes

- Perform the B1BA7-OCS VERIFICATION REQUIRED diagnostic procedure. B1BA7

No

-
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

- Replace the OCM.
- With the scan tool, perform *OCM SYSTEM VERIFICATION TEST. Occupant Classification Module (OCM) System Verification Test
