B1BA5

B1BA5-AIRBAG SQUIB CONFIGURATION MISMATCH

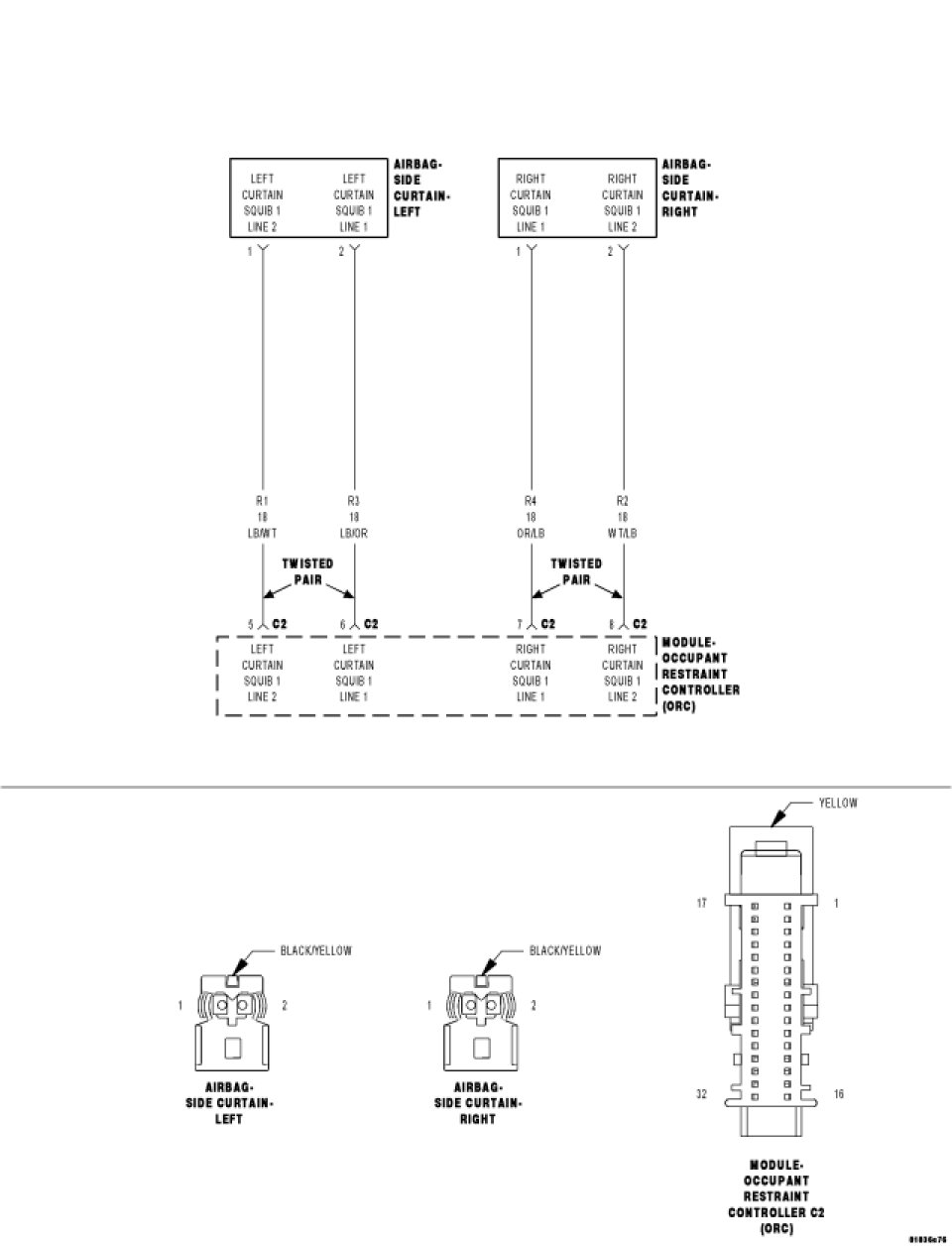

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

If an Occupant Restraint Controller (ORC) is configured for vehicles without Driver Kneeblocker, Side Airbags, or Thorax (Seat Airbags) Airbags and the vehicles has any of these installed, the DTC will be set active.





Diagnostic Test

1. VERIFY THAT DTC B1BA5 AIRBAG SQUIB CONFIGURATION MISMATCH IS ACTIVE

NOTE: Ensure the battery is fully charged.

Turn the ignition on.

With the scan tool, read ORC DTCs.

Does the scan tool display active: B1BA5-AIRBAG SQUIB CONFIGURATION MISMATCH?

Yes

- Go To 2

No

- Go To 4

2. CHECK ORC PART NUMBER

With the scan tool, select ECU View, select ORC, select ECU Details, and read the ORC part number.

Is the part number correct for the vehicle?

Yes

- Go To3

No

- Replace the ORC.
- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test

3. CHECK VIN WITH SCAN TOOL

NOTE: The PCM provides the VIN and the TIPM send the configuration message over the BUS.

With the scan tool, read the VIN.

Is the correct VIN displayed?

Yes

- Replace the Totally integrated Power Module (TIPM).
- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test

No

- Replace the Powertrain Control Module (PCM).
- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test

4. TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase all DTCs from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.

With the scan tool, monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the following steps.

Wiggle the wiring harness and connectors of the related airbag circuit or component.

If only stored codes return, continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the active DTC in question.

Does the scan tool display any ACTIVE DTCs?

Yes

- Select appropriate symptom from Symptom List.

No

- No problem found at this time. Erase all codes before returning vehicle to customer.
