B1BA4

B1BA4-PASSENGER SEAT TRACK POSITION SENSOR (OCM)





- When Monitored:

With the ignition on and bus communication with the Occupant Classification Module (OCM).

- Set Condition:

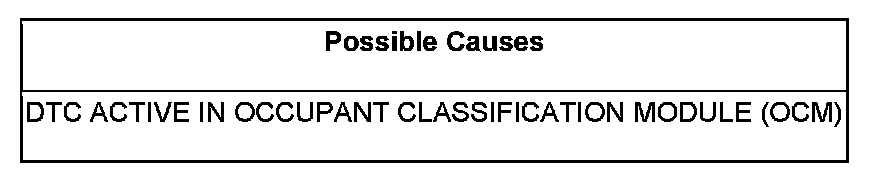

This ORC DTC will set if the Occupant Classification Module (OCM) sends a Passenger Seat Track Sensor DTC active message to the ORC.





Diagnostic Test

1. VERIFY ACTIVE OCM SEAT TRACK POSITION SENSOR DTC

With the scan tool, read the OCCUPANT CLASSIFICATION MODULE (OCM) active DTCs.

Does the scan tool display an active OCM Seat Track Position Sensor DTC?

Yes

- Perform the appropriate Diagnostic Trouble Code.

No

- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1. Airbag System Verification Test
