B1B8F




B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN

For a complete wiring diagram Refer to Diagrams/Electrical

- When Monitored:
While the CAN bus ignition status is in IGN_RUN and the module is configured for a Seat Track Position Sensor, the module checks the sensor input current ranges.

- Set Condition:
This DTC may set when the module detects that the sensor input current is below 1 mA.

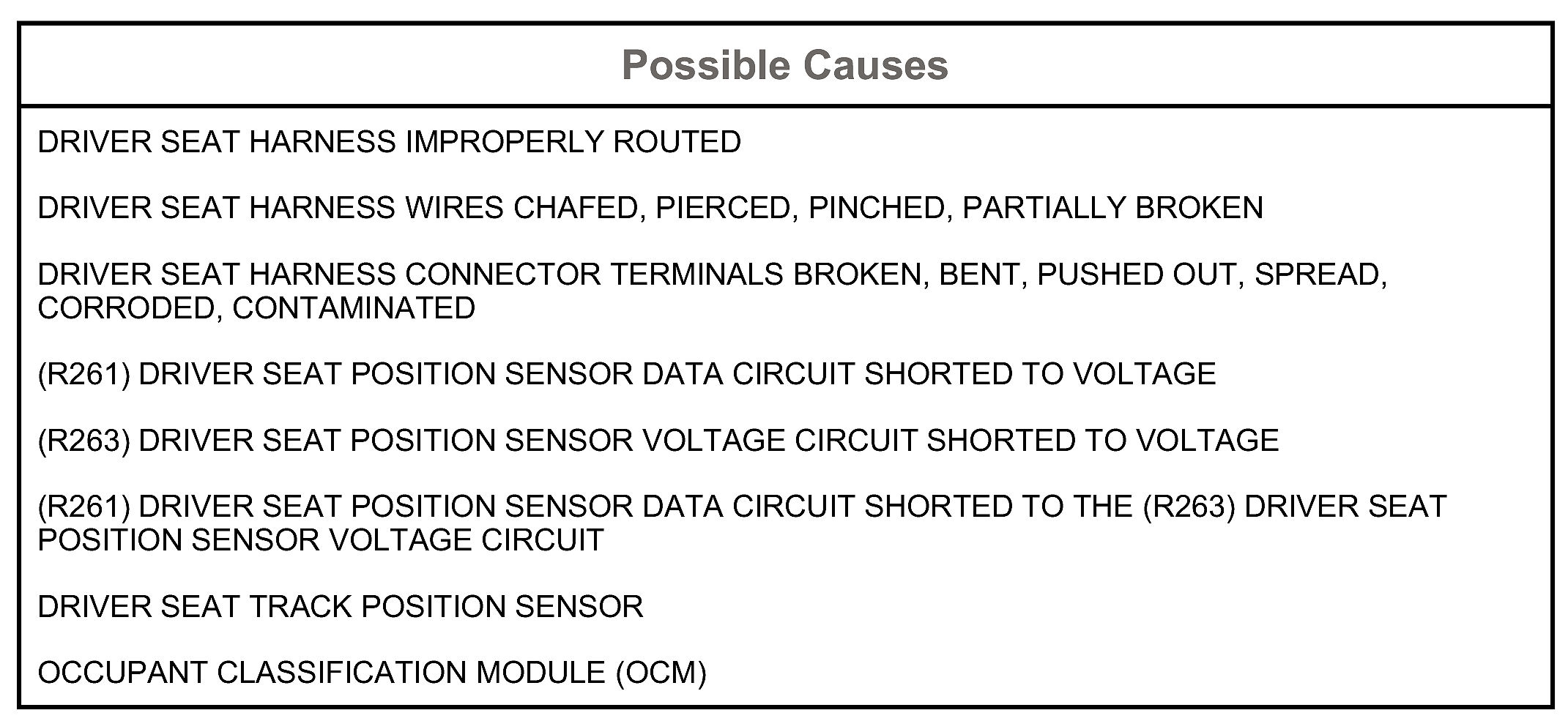

Possible Causes:






1. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT CLASSIFICATION MODULE (OCM)

1. With the scan tool, read Occupant Classification Module (OCM) DTCs.

Does the scan tool display any active DTCs relating to internal faults. ignition faults. or battery faults?

Yes

- Perform the appropriate diagnostic procedure.

No

- Go To 2

2. VERIFY THAT DTC B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN IS ACTIVE

Does the scan tool display active: B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN?

Yes

- Go To 3

No

- Go To 8

3. INSPECT DRIVER SEAT HARNESS WIRES AND CONNECTORS

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Using the wiring diagram/schematic as a guide, inspect the Driver Seat Harness wiring and connectors. Look for chafed pierced pinched or partially broken wires and broken bent pushed out spread corroded or contaminated terminals.

Are any of these conditions present?

Yes

- Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist
- Replace the Driver Seat Harness in accordance with the Service Information.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test

No

- Go To 4

4. VERIFY THAT DRIVER SEAT HARNESS IS ROUTED CORRECTLY

1. Verify that the Driver Seat Harness is routed correctly.

Is the Driver Seat Harness routed correctly?

Yes

- Go To 5

No

- Reroute the Driver Seat Harness as necessary.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test

5. CHECK FOR DTC B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN WITH DRIVER SEAT TRACK POSITION SENSOR DISCONNECTED

WARNING: Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the Driver Seat Track Position Sensor harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

2. Wait two minutes, and then with the scan tool, read OCM DTCs.

Does the scan tool display: B1B8F-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT OPEN?

Yes

- Go To 6

No

- WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Driver Seat Track Position Sensor in accordance with the service information.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test

6. CHECK (R261) DRIVER SEAT POSITION SENSOR DATA CIRCUIT AND (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT FOR A SHORT TO VOLTAGE







WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Disconnect the OCM C1 harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

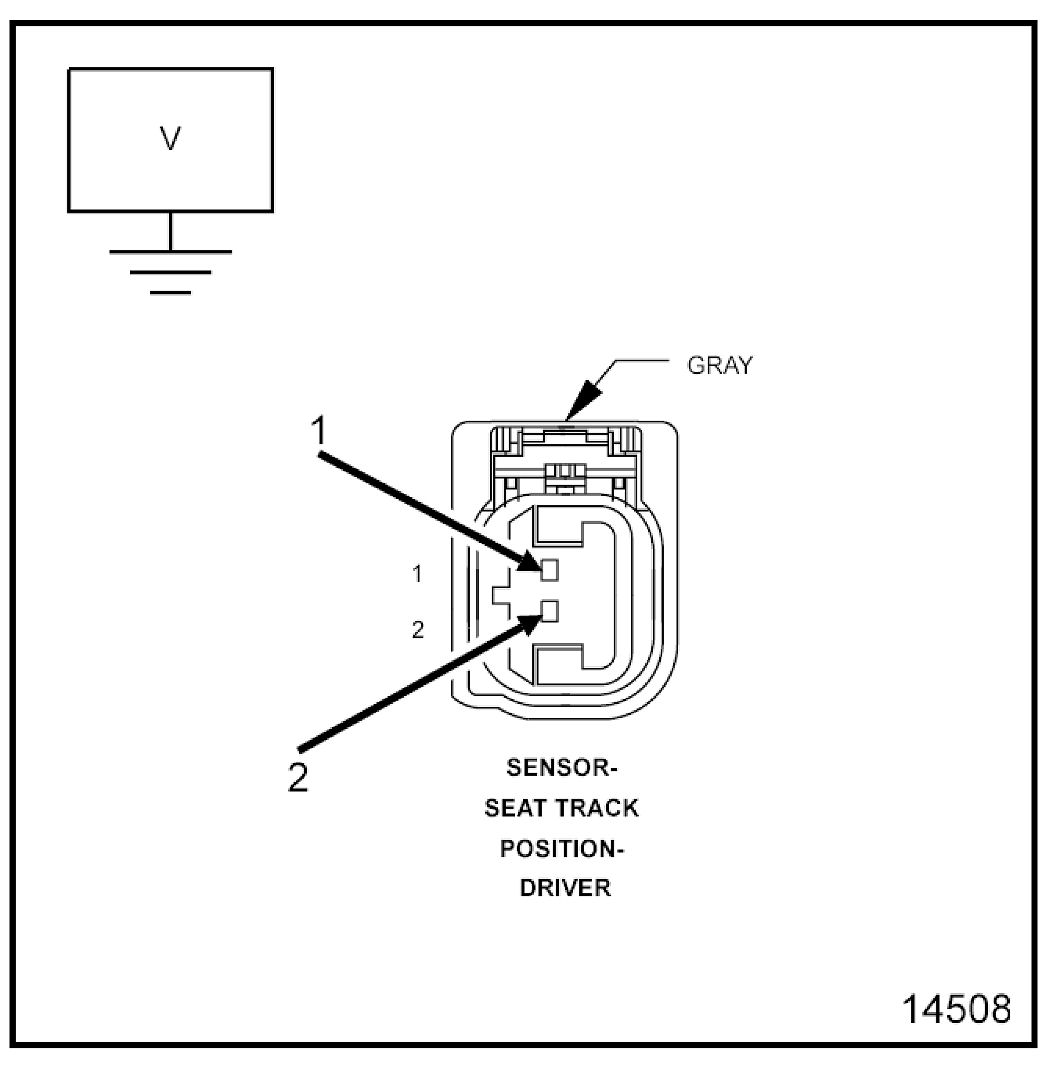

2. Measure the voltage of the (R261) Driver Seat Position Sensor Data circuit between the Driver Seat Track Position Sensor connector and ground.
3. Measure the voltage of the (R263) Driver Seat Position Sensor Voltage circuit between the Driver Seat Track Position Sensor connector and ground.

Is the voltage above 0.2 volt on either circuit?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist.
- WARNING:Turn the ignition off disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.
- Replace the Driver Seat Harness in accordance with the Service Information.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test

No

- Go To 7

7. CHECK (R261) DRIVER SEAT POSITION SENSOR DATA CIRCUIT FOR A SHORT TO (R263) DRIVER SEAT POSITION SENSOR VOLTAGE CIRCUIT

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

1. Measure the resistance between the (R261) Driver Seat Position Sensor Data circuit and the (R263) Driver Seat Position Sensor Voltage circuit in the Driver Seat Track Position Sensor harness connector.

Is the resistance below 10k ohms?

Yes

- NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if any of these conditions exist
- Replace the Driver Seat Harness in accordance with the service information.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test

No

- Replace the OCM in accordance with the Service information.
- Perform the AIRBAG SYSTEM VERIFICATION TEST. Airbag System Verification Test

8. TEST FOR AN INTERMITTENT CONDITION

1. With the scan tool, record and erase all DTCs from the OCM.
2. If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

3. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
4. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
5. The following additional checks may assist you in identifying a possible intermittent problem.
6. Reconnect any disconnected components and harness connector.

WARNING: Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

7. With the scan tool monitor active codes as you work through the following steps.

WARNING: Maintain a safe distance from all airbags while performing the following steps. Failure to follow these instructions may result in possible serious or fatal injury.

8. Wiggle the wiring harness and connectors of the related airbag circuit or component.
9. If only stored codes return continue the test until the problem area has been isolated.
10. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

- Perform the appropriate diagnostic procedure.

No

- No problem found at this time. Erase all codes before returning vehicle to customer.
