B1420

B1420-AUDIO CASSETTE ERROR/INOPERABLE CASSETTE

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Continuously with the ignition on and the Radio Cassette player turned on.

- Set Condition:

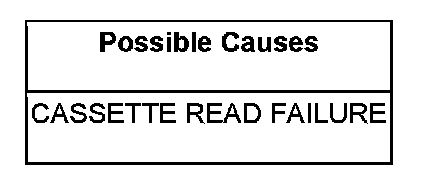

The code will set when a damaged Cassette is placed in the Cassette Player.





Diagnostic Test

1. RADIO

Replace the problem Cassette with a good, clean, undamaged, cassette.

Turn the Radio cassette player on.

With the scan tool, read DTC's.

Does the scan tool display active: B1420-AUDIO CASSETTE ERROR/INOPERABLE CASSETTE?

Yes

- Eject the inoperative cassette and replace the Radio/Cassette Player.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Test Complete.
