B1002

B1002-A/C SWITCH REQUEST INPUT CIRCUIT HIGH (CCN)

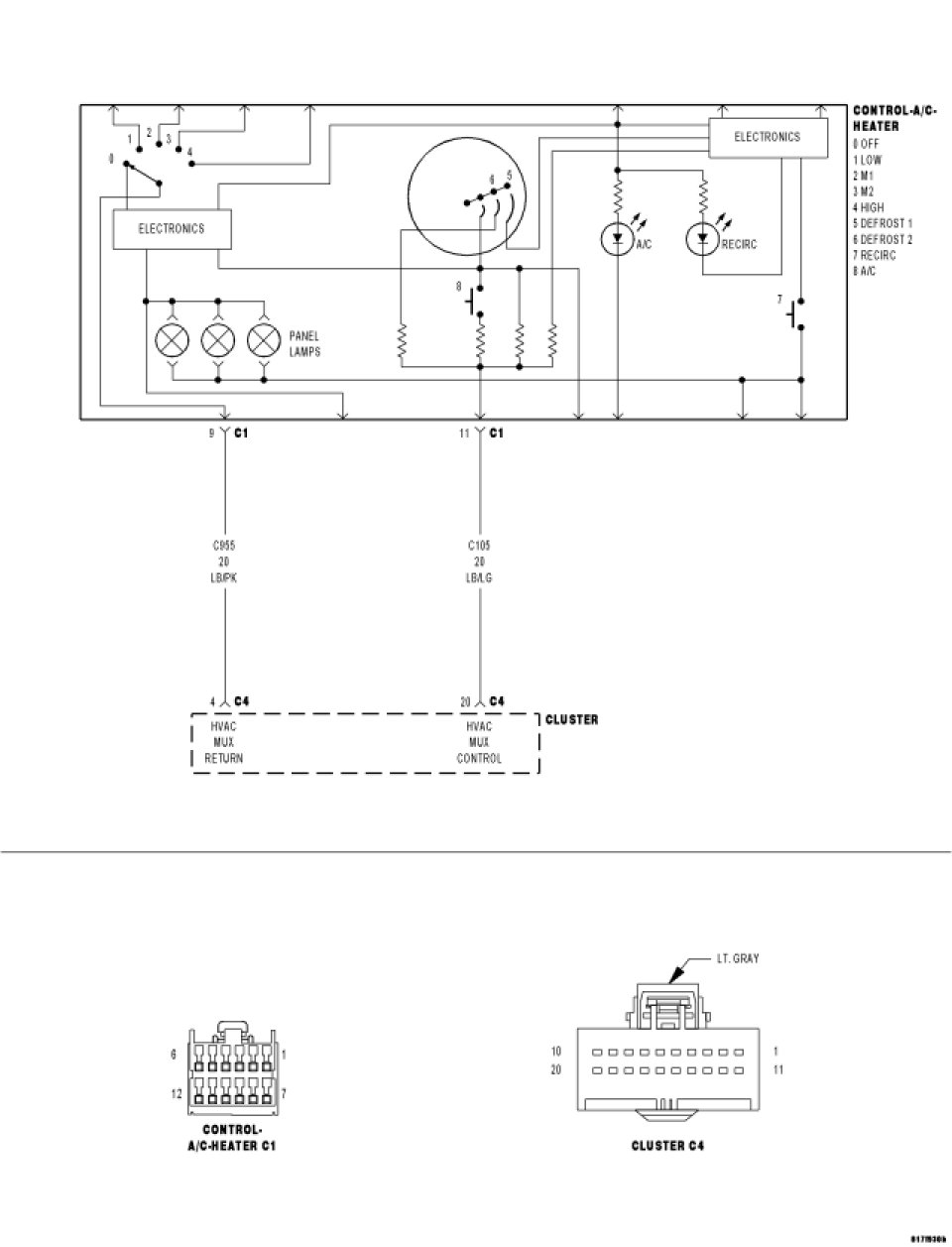

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

If the Instrument Cluster (CCN) detects voltage above 4.5 volts for 10 seconds on the (C105) HVAC MUX Control circuit.





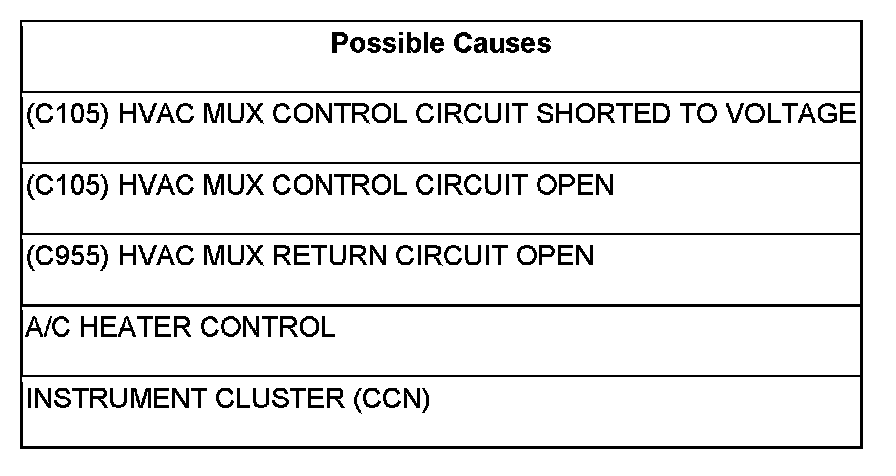

Diagnostic Test

1. VERIFY DTC B1002-A/C SWITCH REQUEST INPUT CIRCUIT HIGH IS ACTIVE

Turn the ignition on.

With the scan tool, erase DTCs.

Turn the ignition off,wait 10 seconds, and turn the ignition on.

With the scan tool, read DTCs.

Does the scan tool display active: B1002-A/C SWITCH REQUEST INPUT CIRCUIT HIGH?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

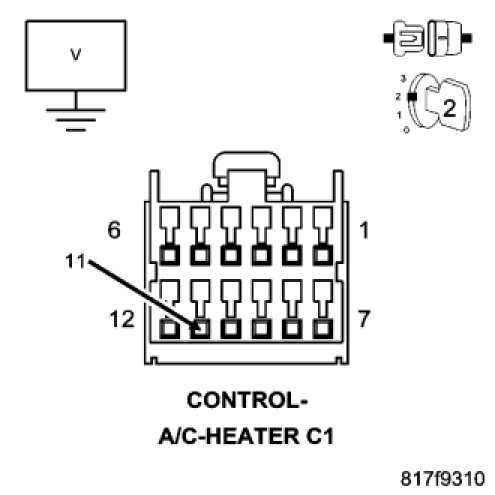

2. CHECK THE (C105) HVAC MUX CONTROL CIRCUIT VOLTAGE AT A/C HEATER CONTROL C1 HARNESS CONNECTOR





Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

Turn the ignition on.

Measure the voltage of the (C105) HVAC MUX Control circuit.

What is the voltage?

Below 4.8 Volts

- Go To 3

4.8 to 5.2 Volts

- Go To 4

Above 5.2 Volts

- Go To 6

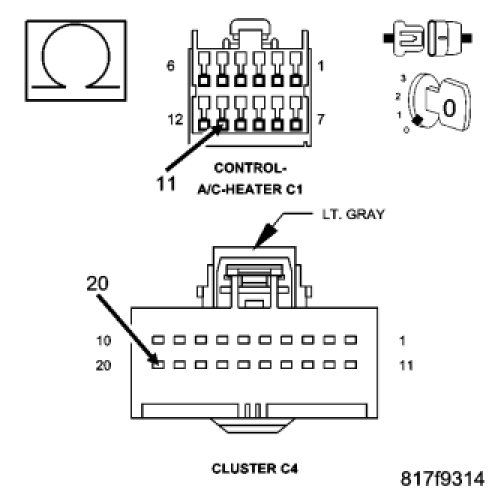

3. CHECK THE (C105) HVAC MUX CONTROL CIRCUIT FOR AN OPEN





Turn the ignition off.

Disconnect the Instrument Cluster (CCN) C4 harness connector.

Measure the resistance of the (C105) HVAC MUX Control circuit between the A/C Heater Control C1 harness connector and the Instrument Cluster C4 harness connector.

Does the ohm meter read open circuit?

Yes

- Repair the (C105) HVAC MUX Control circuit for an open.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Instrument Cluster (CCN).
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

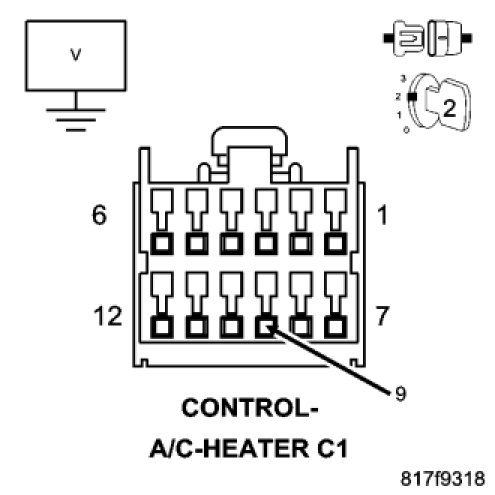

4. CHECK THE (C955) HVAC MUX RETURN CIRCUIT OPERATION





Turn the ignition on.

Using a volt meter, measure the voltage of the (C955) HVAC MUX Return circuit in the A/C Heater Control C1 harness connector.

Does the volt meter read above 4.5 volts?

Yes

- Replace the A/C-Heater Control.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 5

5. CHECK THE (C955) HVAC MUX RETURN CIRCUIT FOR AN OPEN





Measure the resistance of the (C955) HVAC MUX Return circuit between the A/C Heater Control C1 harness connector and the Instrument Cluster C4 harness connector.

Does the ohm meter read open circuit?

Yes

- Repair the (C955) HVAC MUX Return circuit for an open.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Instrument Cluster.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

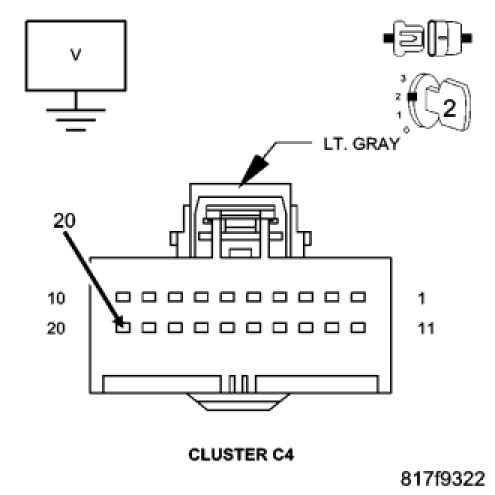

6. CHECK THE (C105) HVAC MUX CONTROL CIRCUIT FOR A SHORT TO VOLTAGE





Turn the ignition off.

Disconnect the Instrument Cluster C4 harness connector.

Turn the ignition on.

Measure the voltage of the (C105) HVAC MUX Control circuit.

Is the voltage above 1.0 volts?

Yes

- Repair the (C105) HVAC MUX Control circuit for a short to voltage.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Instrument Cluster (CCN).
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
