System Specifications

General Specifications:

General Specifications

Cylinder Block:

Cylinder Block

Pistons:

Pistons

Piston Rings:

Piston Rings

Connecting Rod:

Connecting Rod

Crankshaft:

Crankshaft

Connecting Rod Cap-Bolts 20 Nm + 90� (15 ft. lbs.) + 90�

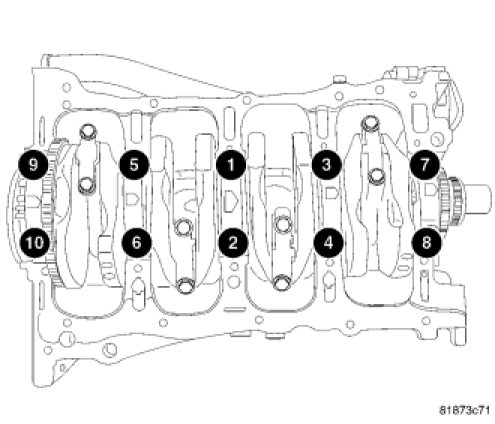

Crankshaft Main Bearing Cap-Bolts 27 Nm + 45� (20 ft. lbs.) + 45�

Crankshaft Damper-Bolt 210 Nm 155 (ft. lbs.)

Surface Variation - Head to Block
Deck surface must be within service limit of 0.050 mm (0.002 in.)
