Installation






INSTALLATION

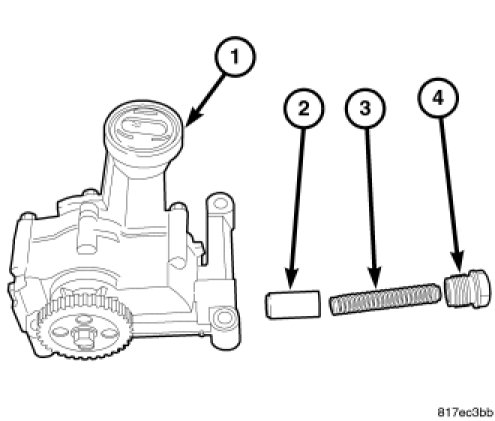

1. Lubricate valve (2) and pump (1) bore with clean engine oil.
2. Install valve (2) and spring (3).
3. Install cap (4) and tighten.
4. Install oil pan.
