Ladder Frame - Removal

REMOVAL




1. Remove oil pan.
2. Remove oil pump.
3. Remove ladder frame retaining bolts.

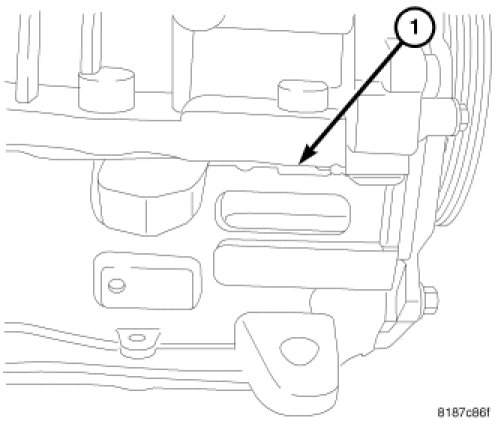

4. Remove ladder frame using pry point cast in the rear of the block (1).

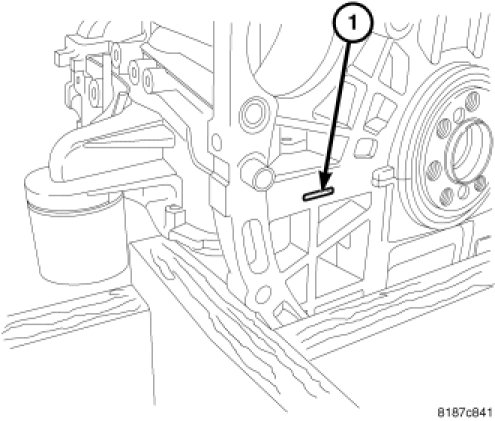

5. To assist in removing the ladder frame another (1) pry point cast in the right side of the block.
