Fluid Level Check
FLUIDSTANDARD PROCEDURE - FLUID LEVEL CHECK
NOTE: For proper fluid level check intervals.
The fluid required in this transaxle is Mopar (R) ATF+4 along with 0.12 L (4 oz.) Mopar Limited Slip Additive/Friction Modifier (P/N 04318060AB). Use of substitute fluids may result in improper transaxle operation and/or failure.
1. Raise vehicle on hoist.

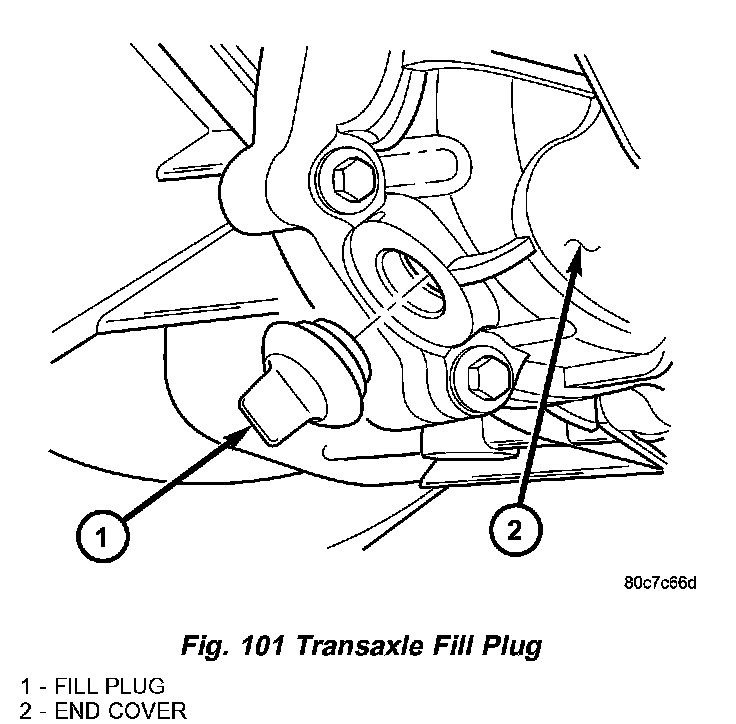

2. Remove transaxle fill plug (Fig. 101).
3. Inspect fluid level. Fluid should be within 3/16 inch below fill hole. Add Mopar (R) ATF+4 as necessary.
4. Install fill plug, ensuring it is properly seated.
5. Lower vehicle.
STANDARD PROCEDURE - FLUID DRAIN AND FILL
NOTE: For proper fluid change intervals.
The fluid required in this transaxle is Mopar ATF+4 along with 0.12 L (4 oz.) Mopar Limited Slip Additive/Friction Modifier (P/N 04318060AB). Use of substitute fluids may result in improper transaxle operation, noise and/or failure.
FLUID DRAIN
1. Raise vehicle on hoist.

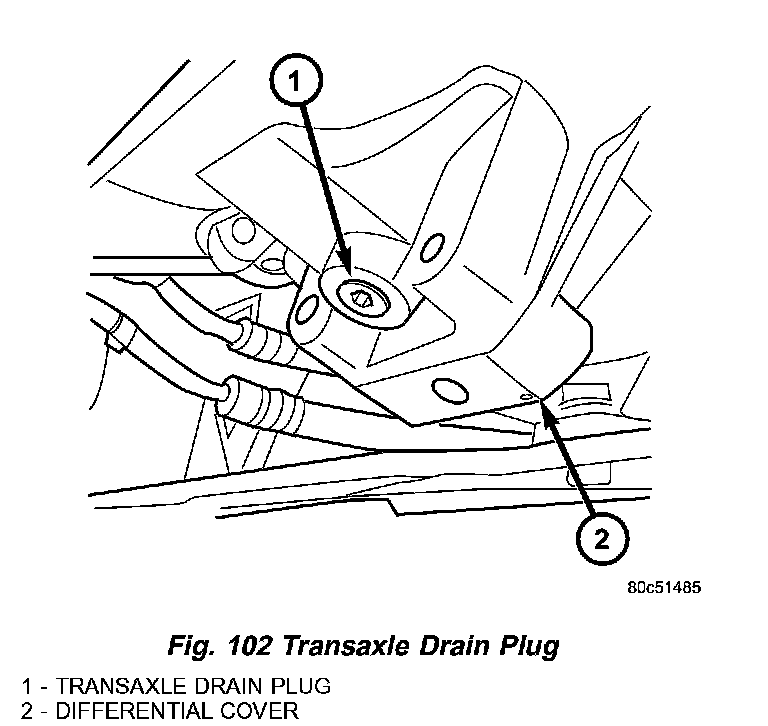

2. Remove transaxle drain plug (Fig. 102) and drain fluid into suitable container.
3. Install drain plug and torque to 23 Nm (17 ft. lbs.).
FLUID FILL
1. Remove transaxle fill plug (Fig. 103).
2. Add 0.12 L (4 oz.) Mopar (R) Limited Slip Additive/Friction Modifier and up to 2.3 - 2.5L (2.4 - 2.6 qts.) of Mopar (R) ATF+4 until fluid is within 3/16" below fill hole.
3. Install fill plug, ensuring it is properly seated.
4. Lower vehicle.
