Service Specifications
SPECIFICATIONS

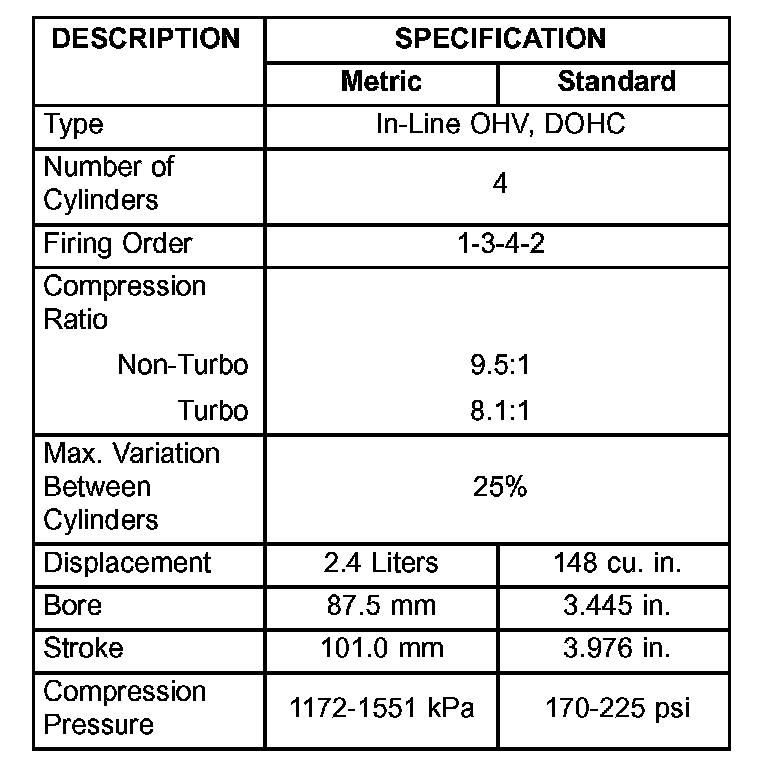

GENERAL SPECIFICATIONS

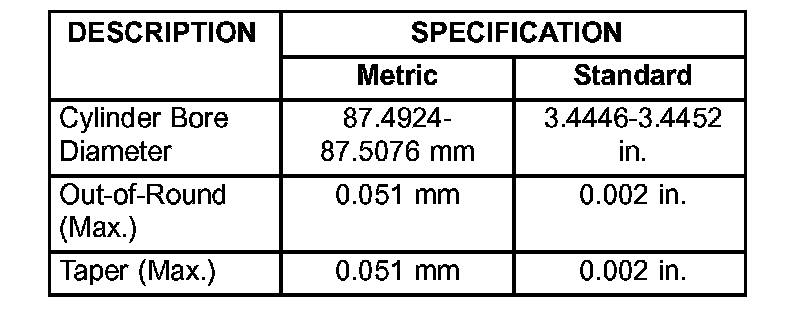

CYLINDER BLOCK DESCRIPTION SPECIFICATION

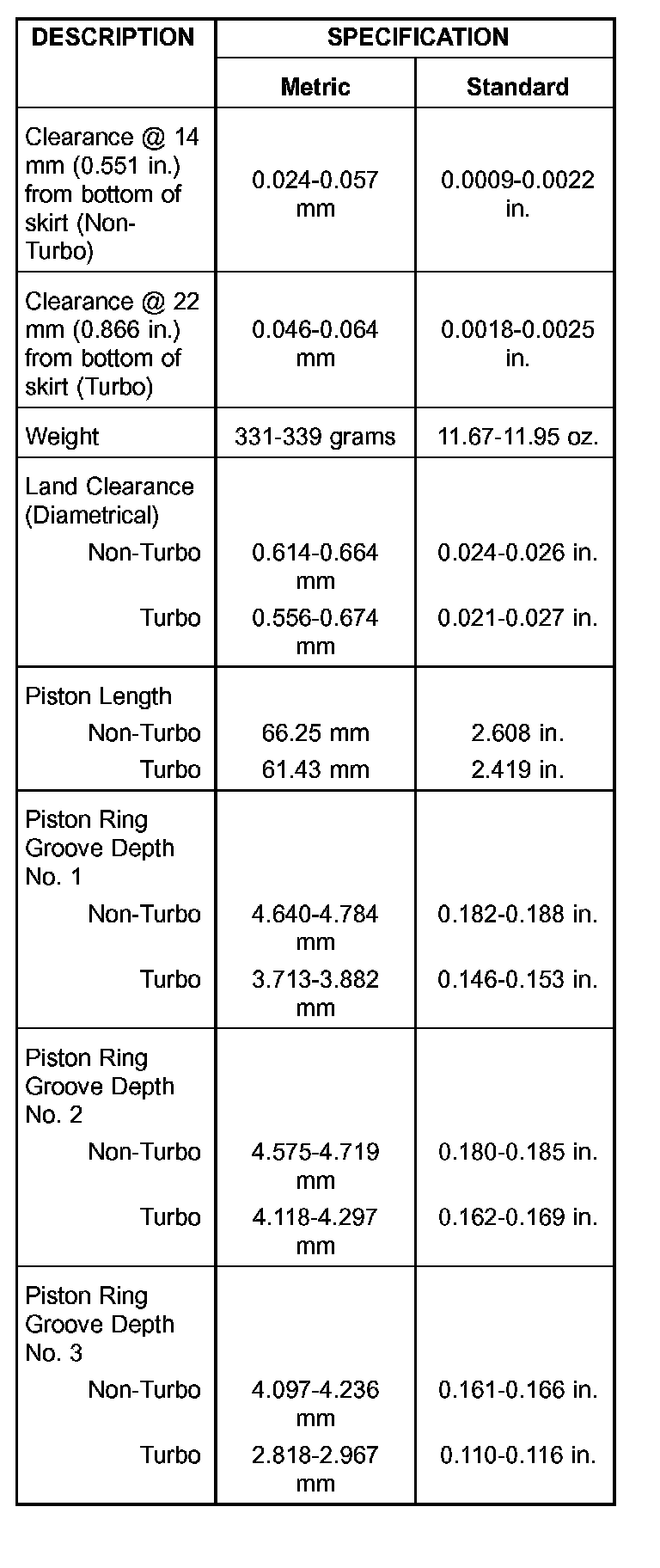

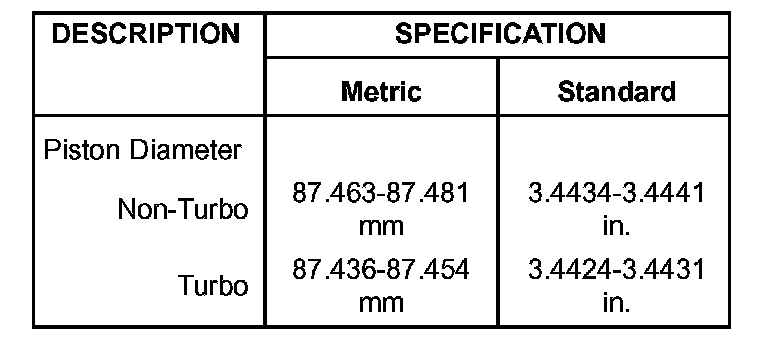

PISTONS DESCRIPTION SPECIFICATION

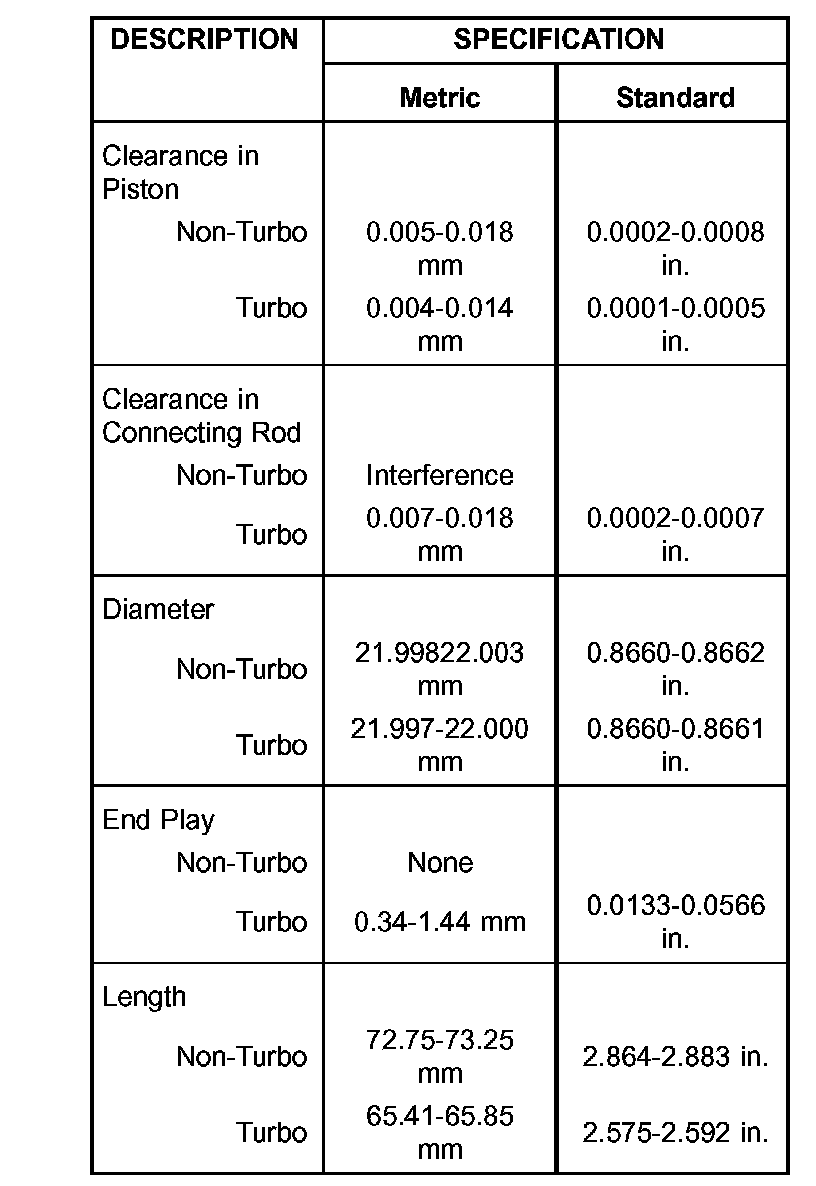

PISTON PINS

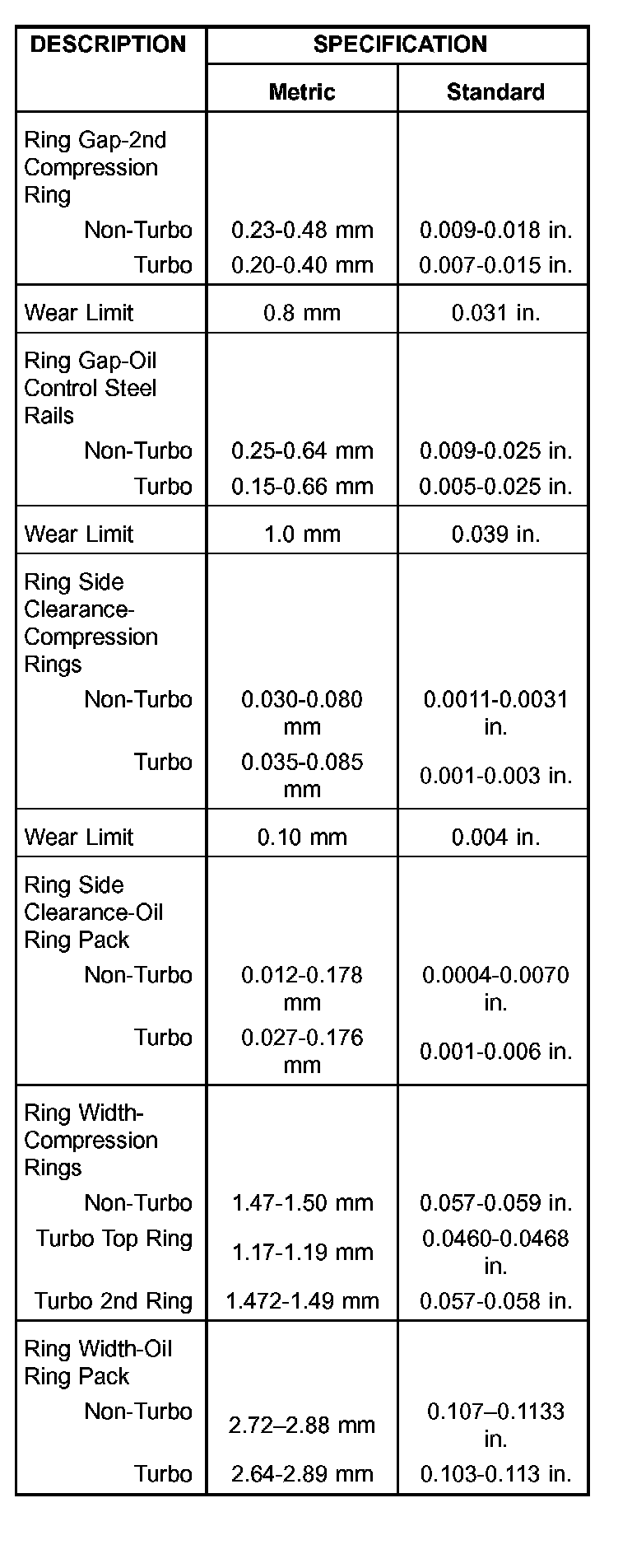

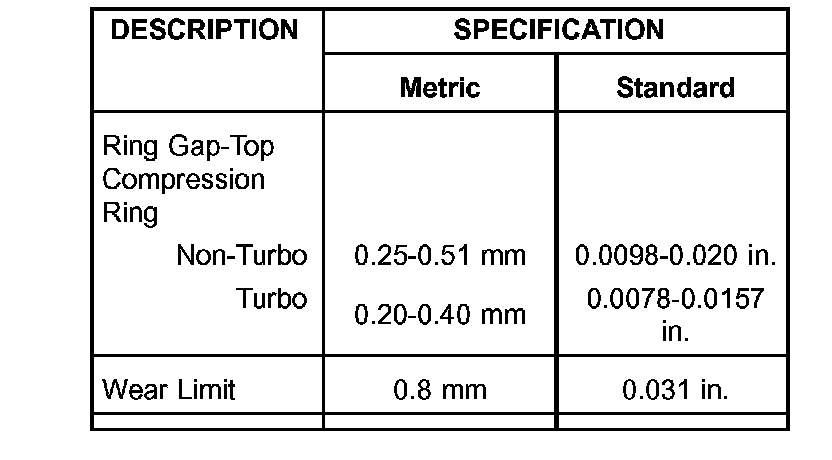

PISTON RINGS

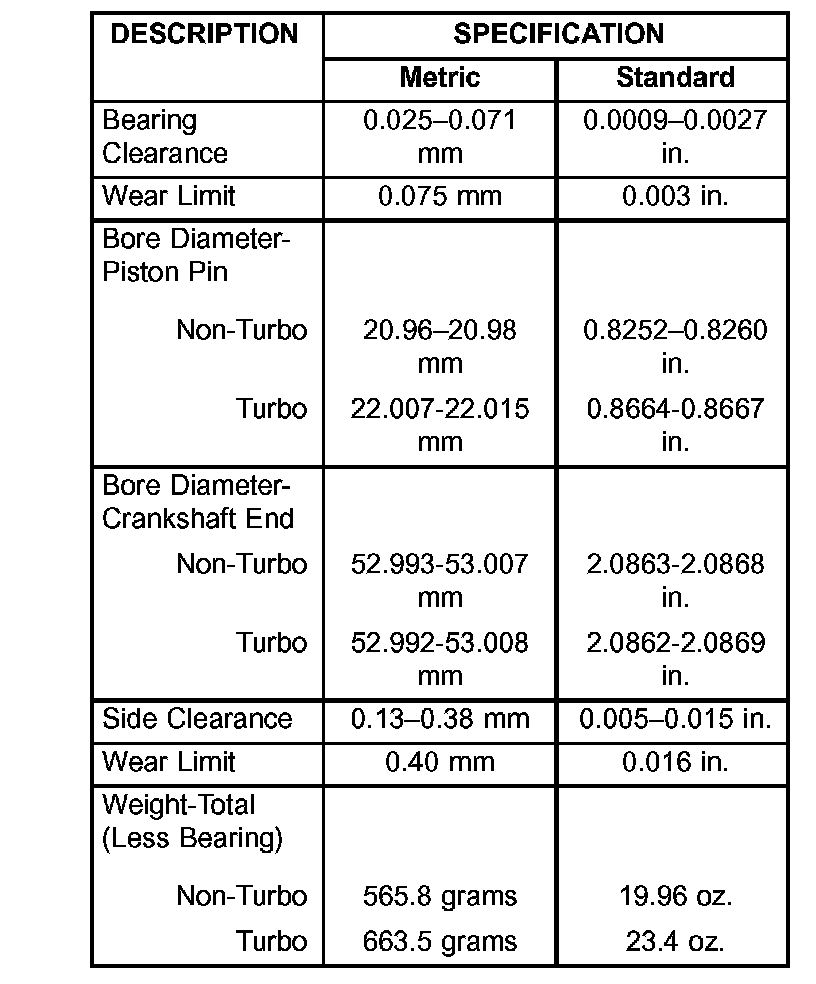

CONNECTING ROD

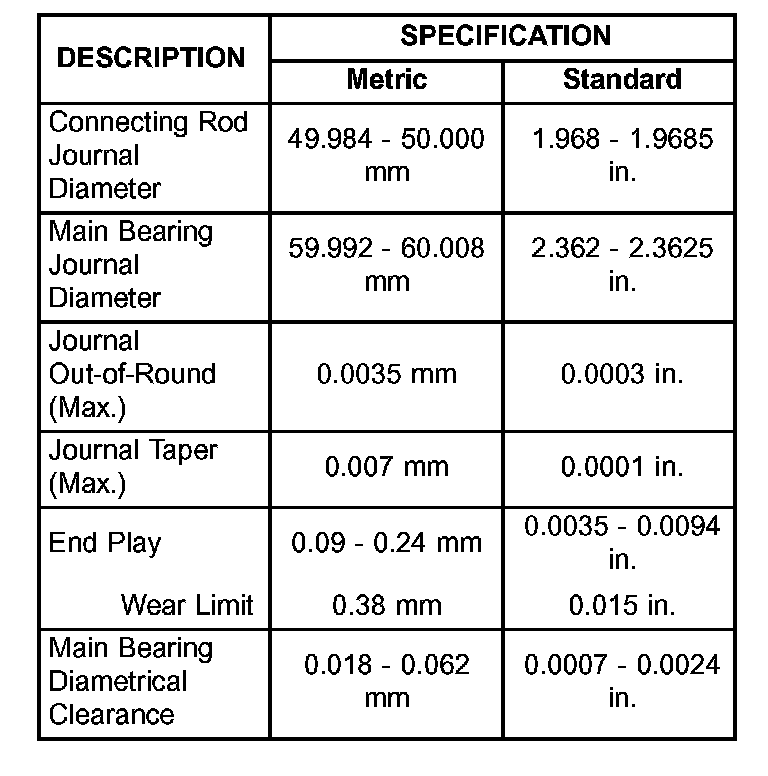

CRANKSHAFT

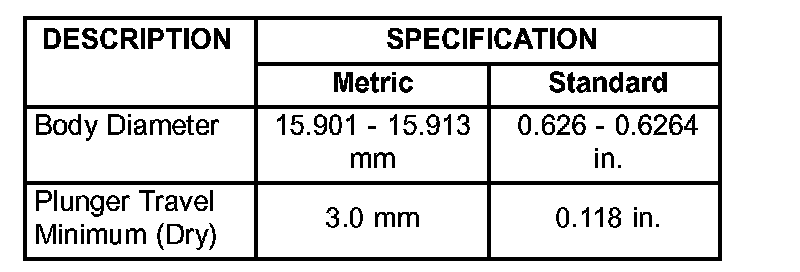

HYDRAULIC LASH ADJUSTER

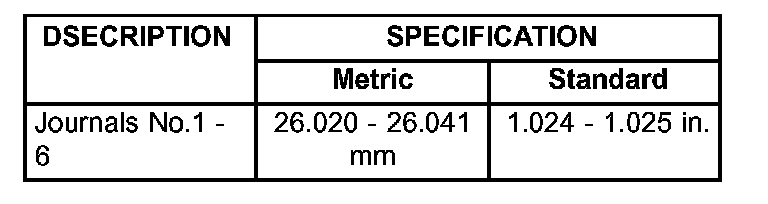

CYLINDER HEAD CAMSHAFT BEARING BORE

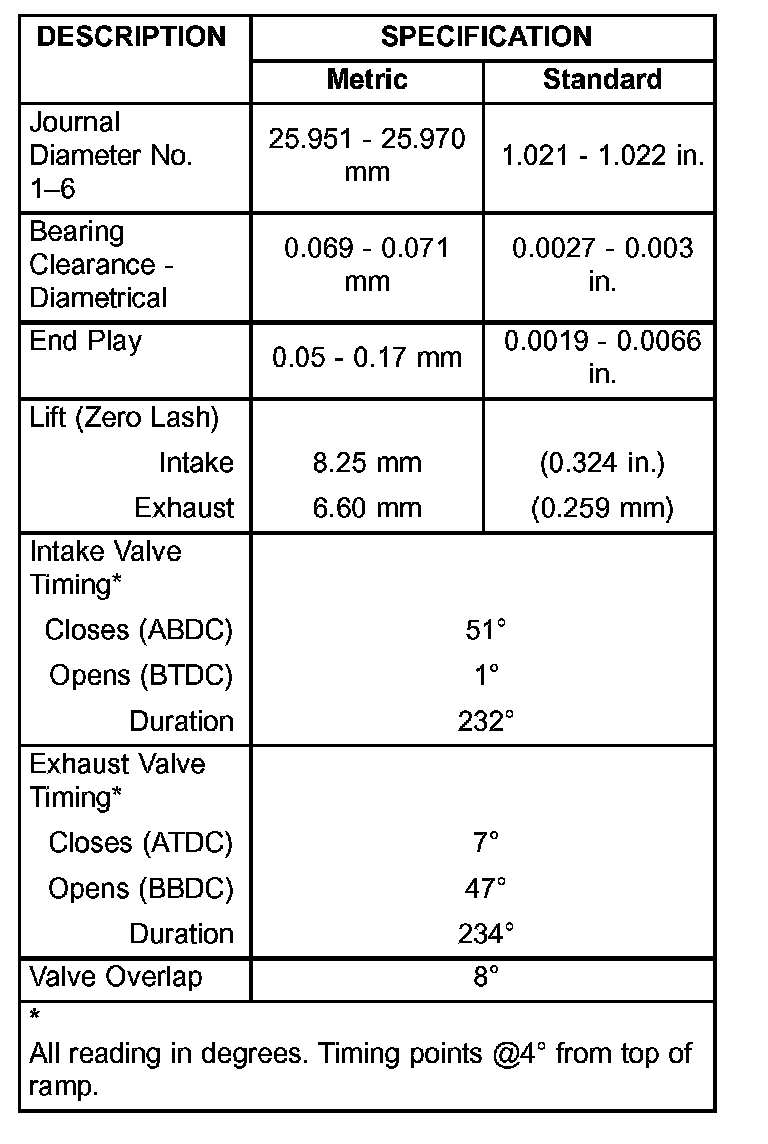

CAMSHAFT

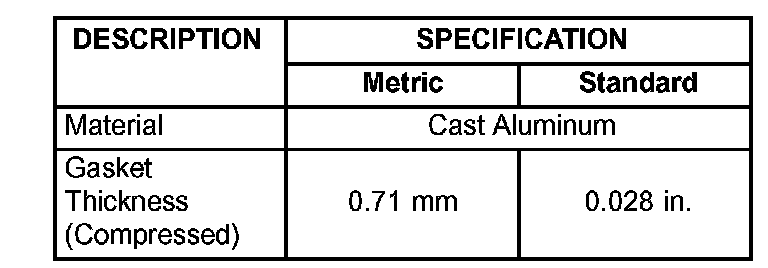

CYLINDER HEAD

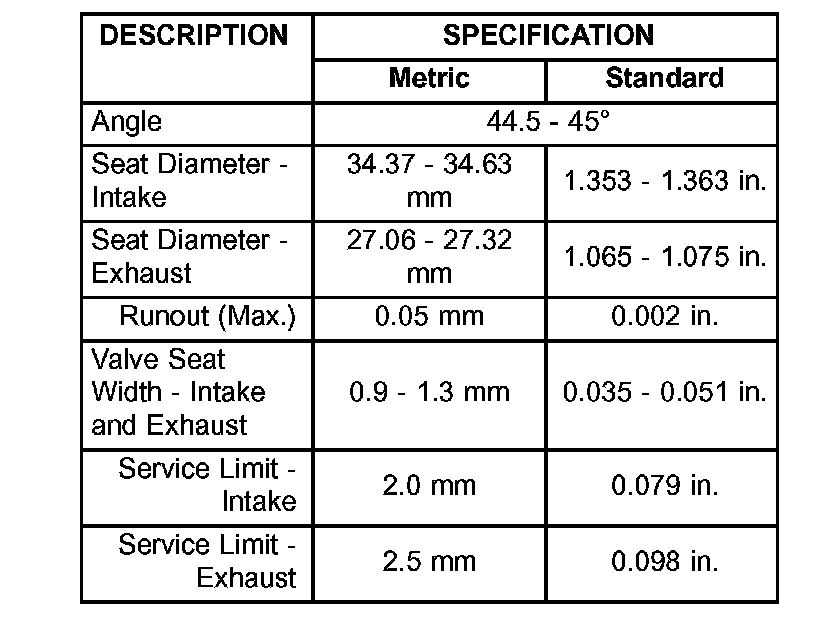

VALVE SEAT

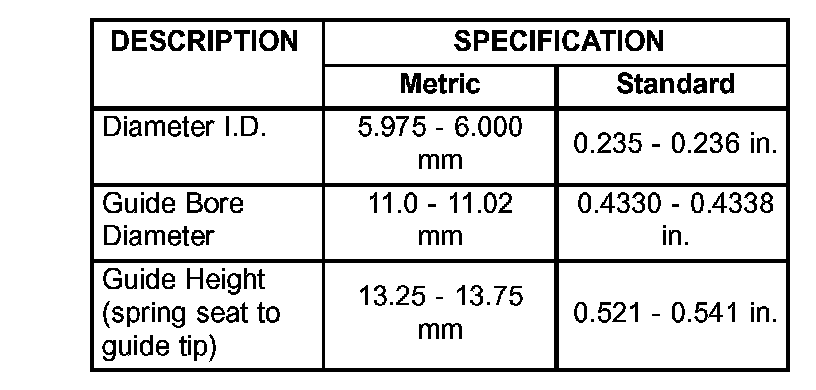

VALVE GUIDE

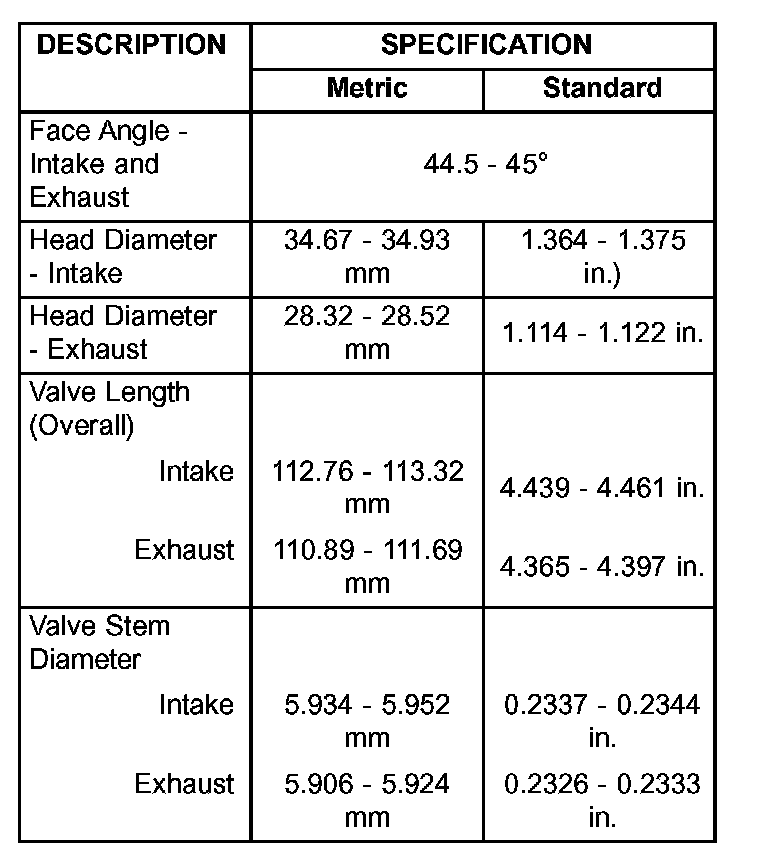

VALVES
VALVE MARGIN
VALVE STEM TIP
VALVE STEM TO GUIDE CLEARANCE
VALVE SPRINGS
OIL PUMP

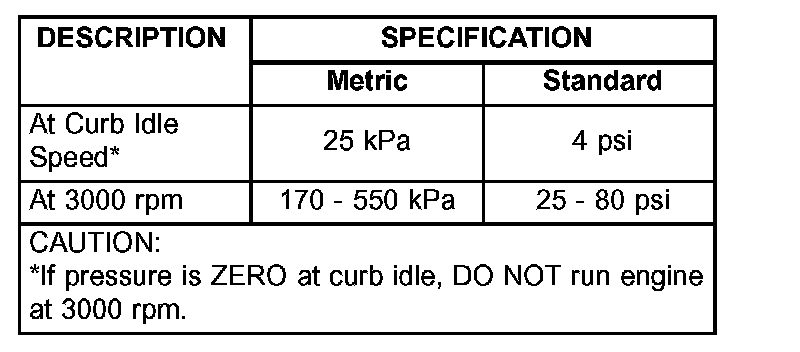

OIL PRESSURE
