Engine Torque Specifications

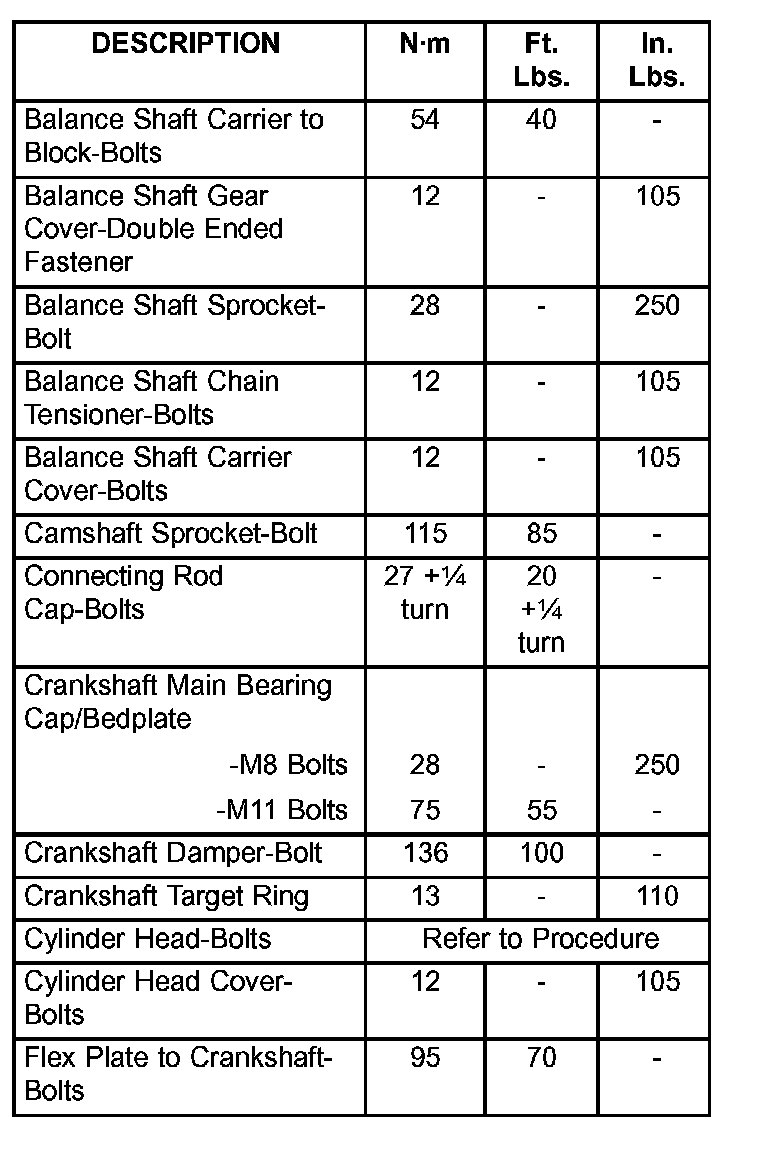

TORQUE













Cylinder head bolts

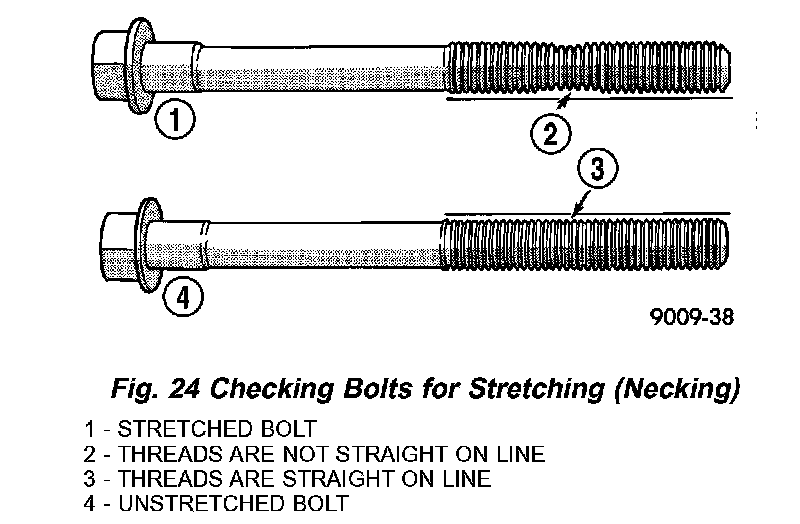

Should be examined BEFORE reuse. If the threads are necked down, the bolts should be replaced (Fig. 24).





Cylinder head bolts

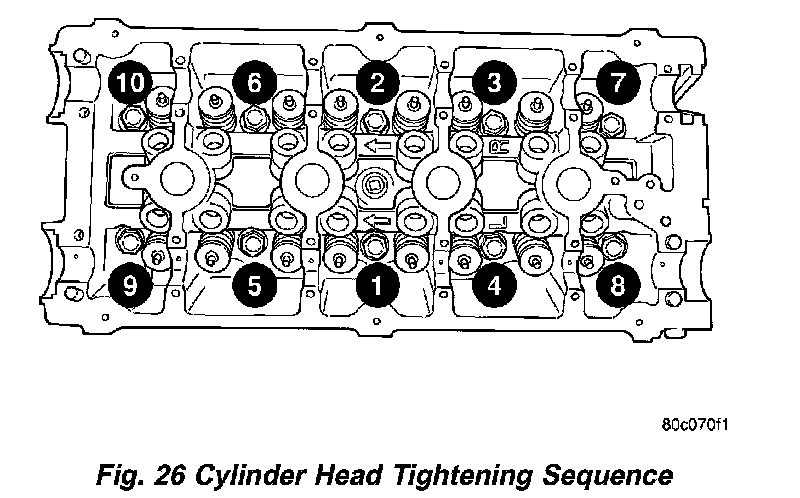

Tighten the cylinder head bolts in the sequence shown in (Fig. 26). Using the 4 step torque-turn method, tighten according to the following values:
First: All to 34 Nm (25 ft. lbs.)
Second: All to 82 Nm (60 ft. lbs.)
Third: All to 82 Nm (60 ft. lbs.)

CAUTION: Do not use a torque wrench for the Fourth step.

Fourth: Turn all bolts an additional 1/4 Turn.

Intake Manifold
Tighten fasteners to 23 Nm (200 inch lbs.).





Camshaft bearing caps
Install right and left camshaft bearing caps No. 2 - 5 and right No. 6.
Tighten M6 fasteners to 12 Nm (105 inch lbs.)
Tighten M8 fasteners to 28 Nm (250 inch lbs.).

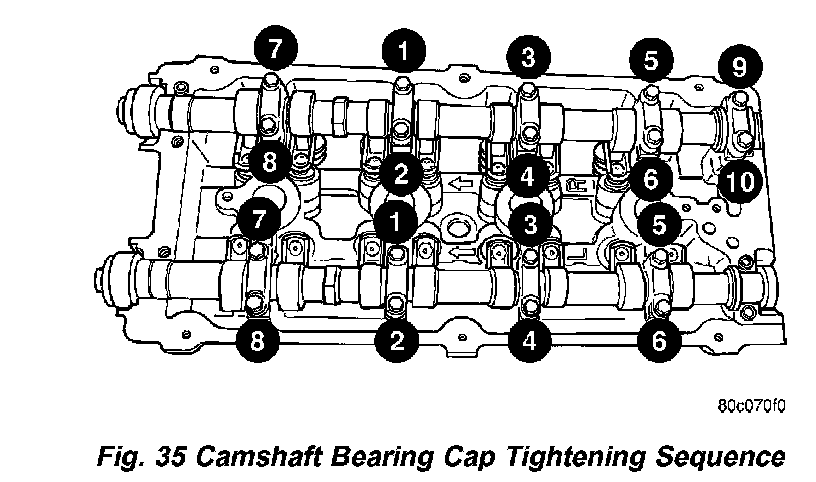

Tighten in sequence shown in (Fig. 35).





Crankshaft Main bearing Caps
Install and tighten bolts (1-10)

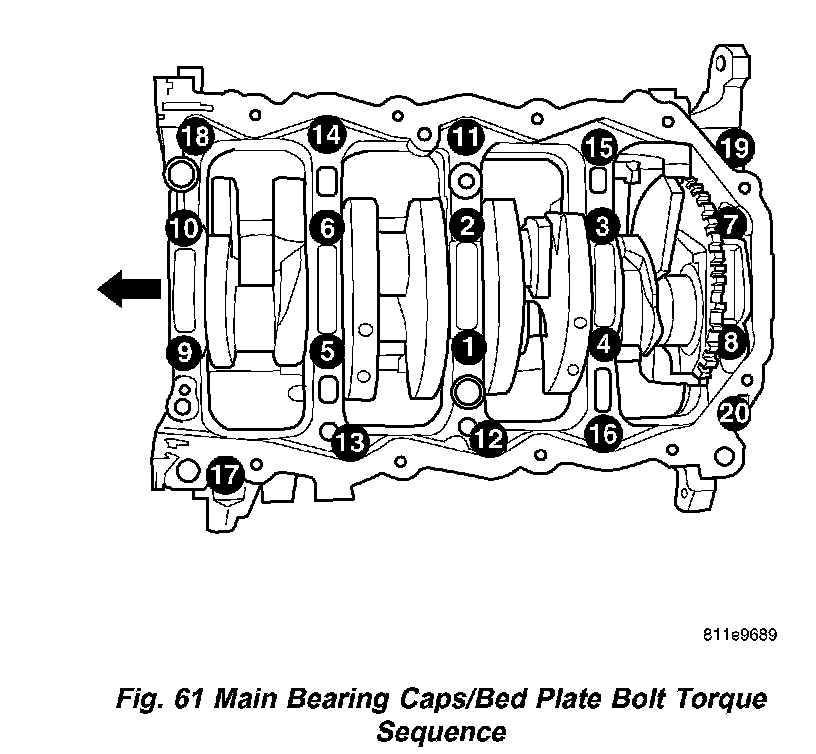

Tighten in sequence shown (Fig. 61).
Tighten to 41 Nm (30 ft. lbs.)
Tighten bolts (1-10) again to 41 Nm (30 ft. lbs.)
Tighten in sequence shown.
Install main bearing bed plate to engine block bolts (11-20)
Torque each bolt to 28 Nm (250 inch lbs.)
Tighten in sequence shown.
Tighten bolts (1-10) to 75 Nm (55 ft. lbs.)
Tighten in sequence shown.
Tighten bolts (11-20) again to 28 Nm (250 inch lbs.)
Tighten in sequence shown.

Connecting rod bearings and caps

Do Not Reuse Connecting Rod Bolts

Torque connecting rod bolts to 27 Nm (20 ft. lbs.) plus 1/4 turn.





Vibration Damper
Tighten bolt to 136 Nm (100 ft. lbs.).

Flex Plate to Crankshaft-Bolts 95 Nm (70 inch lbs.)

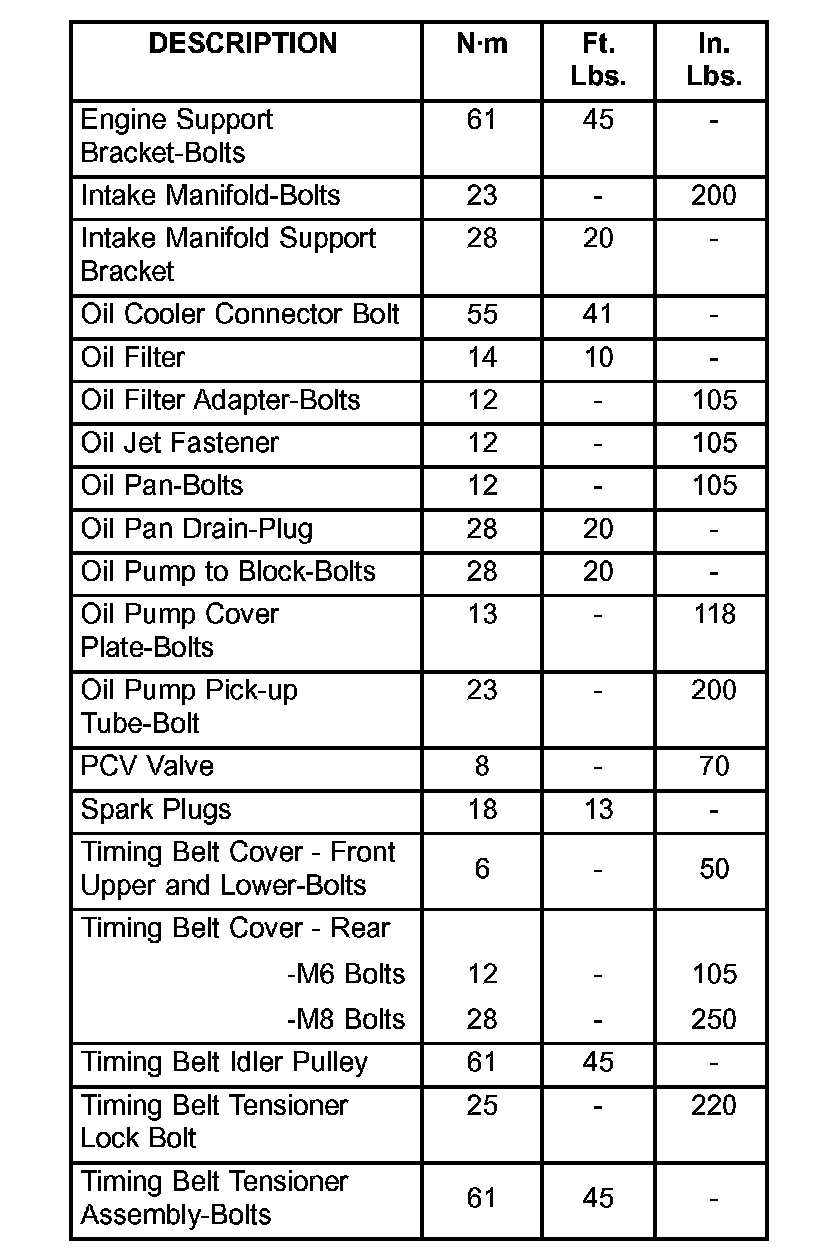

Oil Pump to Block-Bolts 28 Nm (20 ft. lbs.)

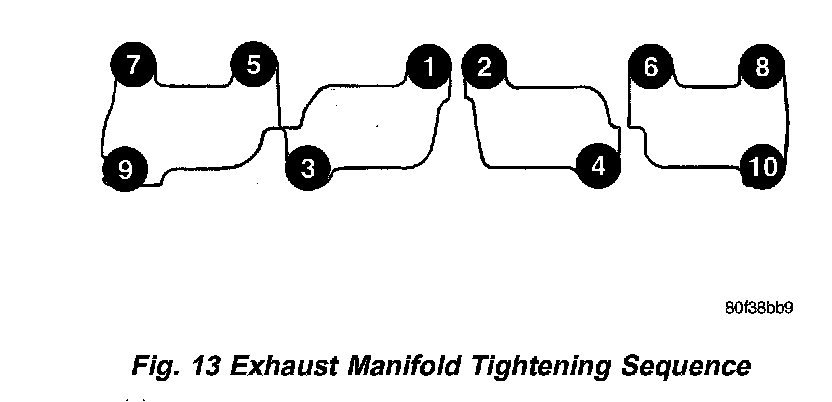

Turbocharger/Exhaust manifold
Tighten fasteners, starting at center and progressing outward in both directions to 28 Nm (250 inch lbs.)

Water Pump
Tighten screws to 12 Nm (105 inch lbs.)
