Backup Lamp Switch: Service and Repair

BACK-UP LAMP SWITCH

REMOVAL
1. Raise vehicle on hoist.
2. Disconnect back-up lamp switch connector.

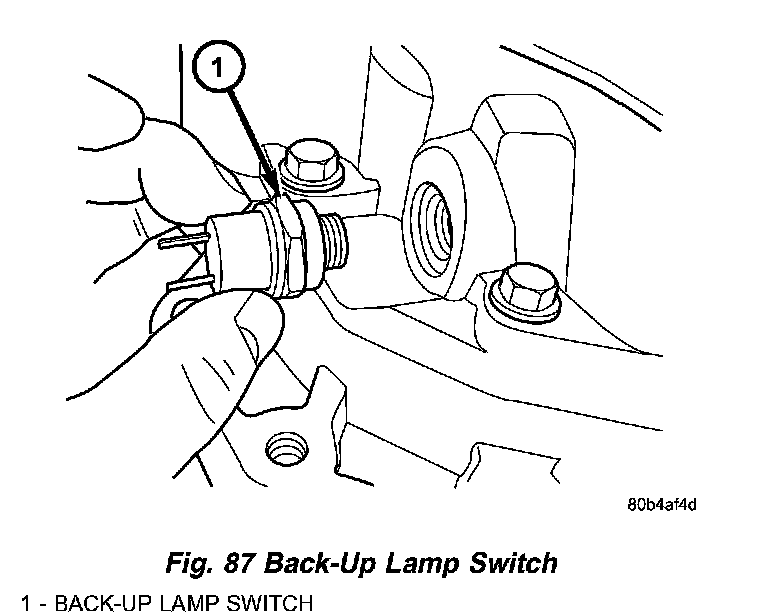

3. Remove back-up lamp switch (Fig. 87).

INSTALLATION
1. Install back-up lamp switch (Fig. 87) and torque to 23 Nm (17 ft. lbs.).
2. Connect back-up lamp switch connector.
3. Lower vehicle.
