Home >> Dodge >> 2005 >> SRT-4 L4-2.4L Turbo VIN S >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Locations

Engine - Coolant Temperature Sensor/Switch: Locations

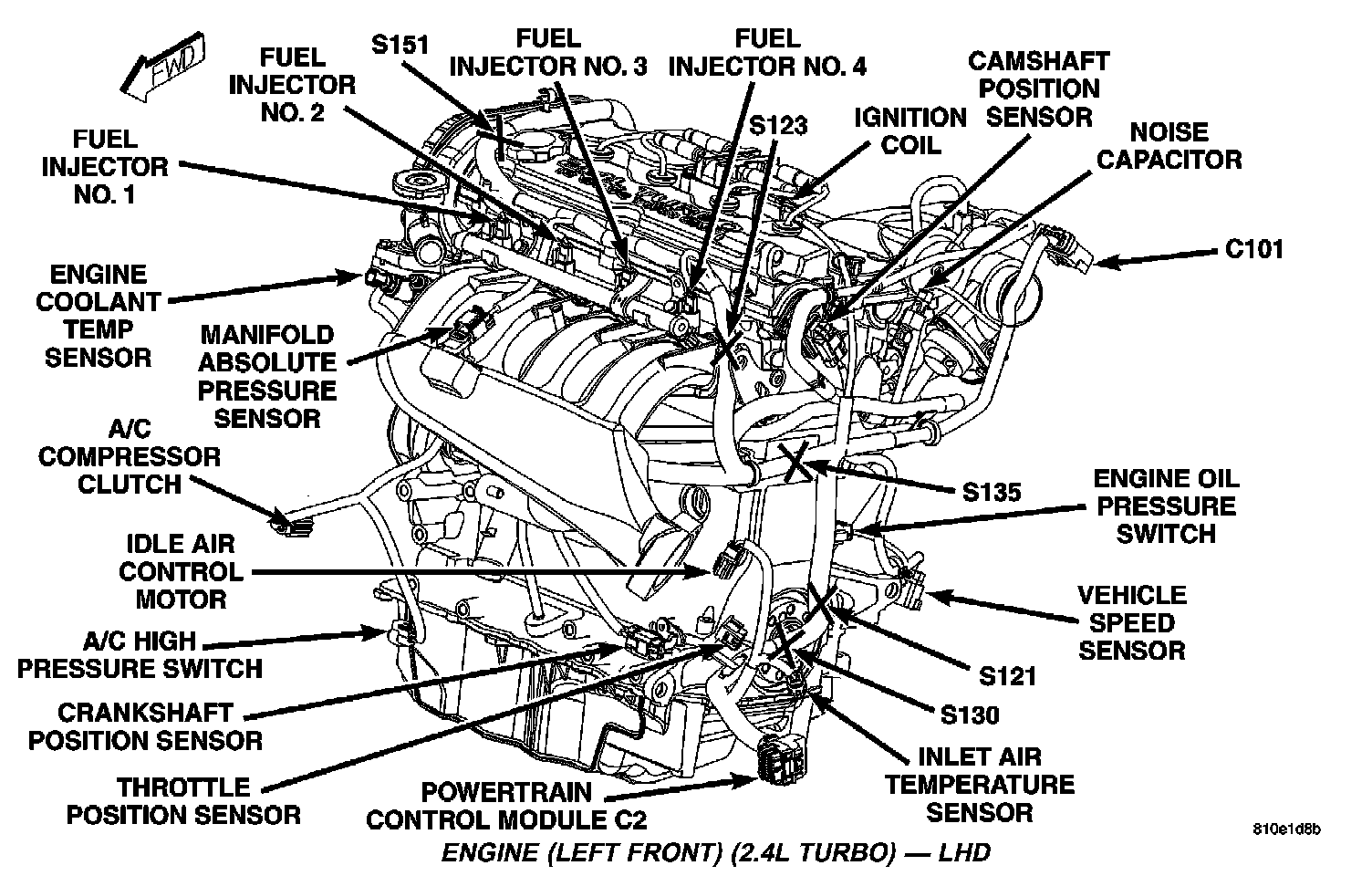

Engine (Left Front) (2.4L Turbo) - LHD:



Engine (Left Front) - RHD:
