Dodge
>>
2005
>>
SRT-4 L4-2.4L Turbo VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Diagrams
Fuel Injector: Diagrams

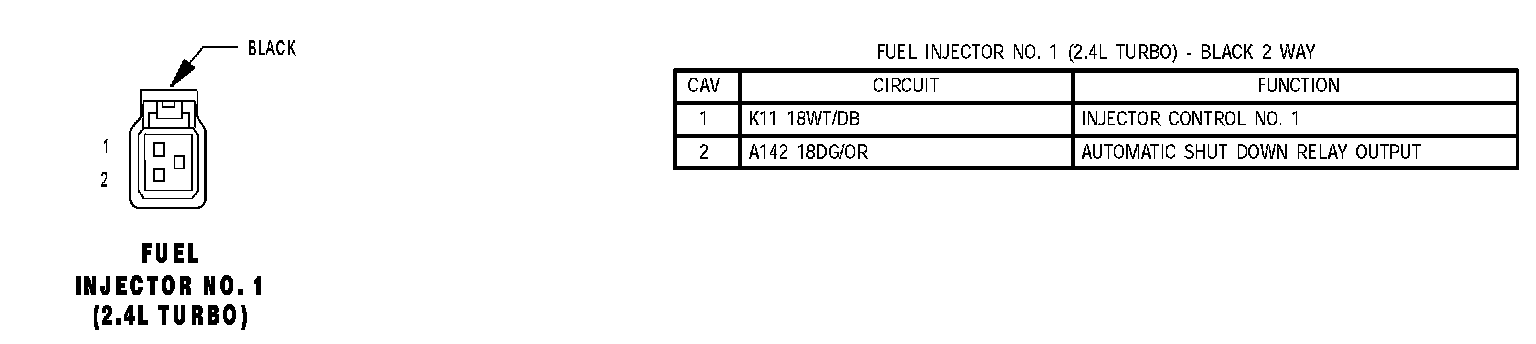

Fuel Injector No.1 (2.4L Turbo):

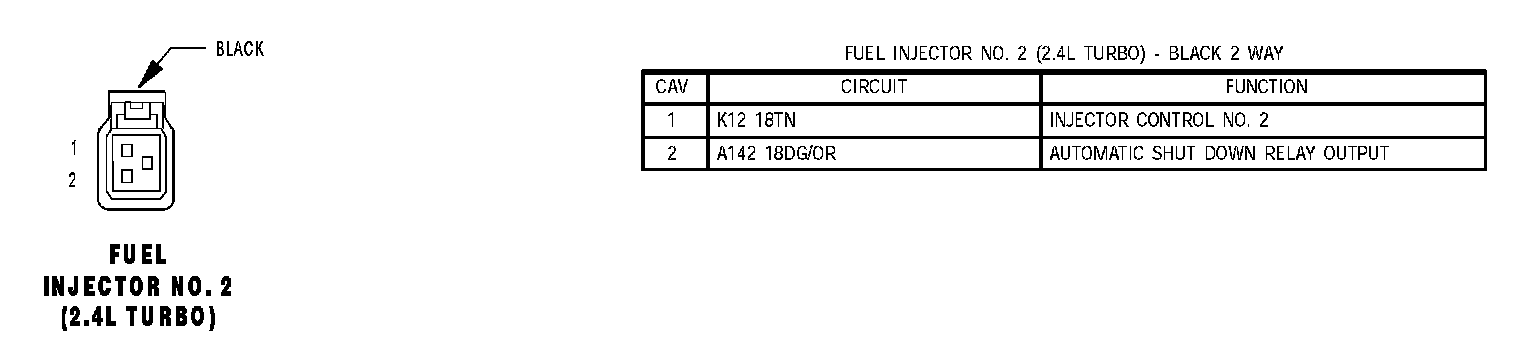

Fuel Injector No.2 (2.4L Turbo):

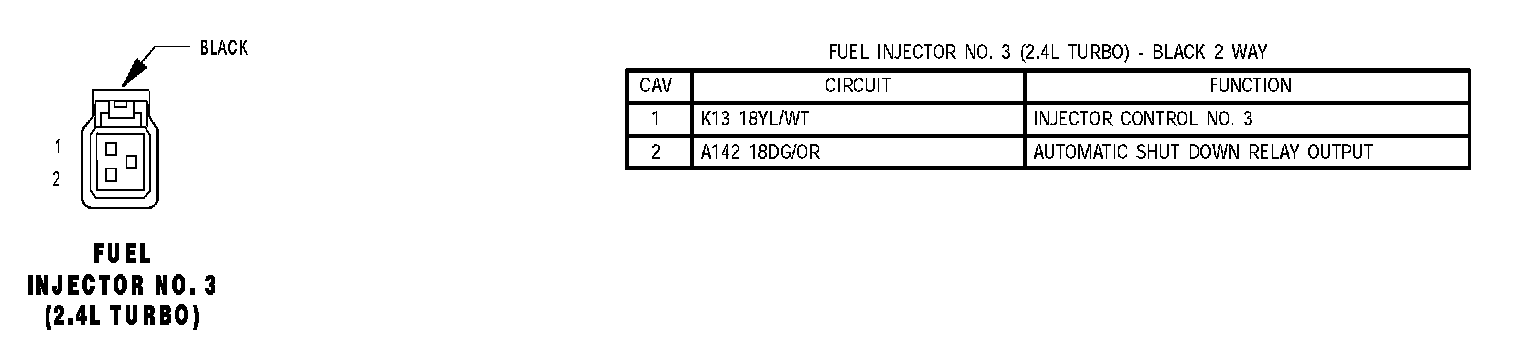

Fuel Injector No.3 (2.4L Turbo):

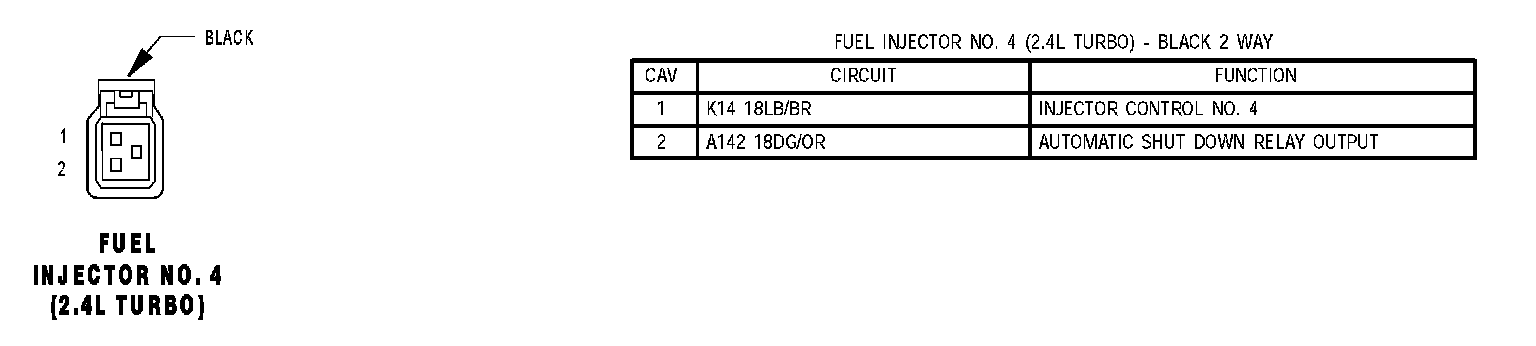

Fuel Injector No.4 (2.4L Turbo):
