Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

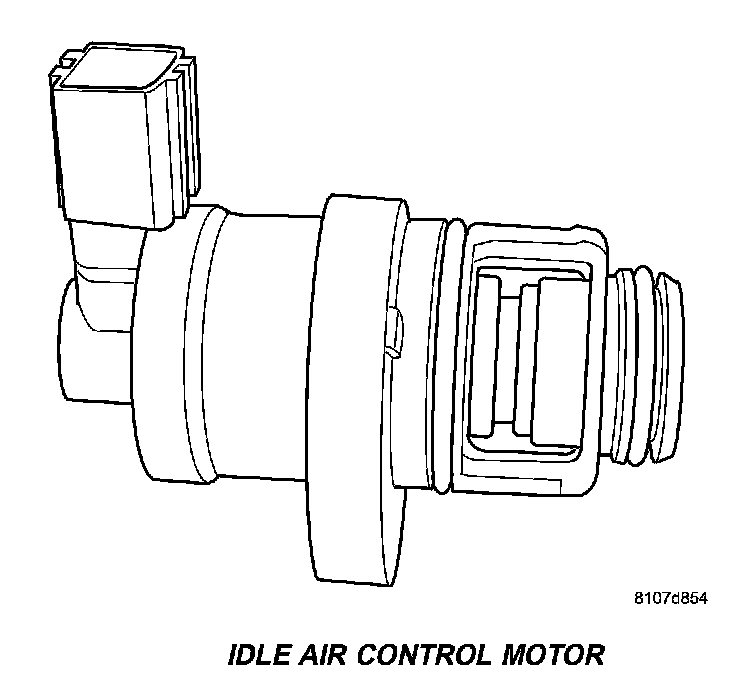

Idle Air Control Motor:

When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. Never use lubricants on O-rings or seals, damage may result. If assembly of component is difficult, use water to aid assembly. Use care when removing hoses to prevent damage to hose or hose nipple.
1. Disconnect negative cable from battery.
2. Relocate the air cleaner box.
3. Remove electrical connector from idle air control motor.

TPS And IAC Location:

4. Remove idle air control motor mounting screws.
5. Remove motor from throttle body. Ensure the O-ring is removed with the motor.

INSTALLATION

IAC Remove/Install:

1. Install the JAC to the throttle body.
2. Tighten mounting screw to 5.1 N.m (45 in. lbs.) torque.
3. Attach electrical connector to the JAC and lock connector.
4. Relocate the air cleaner box and install fasteners.
5. Connect the negative battery cable.
