Oil Spray Jet: Service and Repair

OIL JET

REMOVAL
1. Remove crankshaft.

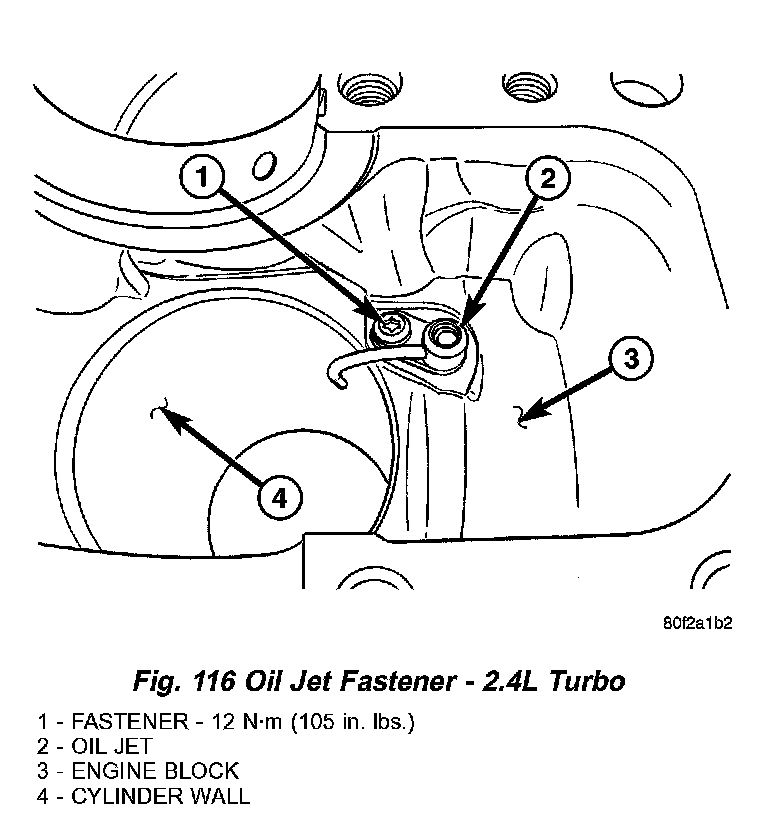

2. Remove oil jet fastener (Fig. 116).

CAUTION: Do Not Pull on Oil Jet Tube

3. Using pliers or other similar tool, pull oil jet from engine block.

INSTALLATION

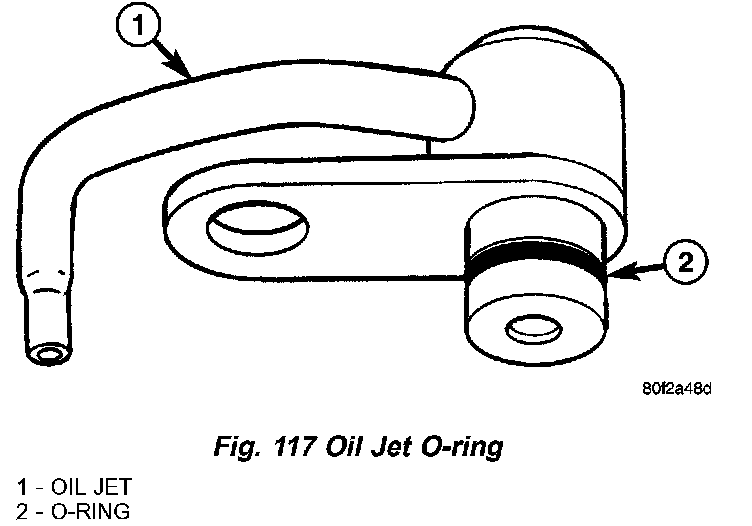

1. Inspect oil jet o-ring (Fig. 117).
2. Lightly coat o-ring with clean engine oil.
3. Push oil jet into engine block until it is fully seated.

CAUTION: Ensure oil jet is fully seated in engine block before installing fastener. Do Not use the oil jet fastener to draw the oil jet into the engine block. Damage to oil jet may occur.

4. Install oil jet fastener. Torque fastener to 12 Nm (105 inch lbs.) (Fig. 116).
5. Install crankshaft.
