Wiper Blade Replacement

REMOVAL
1. Lift wiper arm to the over center position.

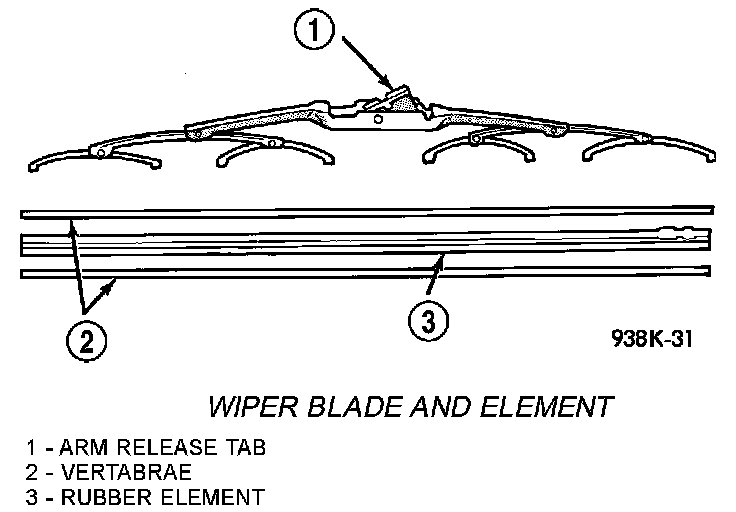

Wiper Blade And Element:

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip.
3. Gently place wiper arm tip on glass surface.

INSTALLATION
1. Gently lift wiper arm tip off glass surface and to the over center position.
2. Install the blade assembly onto the arm by sliding blade towards arm tip .
3. Lower the wiper arm to the glass surface and check the wiping pattern.
