Wiper Blade Element Replacement

REMOVAL
1. Lift wiper arm to raise blade off glass.

Wiper Blade And Element:

2. Remove blade assembly from arm by pushing release tab under arm tip and slide blade away from arm tip. Gently place wiper arm tip on glass surface.

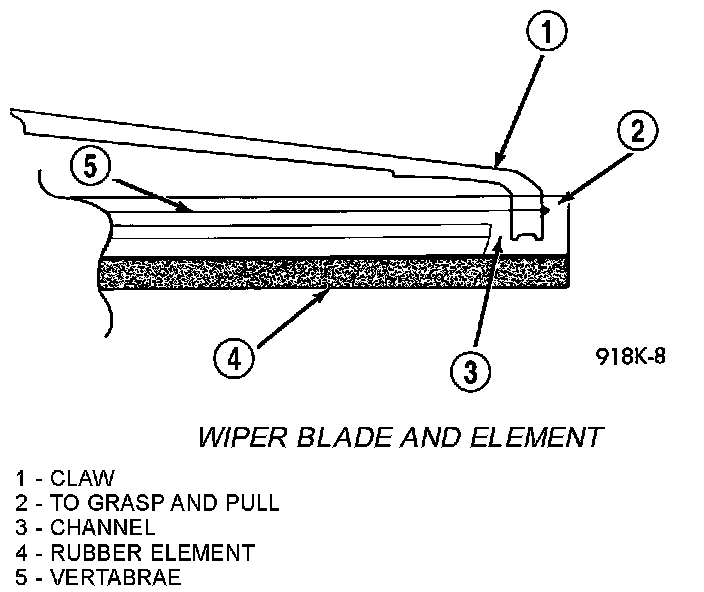

Wiper Blade And Element:

3. Remove wiping element from blade assembly. Pull stopper of the rubber element out of the end claw together with vertebrae (metal rails).

INSTALLATION
1. Install the wiping element onto the blade assembly. Push into the end of the blade assembly by pressing the claw together with vertebrae (metal rails).
2. Install the blade assembly onto the arm by sliding onto the arm tip . Gently place wiper arm tip on glass surface.

Check that the element and vertebrae are through all claws and the final claw is locked in the stopper.
