Wiper Arm: Adjustments

1. Cycle the wiper motor into the PARK position.
2. Lift the wiper blade off the windshield and release it.

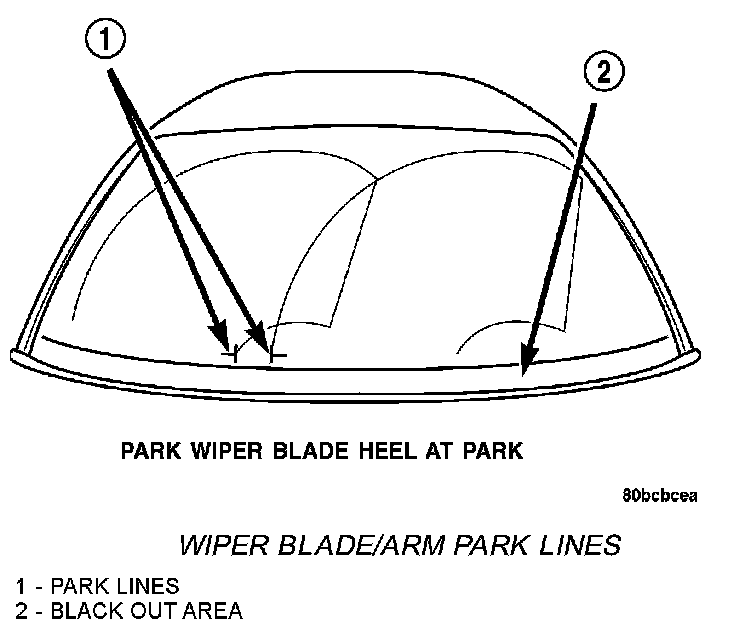

Wiper Blade/Arm Park Lines:

3. The wiper blade heel should be parked within 5 mm of the park line. The park line is mark on the windshield .
4. In the event that the wiper blade tip excessively strikes the cowl screen due to long term normal wear, reposition the wiper blade heel slightly above the park line. Make sure that the wipers are in the PARK position.
