Wiper Control Module: Service and Repair

REMOVAL

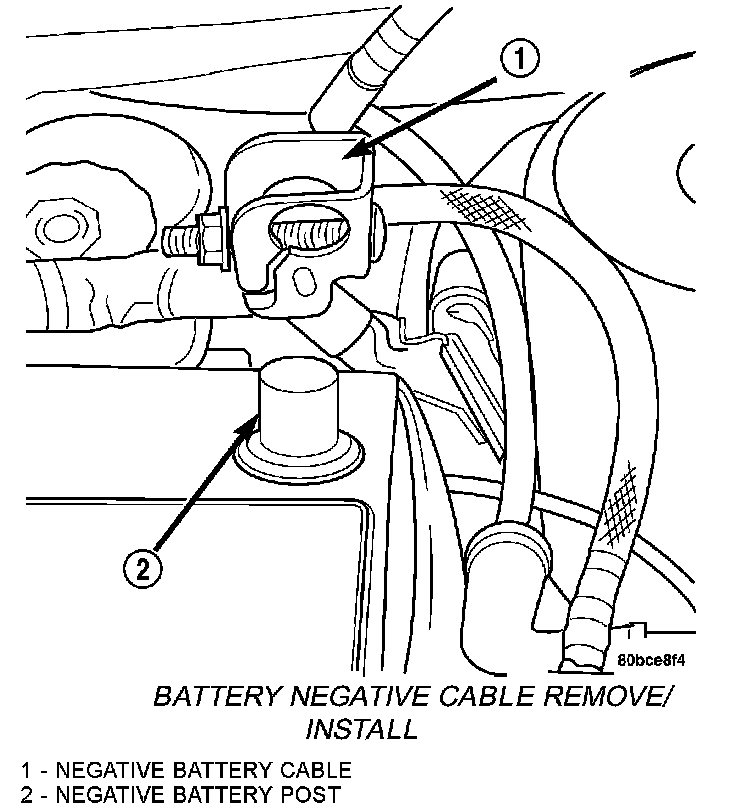

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove wiper arms. Refer to Electrical, Wipers/Washers, Wiper Arm, Removal.
3. Remove the left side cowl cover. Refer to Body, Exterior, Cowl Cover, Removal.
4. Disconnect the motor posi-lock harness connector.

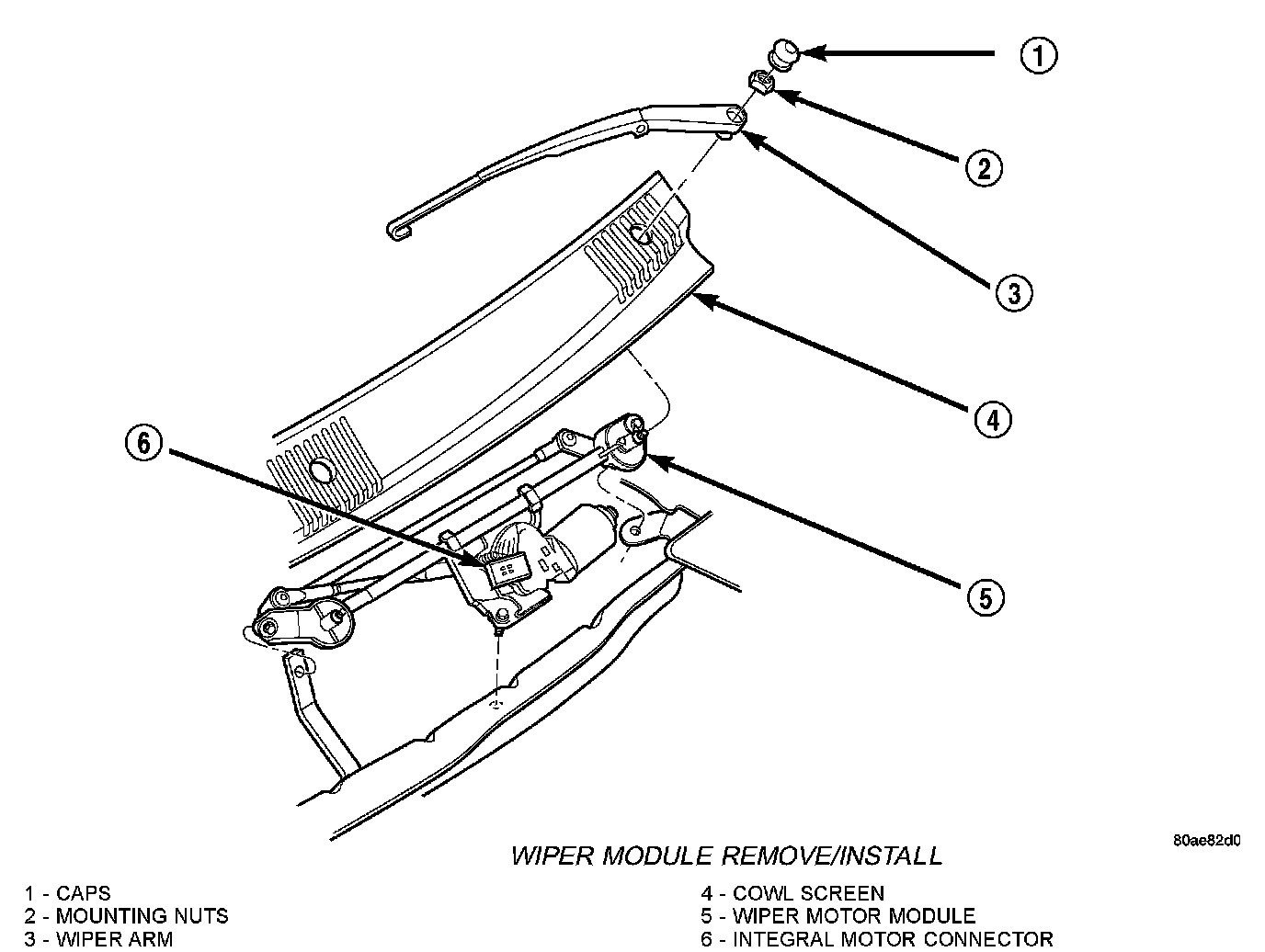

Wiper Module Remove/Install:

5. Remove the wiper module mounting screws and remove the module from vehicle.

INSTALLATION
1. Install the windshield wiper module into the vehicle.
2. Install the mounting screws and tighten to 7 to 9 Nm (60 to 80 in. Lbs.) torque.
3. Connect the motor posi-lock harness connector .
4. Install the left side cowl cover. Refer to Body, Exterior, Cowl Cover, Installation.
5. Install the wiper arms. Refer to Electrical, Wipers/Washers, Wiper Arm, Installation.
6. Connect the battery negative cable .
