Roof Rail Weatherstrip Retainer Channel

ROOF RAIL WEATHERSTRIP RETAINER CHANNEL

REMOVAL

1. Open door(s).
2. Using trim stick disconnect the top and bottom push in fasteners from B-pillar applique. Gently pull outward on the applique to remove from the vehicle.

NOTE: The applique is attached to the vehicle with two sided tape between the push in fasteners, ensure all of the old two sided tape is removed from the vehicle surface before installation of new part.

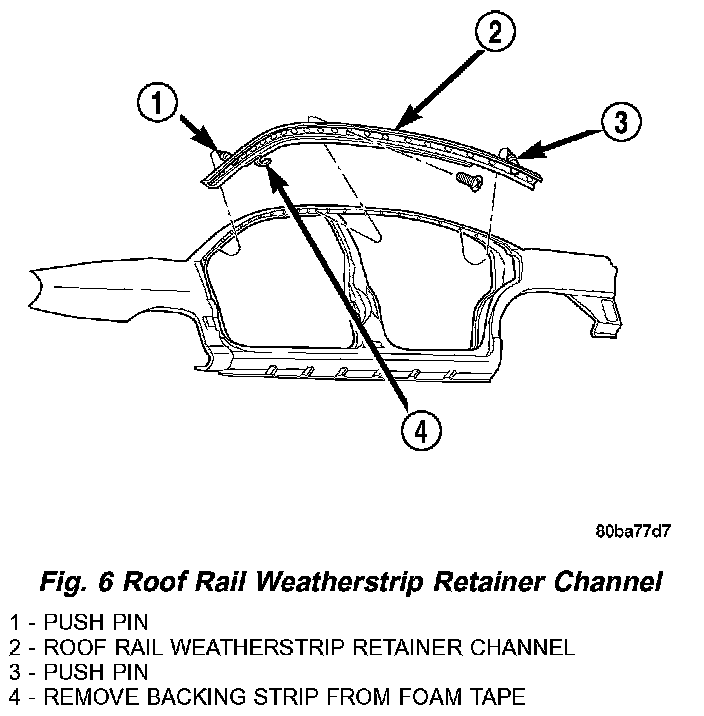

Fig. 6:

3. Remove weatherstrip from the retainer channel (Fig. 6).
4. Remove retainer channel from the body side aperture.

INSTALLATION

1. Install retainer channel to the body side aperture.
2. Remove weatherstrip from the retainer channel.
3. Connect the top and bottom push in fasteners to B-pillar applique. Gently push on the applique to install from the vehicle.
