Roof Rail Weatherstrip

ROOF RAIL WEATHERSTRIP

REMOVAL

1. Open front and rear doors.
2. Using a door trim removing tool, disengage the push-in fasteners holding A-pillar and C-pillar weatherstrip molding.
3. Starting at the bottom of the A-pillar, pull the roof rail weatherstrip from the windshield side molding.

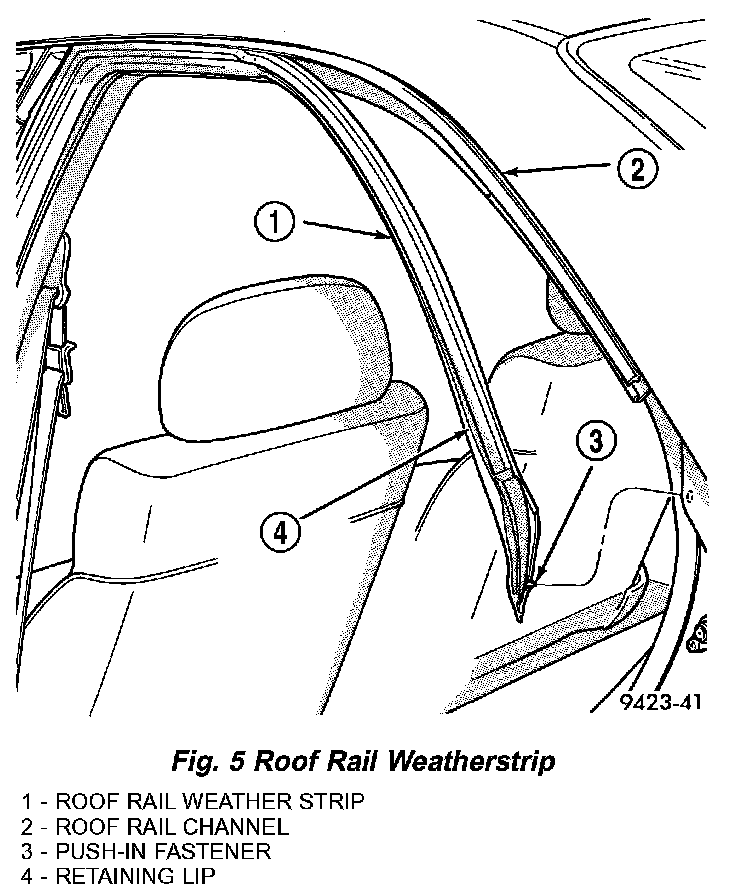

Fig. 5:

4. Pull roof rail weatherstrip from the roof rail pinch flange above the door opening (Fig. 5).
5. Separate roof rail weatherstrip from vehicle.

INSTALLATION

1. Place weatherstrip in position on pinch flange.
2. Starting at the bottom of the C-pillar, install the roof rail weatherstrip molding to the pinch rail.
3. Install push-in fasteners to hold weatherstrip to A-pillar and C-pillar.
