Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations

Power Window Motor: Locations

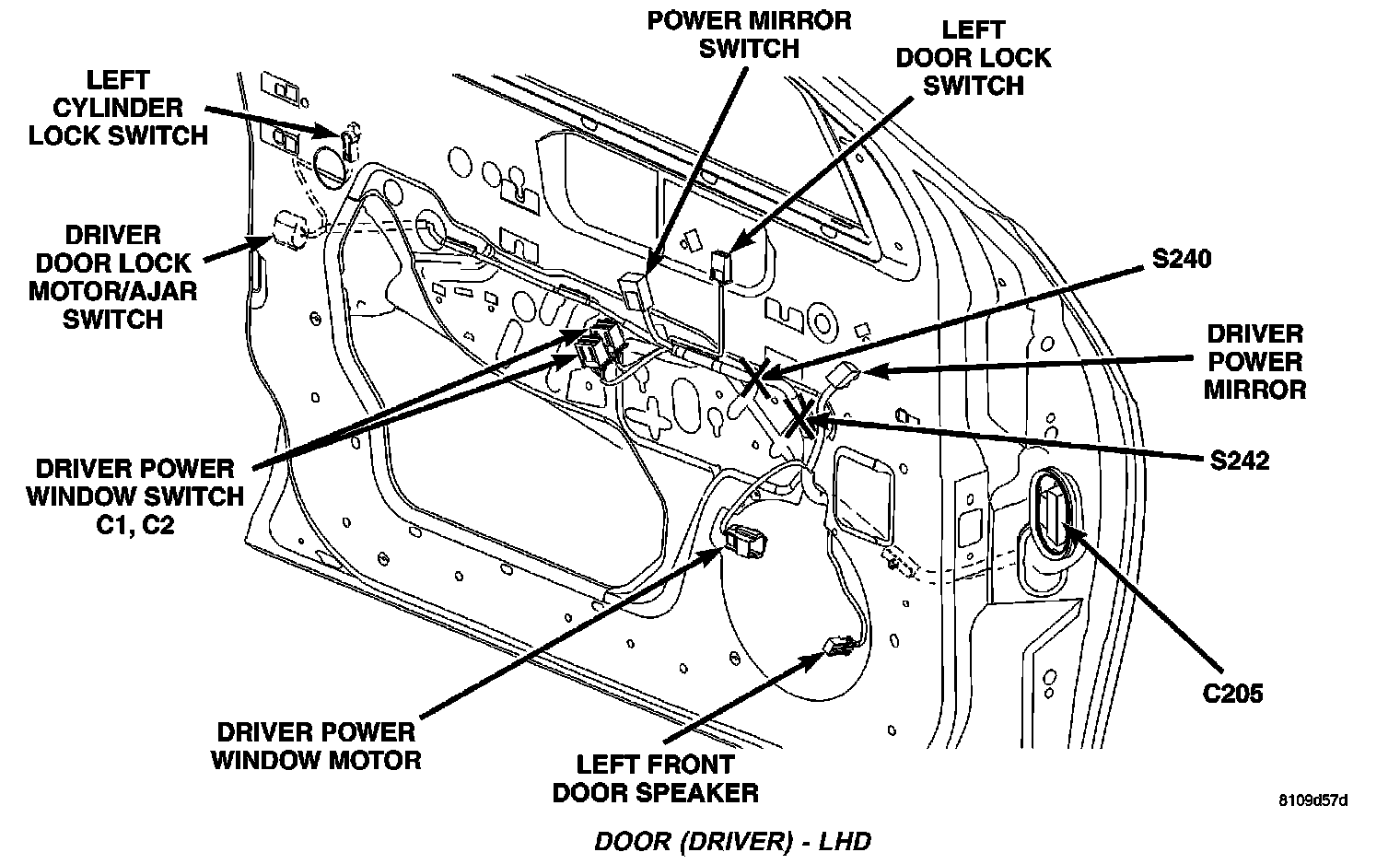

Door (Driver) - LHD:

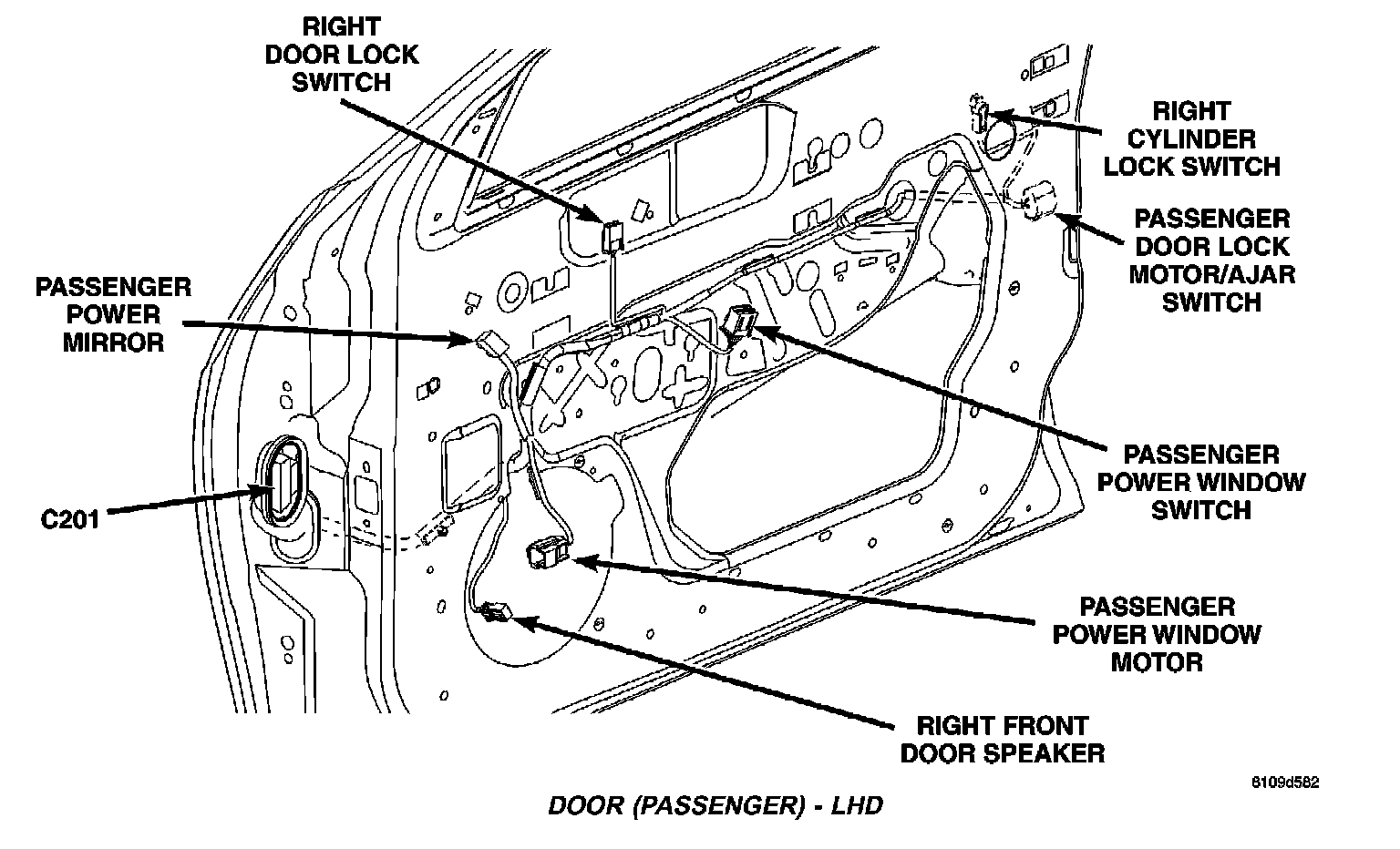

Door (Passenger) - LHD:

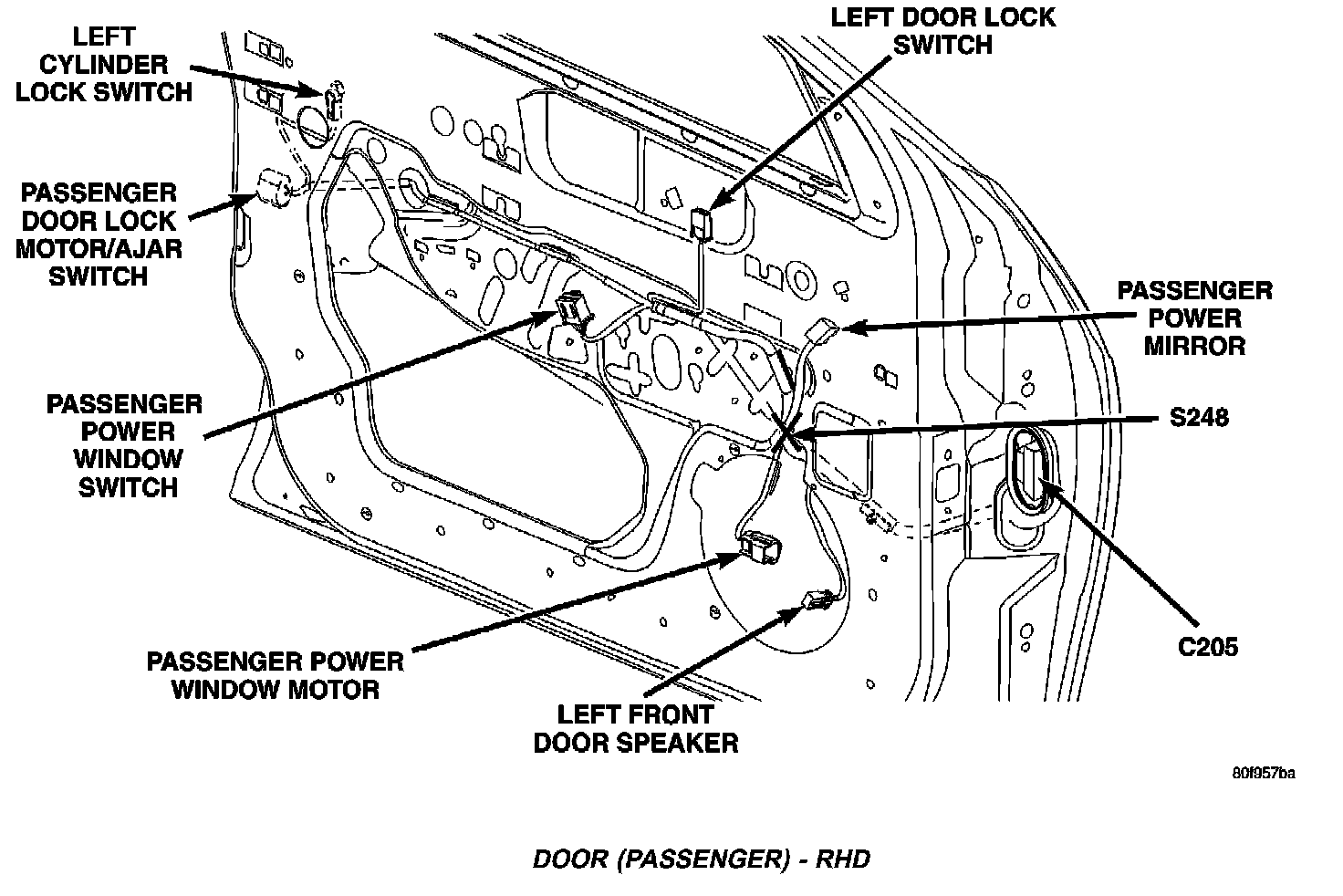

Door (Passenger) - RHD:

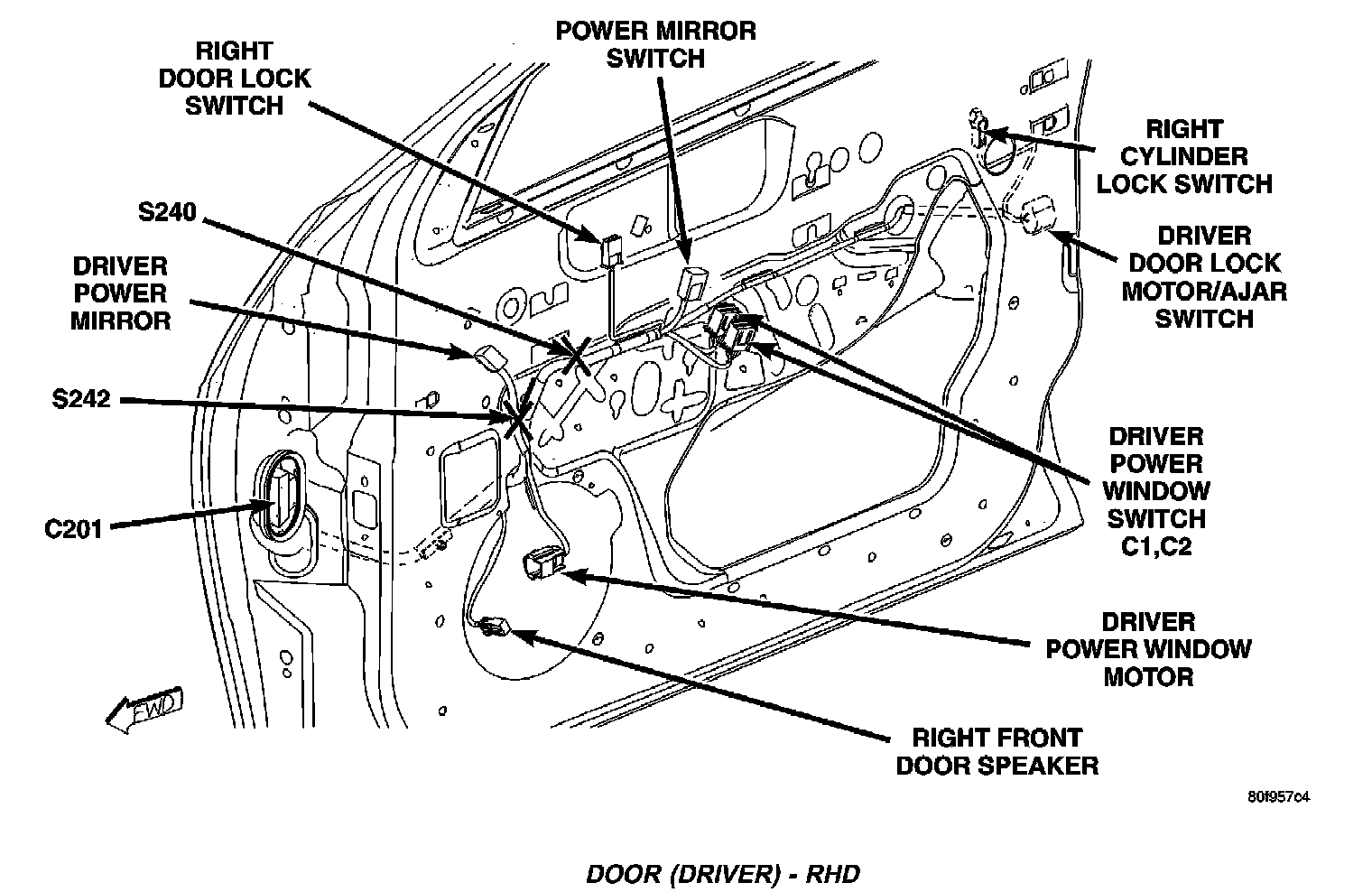

Door (Driver) - RHD:
