Speed Sensor - Input

SPEED SENSOR - INPUT

REMOVAL
1. Disconnect battery negative cable.
2. Remove air cleaner/throttle body assembly.
3. Disconnect input speed sensor connector.

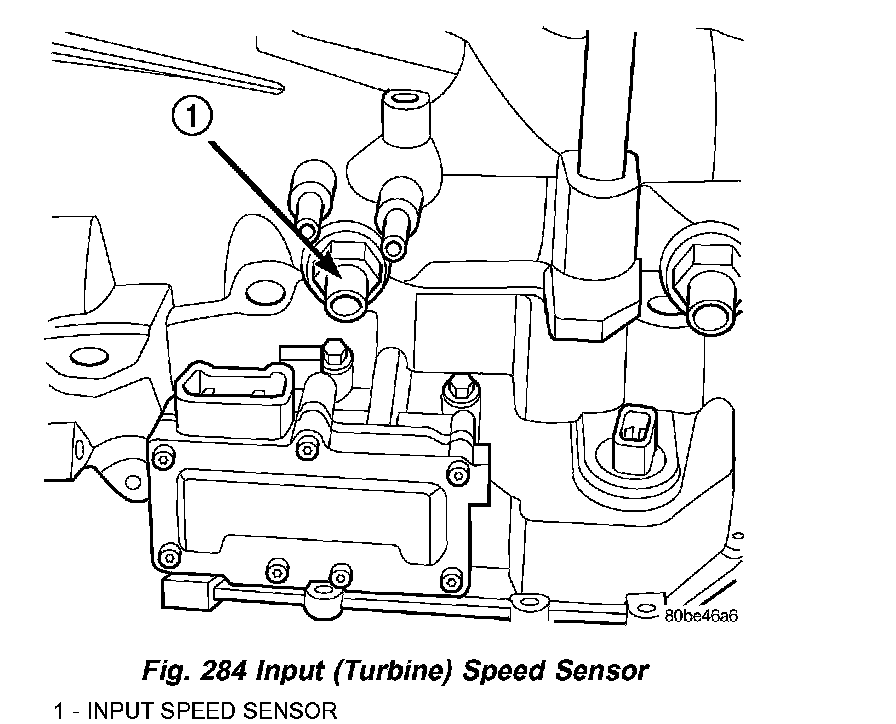

4. Unscrew and remove input speed sensor (Fig. 284).

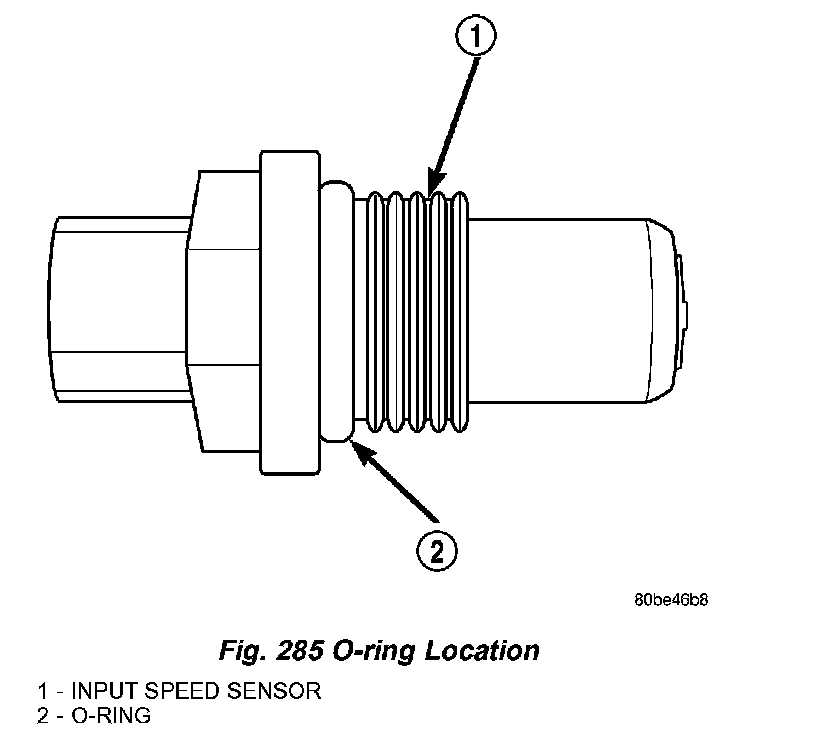

5. Inspect speed sensor O-ring (Fig. 285) and replace if necessary.

INSTALLATION
1. Verify O-ring is installed into position.
2. Install and tighten input speed sensor to 27 Nm (20 ft. lbs.).
3. Connect speed sensor connector.
4. Install air cleaner/throttle body assembly.
5. Connect battery negative cable.
