Mechanical Specifications

SPECIFICATIONS
Bolts that have thread sealer or torque lock patches should not be reused. Always install new bolts in these applications.

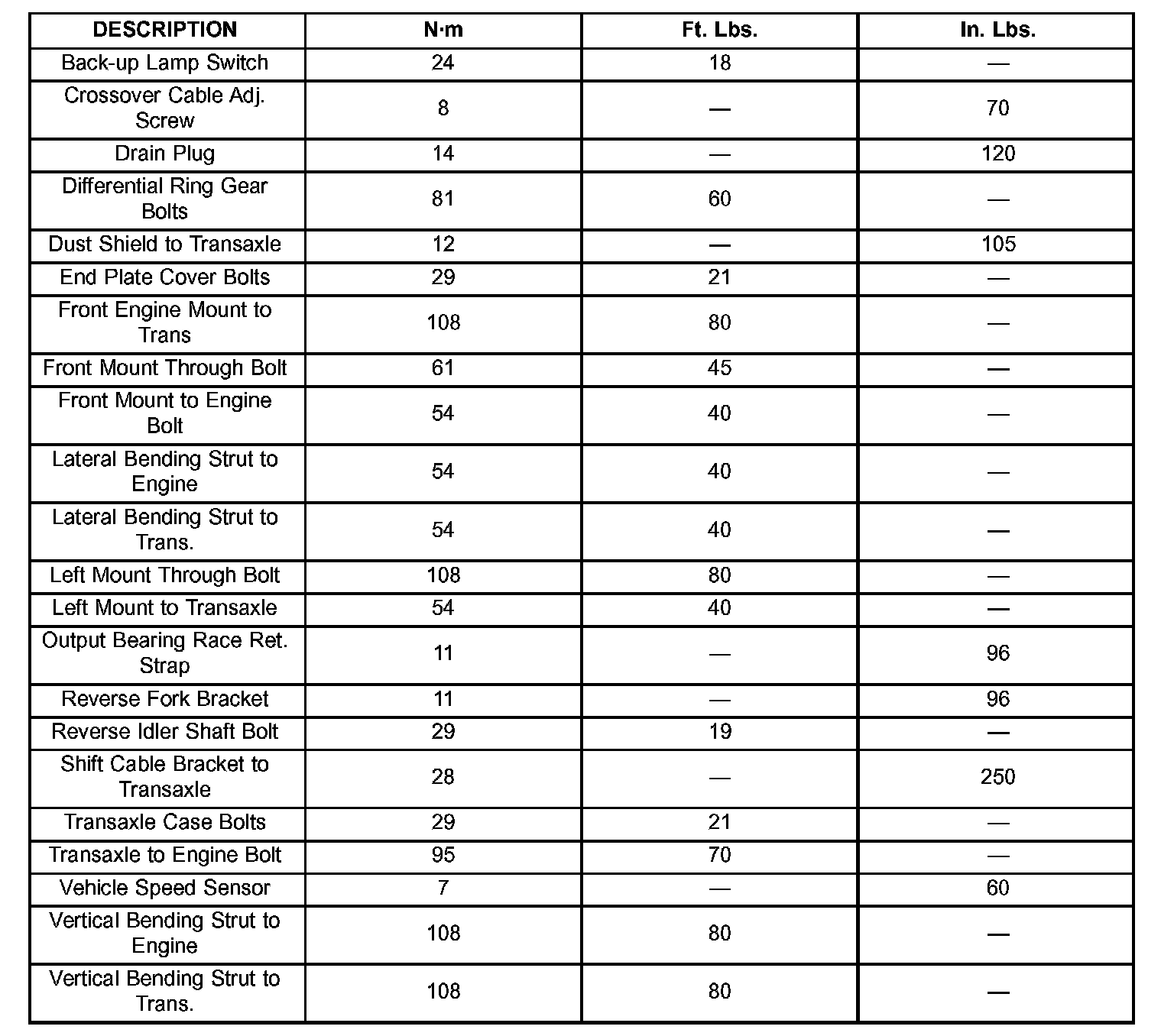

TORQUE SPECIFICATIONS:





TORQUE SPECIFICATIONS
