Installation

INSTALLATION
1. Install clutch module onto input shaft. Install transaxle into position.





2. Install transaxle-to-engine mounting bolts (Fig. 14)and tighten to 95 Nm (70 ft. lbs.) torque.

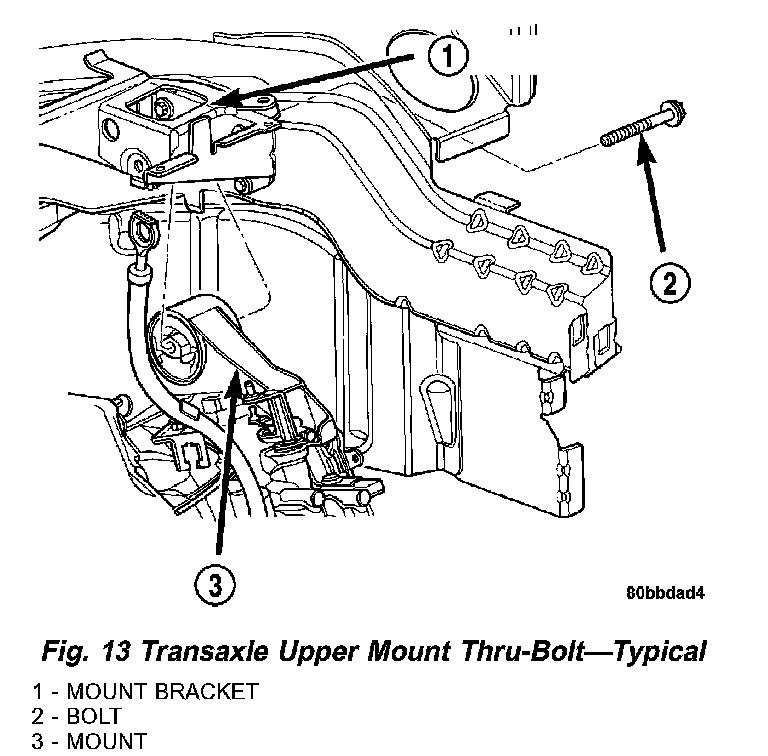

3. Raise engine and transaxle with screw jack until through hole in upper mount aligns with hole in mount bracket. Install mount bolt and tighten to 108 Nm (80 ft. lbs.) torque (Fig. 13).
4. Remove screwjack.
5. Install four (4) modular clutch-to-driveplate bolts. Align drive plate and modular clutch alignment marks placed upon disassembly Start with tight-tolerance (slotted) hole, install and torque bolts to 88 Nm (65 ft. lbs.) torque.

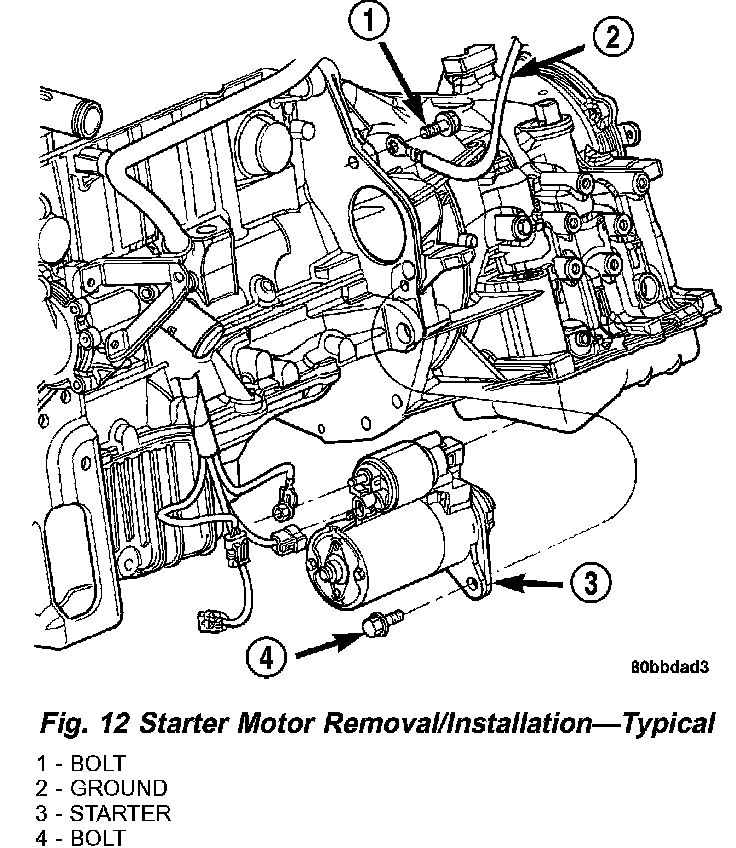

6. Install starter motor and tighten bolts to 54 Nm (40 ft. lbs.) torque. Make sure to fasten ground cable to upper starter bolt as shown in (Fig. 12).
7. Connect starter electrical harness and tighten positive cable nut to 10 Nm (90 inch lbs.) torque.

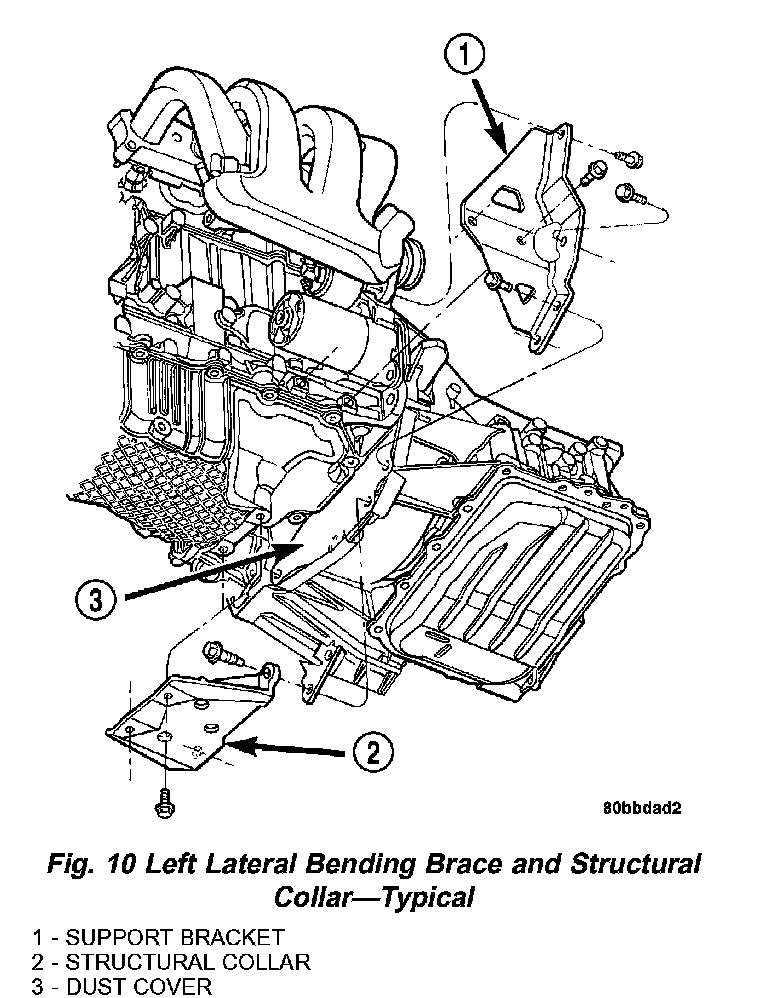

8. Install bellhousing dust cover (Fig. 10).
9. Install left engine-to-transaxle bending brace (Fig. 10).
10. Install structural collar (Fig. 10) as follows:
a. Position collar and install all bolts finger tight.
b. Tighten the collar-to-oil pan bolts to 3 Nm (30 inch lbs.) torque.
c. Tighten the collar-to-transaxle bolts to 108 Nm (80 ft. lbs.) torque.
d. Final torque the collar-to-oil pan bolts to 54 Nm (40 ft. lbs.) torque.





11. Install the right lateral bending brace and tighten bolts to 81 Nm (60 ft. lbs.) torque (Fig. 11).

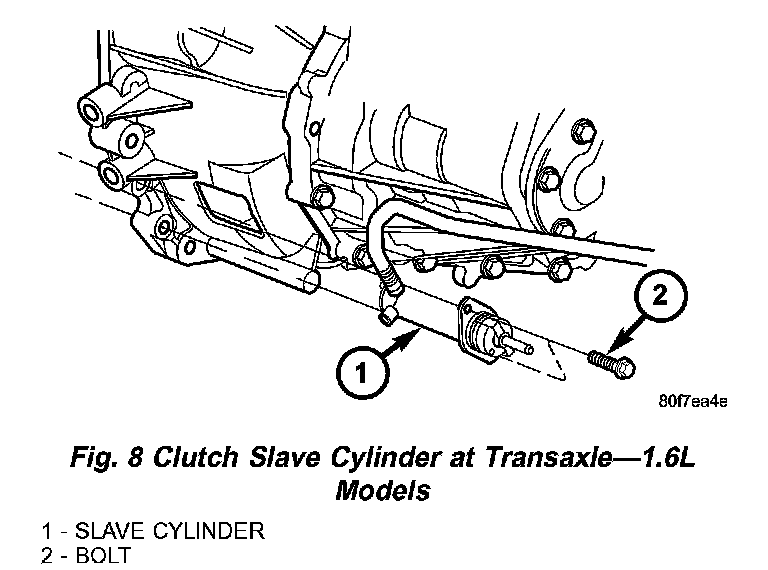

12. Install slave cylinder to transaxle (Fig. 8) (Fig. 9).
13. Install both front axle driveshafts. Refer to Differential and Driveline for the correct procedures.
14. Fill transaxle with suitable amount of Mopar (R) ATF+4.
15. Lower vehicle.

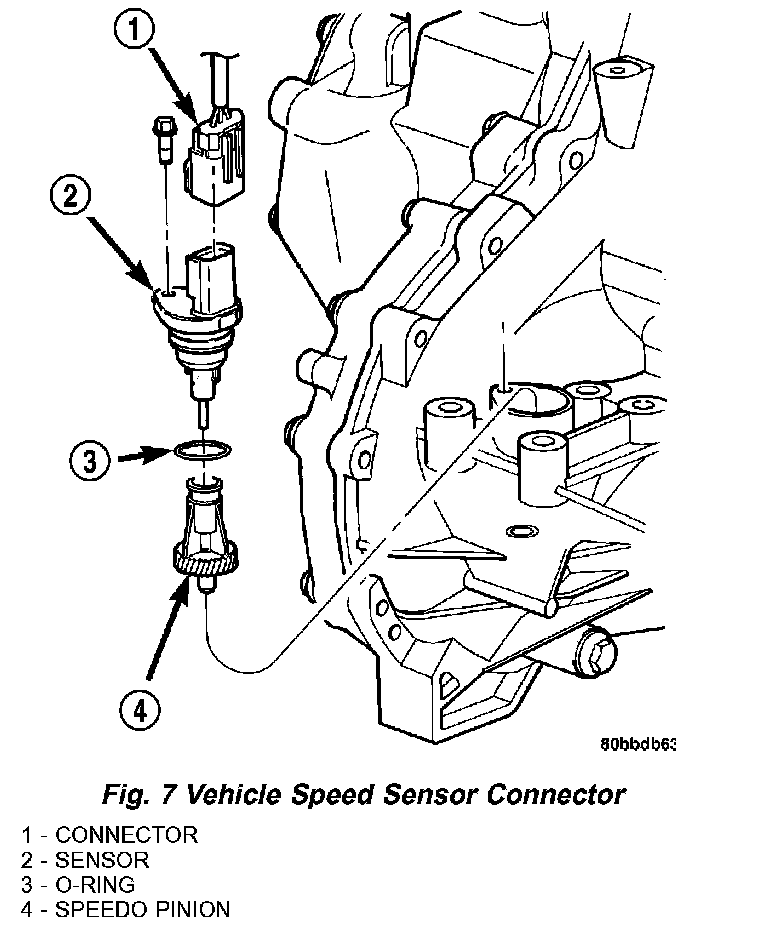

16. Connect vehicle speed sensor connector (Fig. 7).

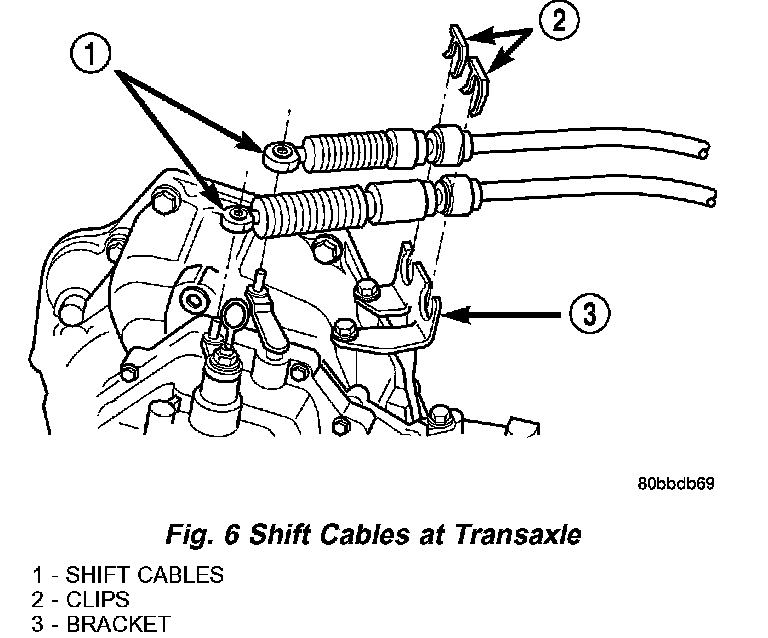

17. Connect shift crossover and selector cables to shift lever. Install cables to bracket and install retaining clips (Fig. 6).
18. Connect back-up lamp switch connector.
19. Connect ground strap to transaxle upper mount bracket.
20. Install battery lower tray and battery, and tighten battery hold down clamp to secure battery.
21. Install the air cleaner/throttle body assy. as follows:
a. Connect the accelerator and speed control (if equipped) cables to the air cleaner/throttle body assy.
b. Install assy. into position, making sure then air cleaner locating slot is engaged to the battery bracket tab, and tighten fasteners to 14 Nm (120 inch lbs.) torque.
c. Verify throttle body duct is fully seated to intake manifold and tighten clamp to 5 Nm (40 inch lbs.) torque.
d. Connect the Throttle Position Sensor (TPS) and Idle Air Control (IAC) connectors.
e. Connect proportional purge solenoid (PPS) and crankcase vent hose from throttle body
22. Connect the battery cables.
23. Road test vehicle and inspect for leaks.
