Clutch Slave Cylinder: Service and Repair
SLAVE CYLINDERREMOVAL - T350 MODELS
1. Raise vehicle on hoist.
2. Remove cotter key from hydraulic tube-to-slave cylinder connection point.
3. Using a suitable punch, drive out roll pin and discard.

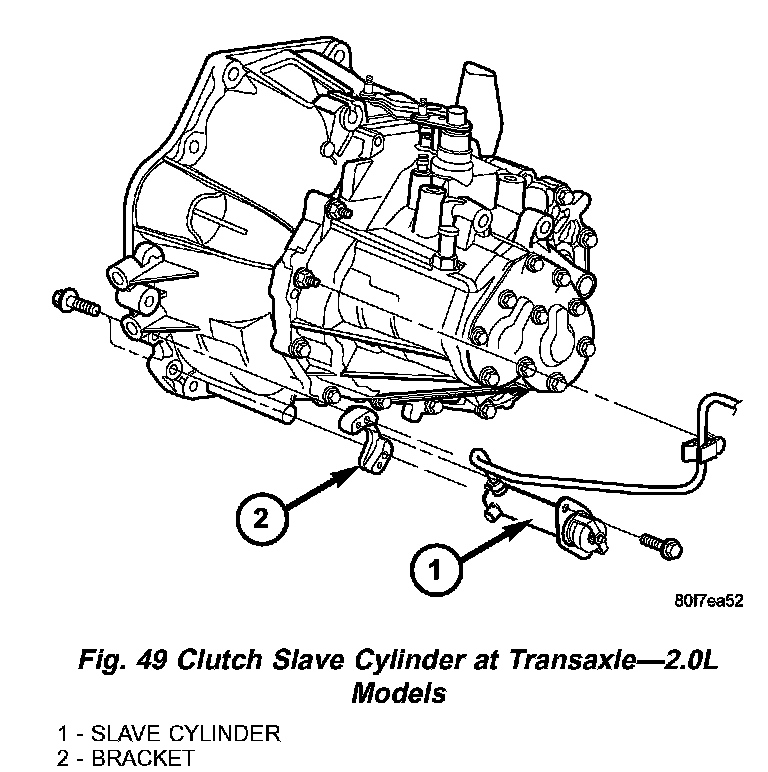

4. Remove slave cylinder mounting bolts (Fig. 49).
5. Remove slave cylinder from transaxle and separate from hydraulic tube. Allow brake fluid to drain into suitable container.
INSTALLATION - T350 MODELS
1. Install the slave cylinder assembly into position on transaxle (Fig. 49).
2. Tighten slave cylinder-to-transaxle bolts to 19 Nm (168 inch lbs.).
3. Connect clutch hydraulic supply tube to slave cylinder. Install NEW roll pin and cotter key
4. Lower vehicle.
5. Verify clutch master cylinder reservoir is full. Top off with DOT 3 brake fluid if necessary.
6. Bleed clutch hydraulic system.
7. Verify proper clutch release system operation.
