Left Hand Drive
MASTER CYLINDER-LHDDESCRIPTION

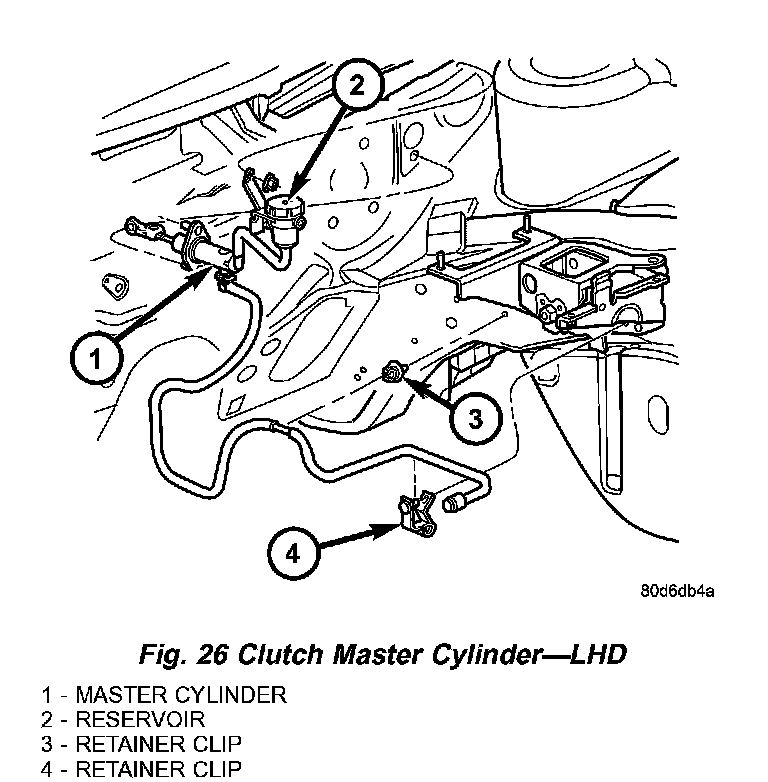

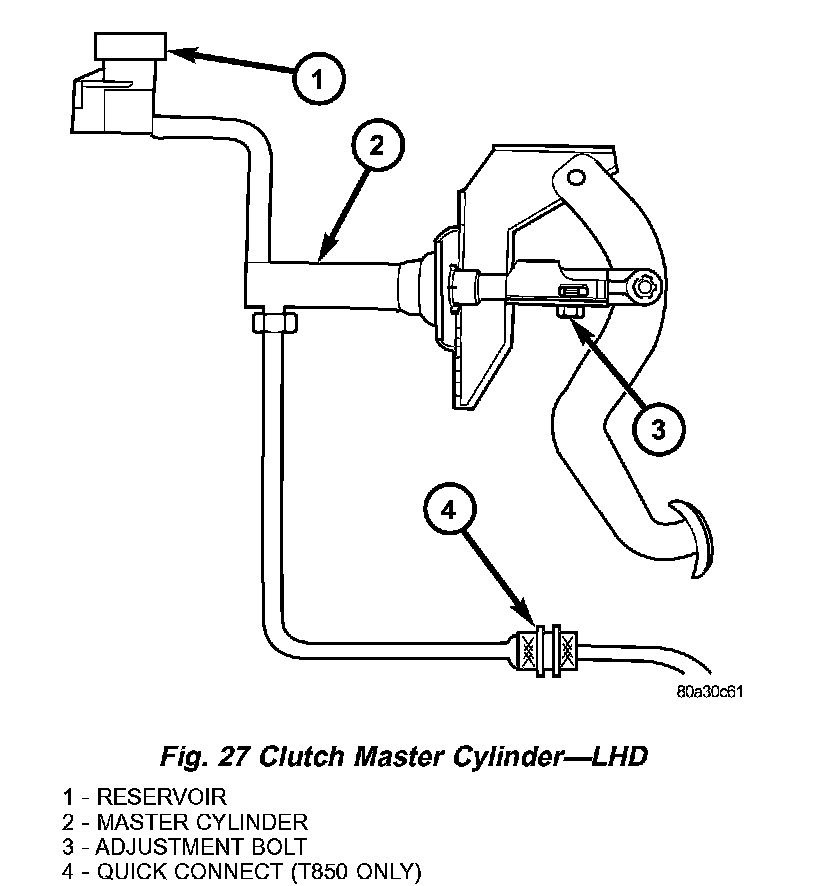

NOTE: A one-piece master/slave cylinder assembly is used on T350 models. If the master cylinder requires replacement, the master AND slave cylinders must be replaced with a two-piece system. The LHD clutch master cylinder mounts to the dash panel (Fig. 26). The master cylinder consists of an adjustable push rod, a piston and cylinder housing, a remote fluid reservoir, an interconnecting hydraulic tube, and an integral slave cylinder (Fig. 27).
