Clutch Disc: Description and Operation
MODULAR CLUTCHDESCRIPTION

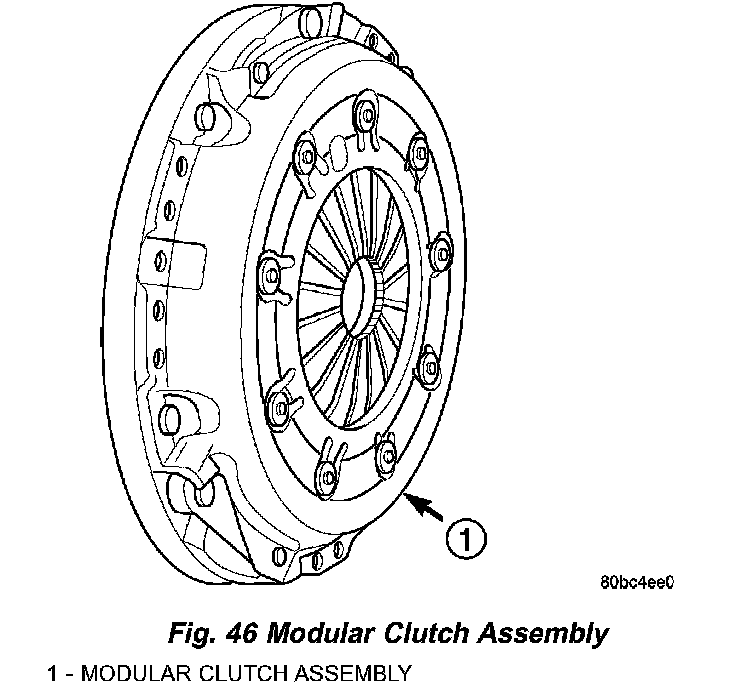

The modular clutch assembly (Fig. 46) is located between the engine and manual transaxle in the transaxle bellhousing, and is responsible for transmitting engine power to the transaxle. The modular clutch assembly consists of the following components:
- Flywheel
- Clutch Disc
- Pressure Plate
- Diaphragm Spring
