Automatic Transmission/Transaxle: Tools and Equipment

SPECIAL TOOLS

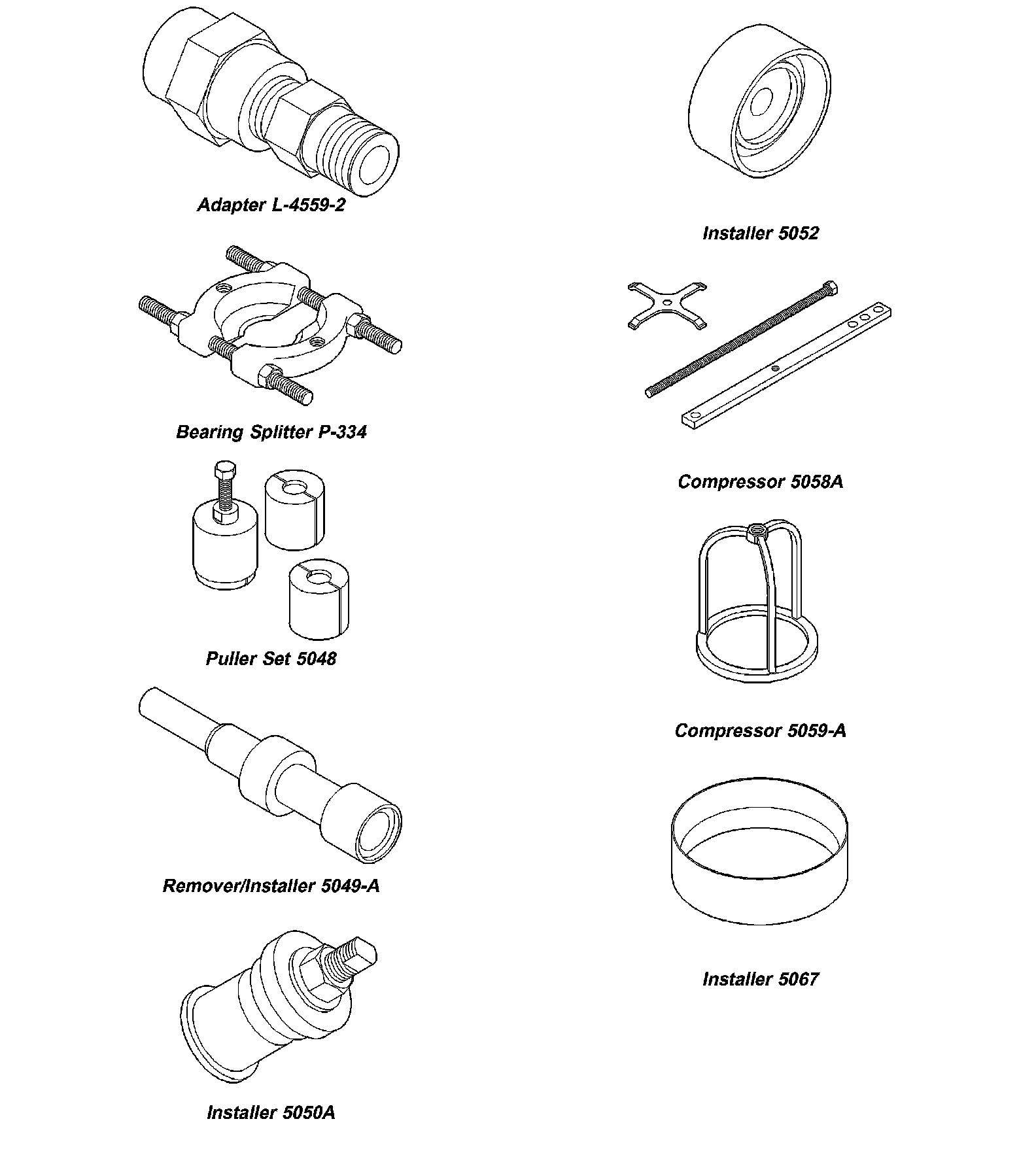

Part 1:

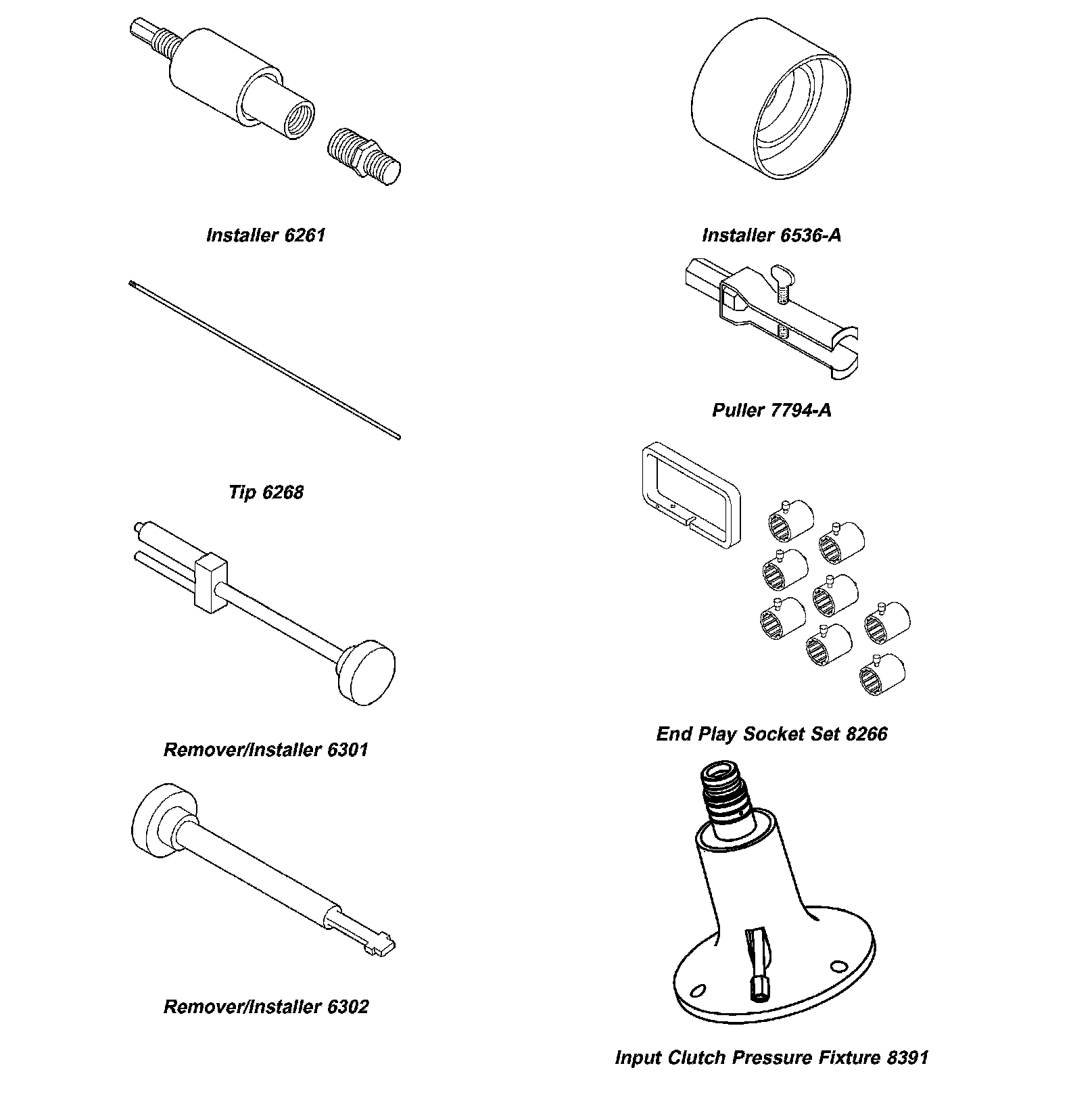

Part 2:

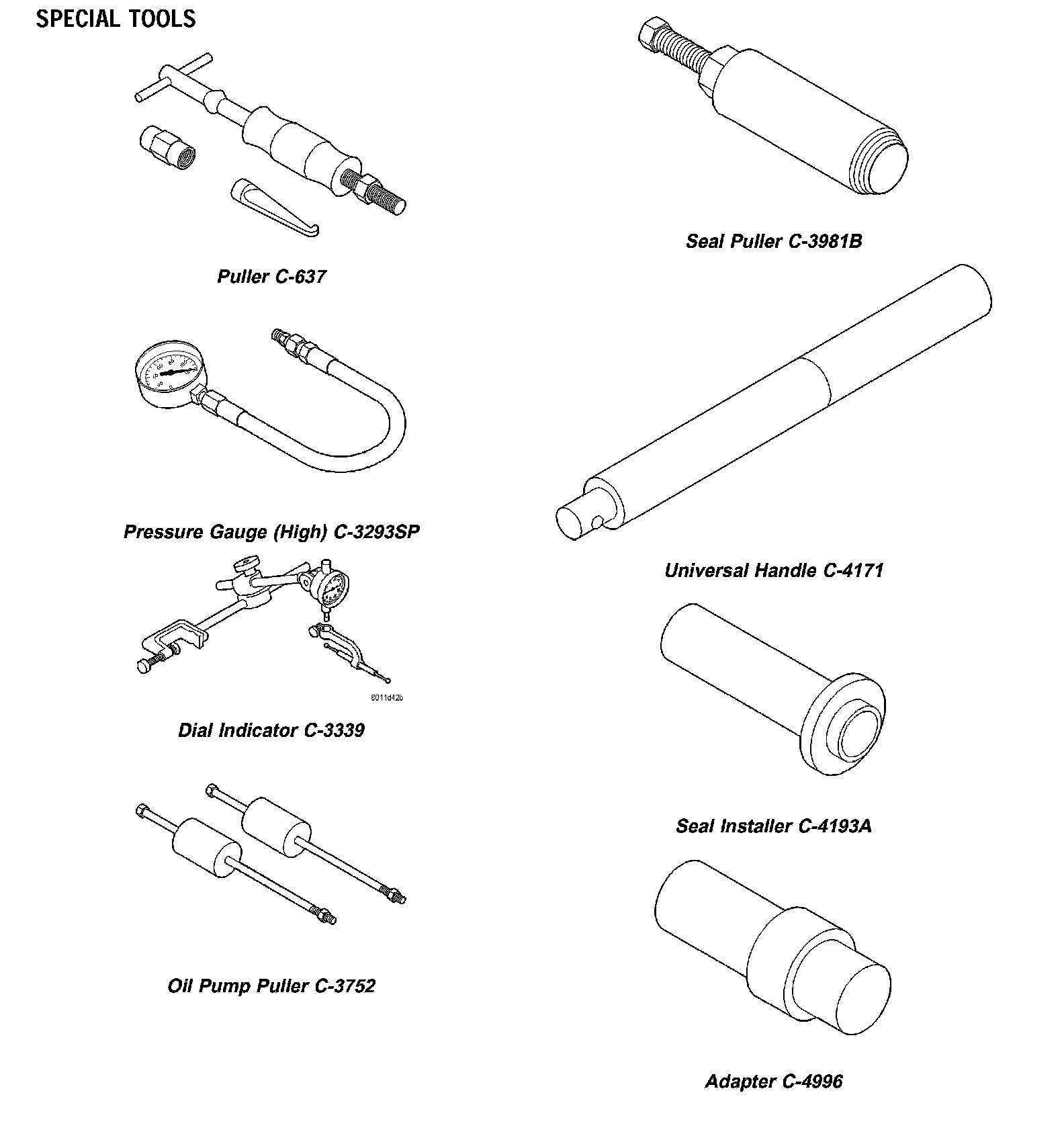

Part 3:

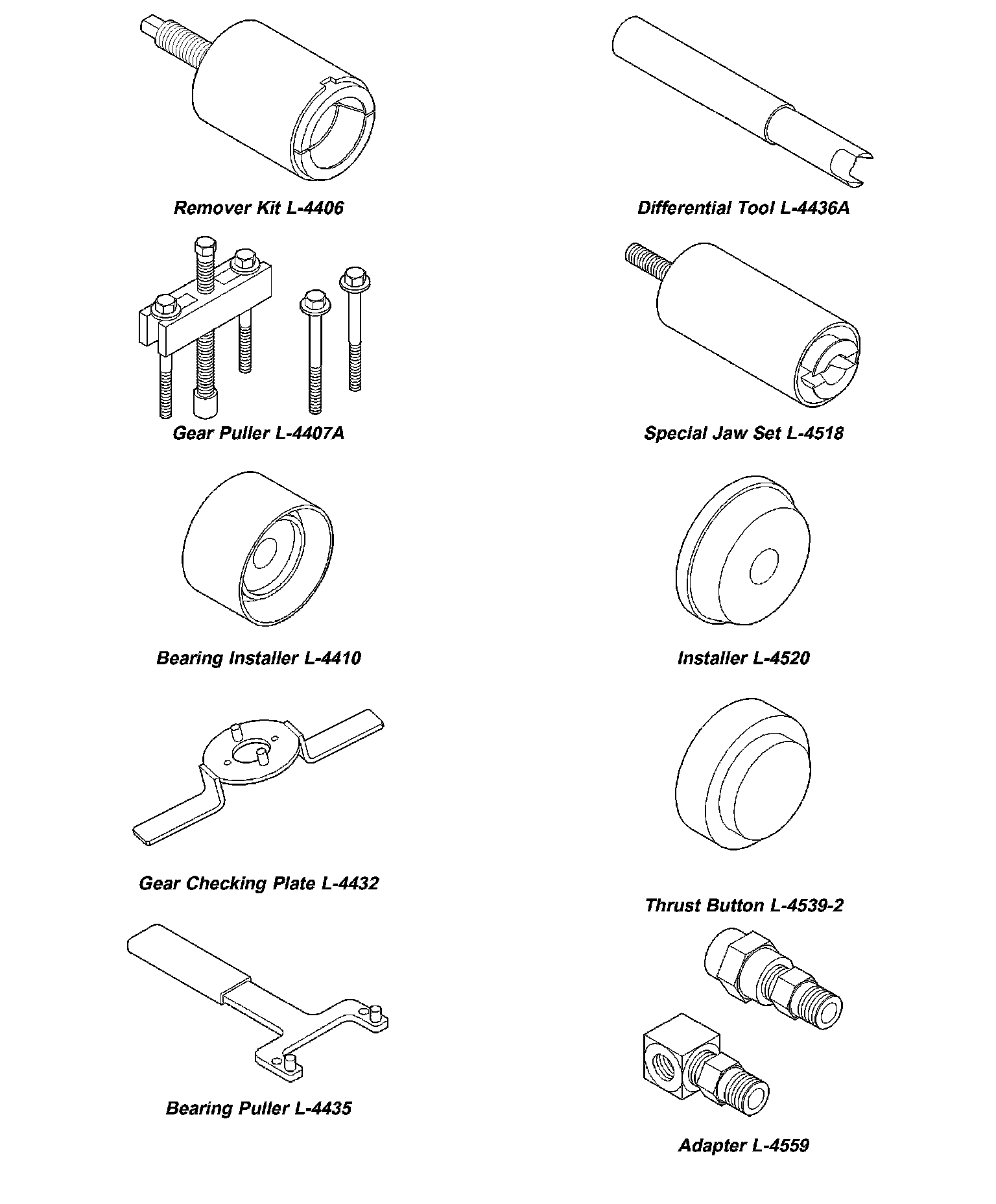

Part 4:




Part 5:
