Electrical Diagrams

SCHEMATICS AND DIAGRAMS

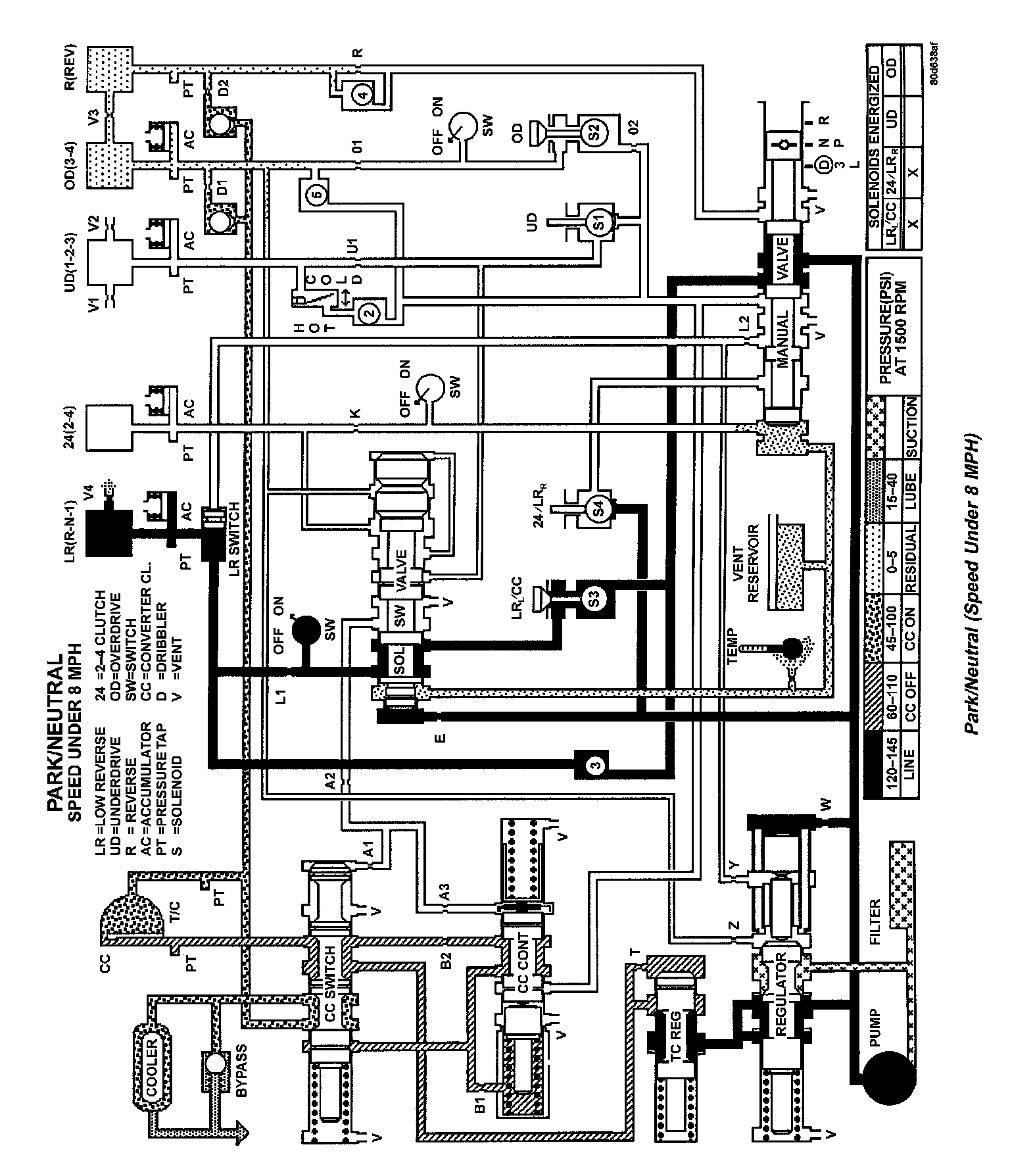

Park/Neutral (Speed Under 8 MPH)

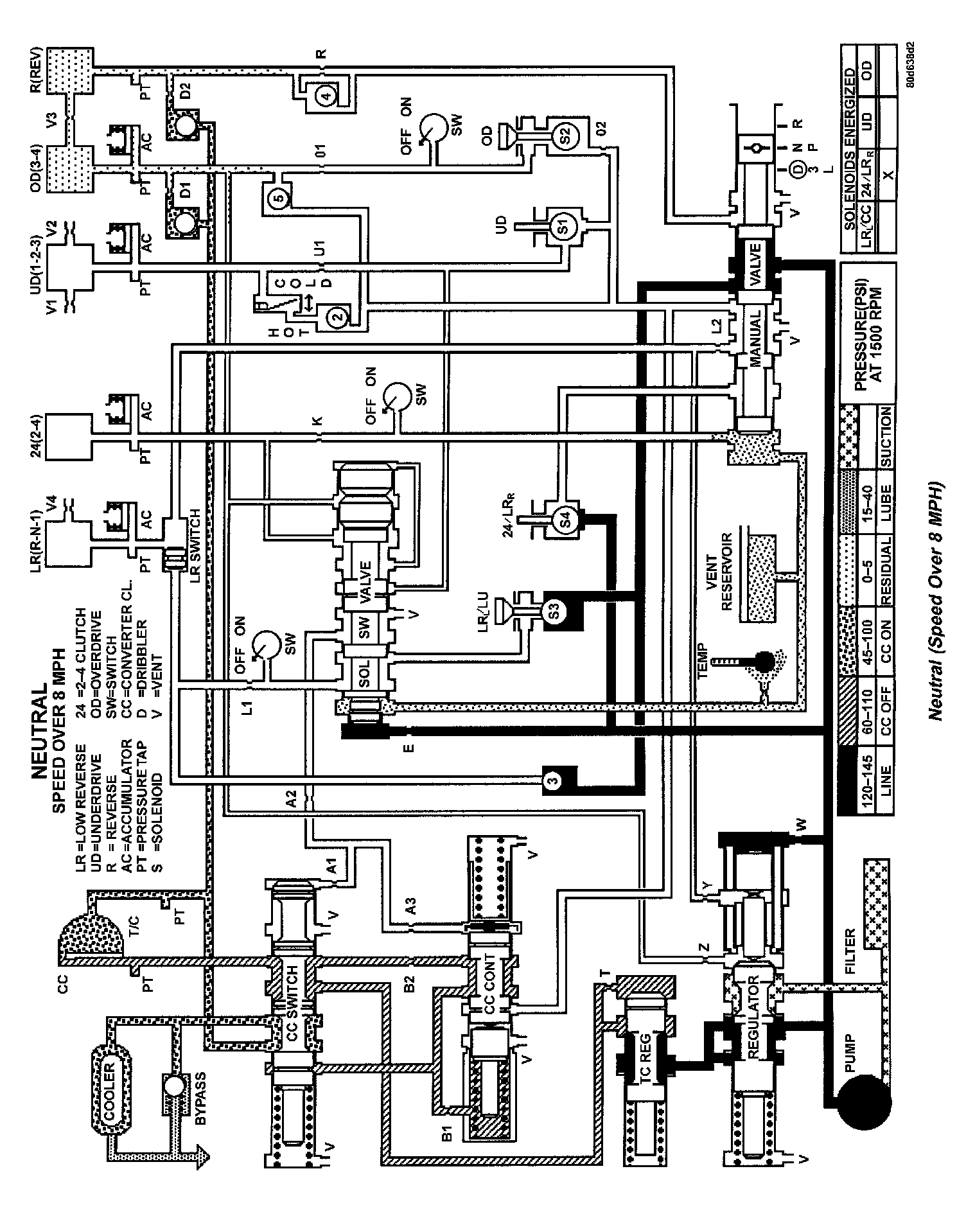

Neutral (Speed Over 8 MPH)

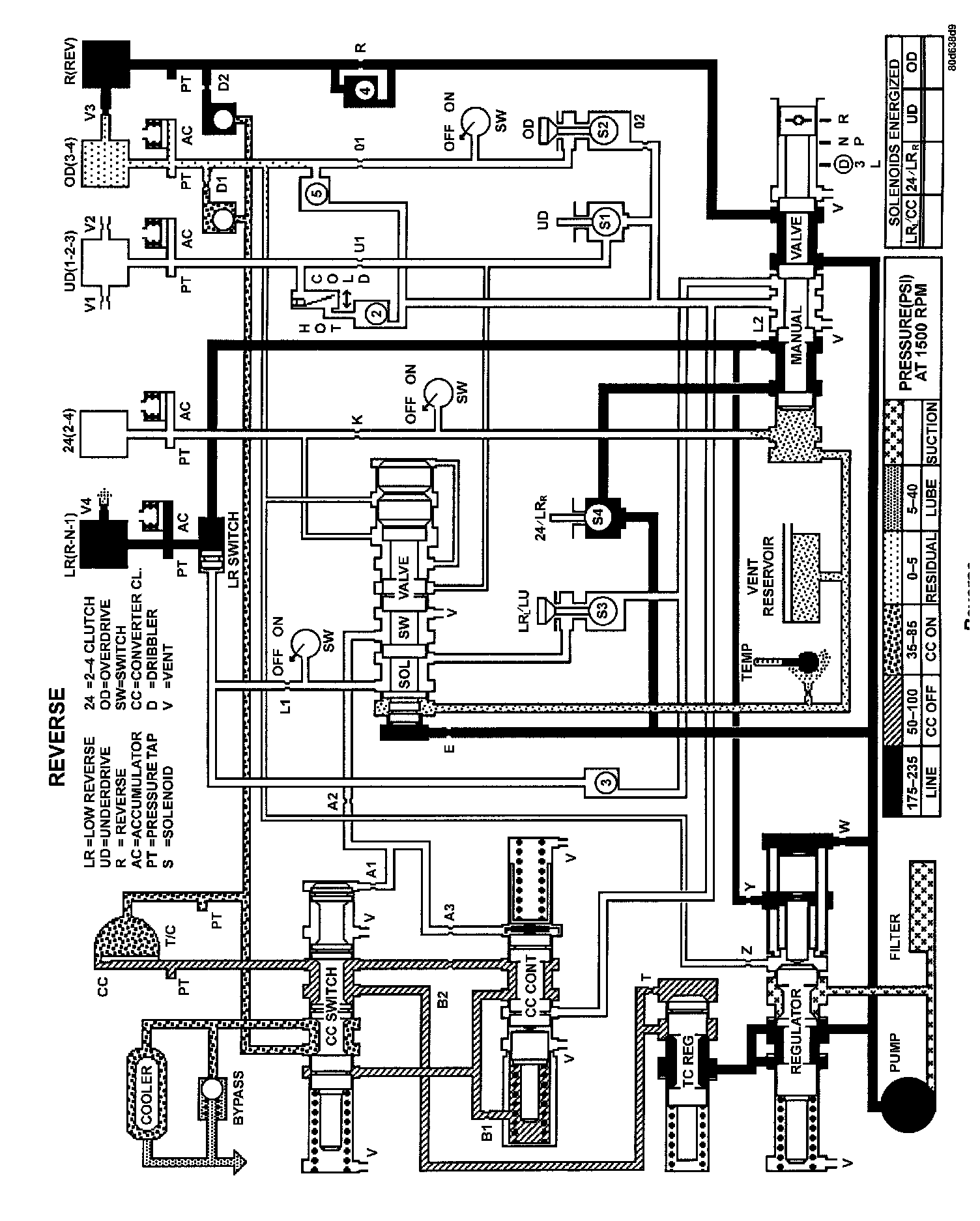

Reverse

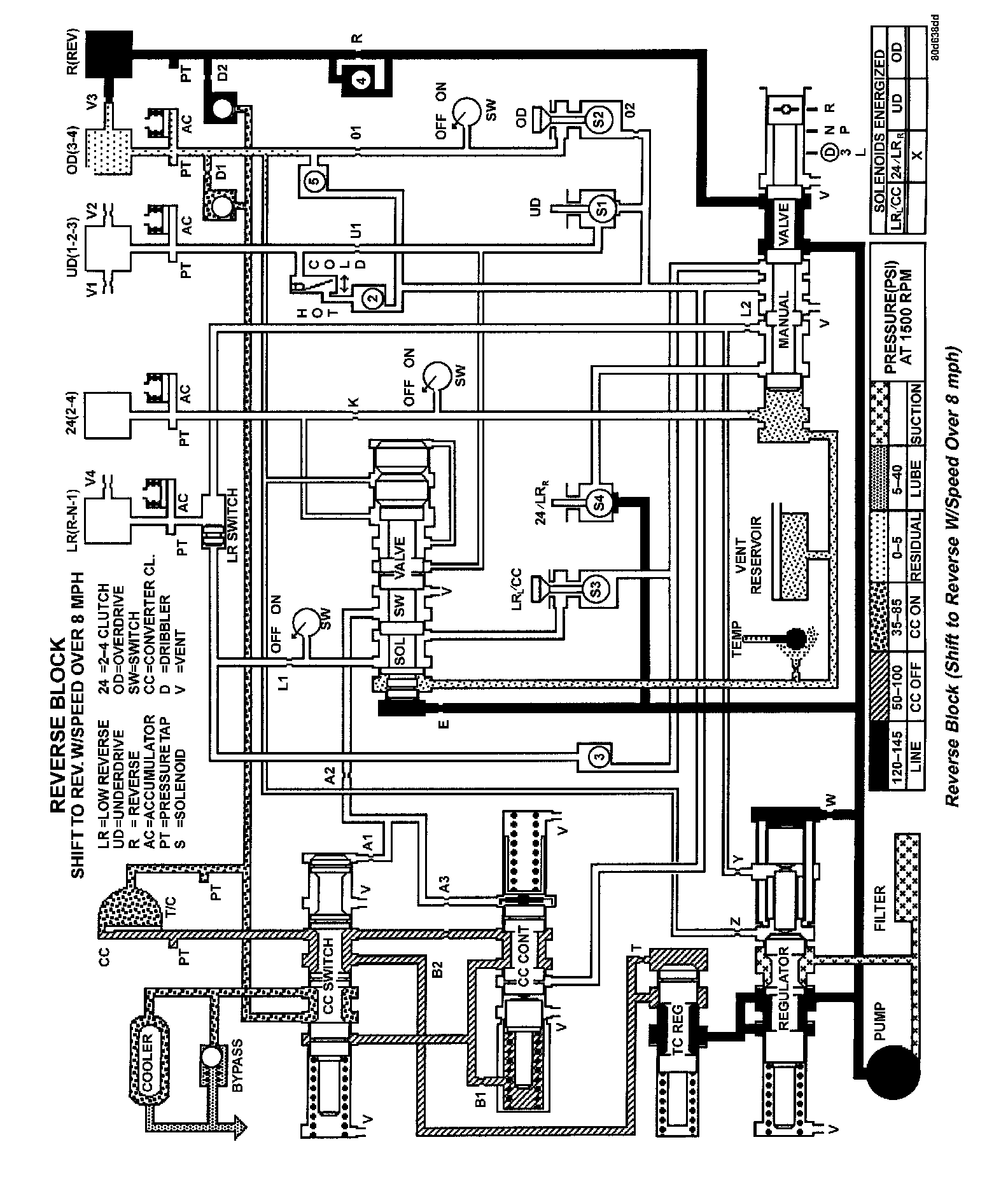

Reverse Block (Shift to Reverse W/Speed Over 8 mph)





First Gear

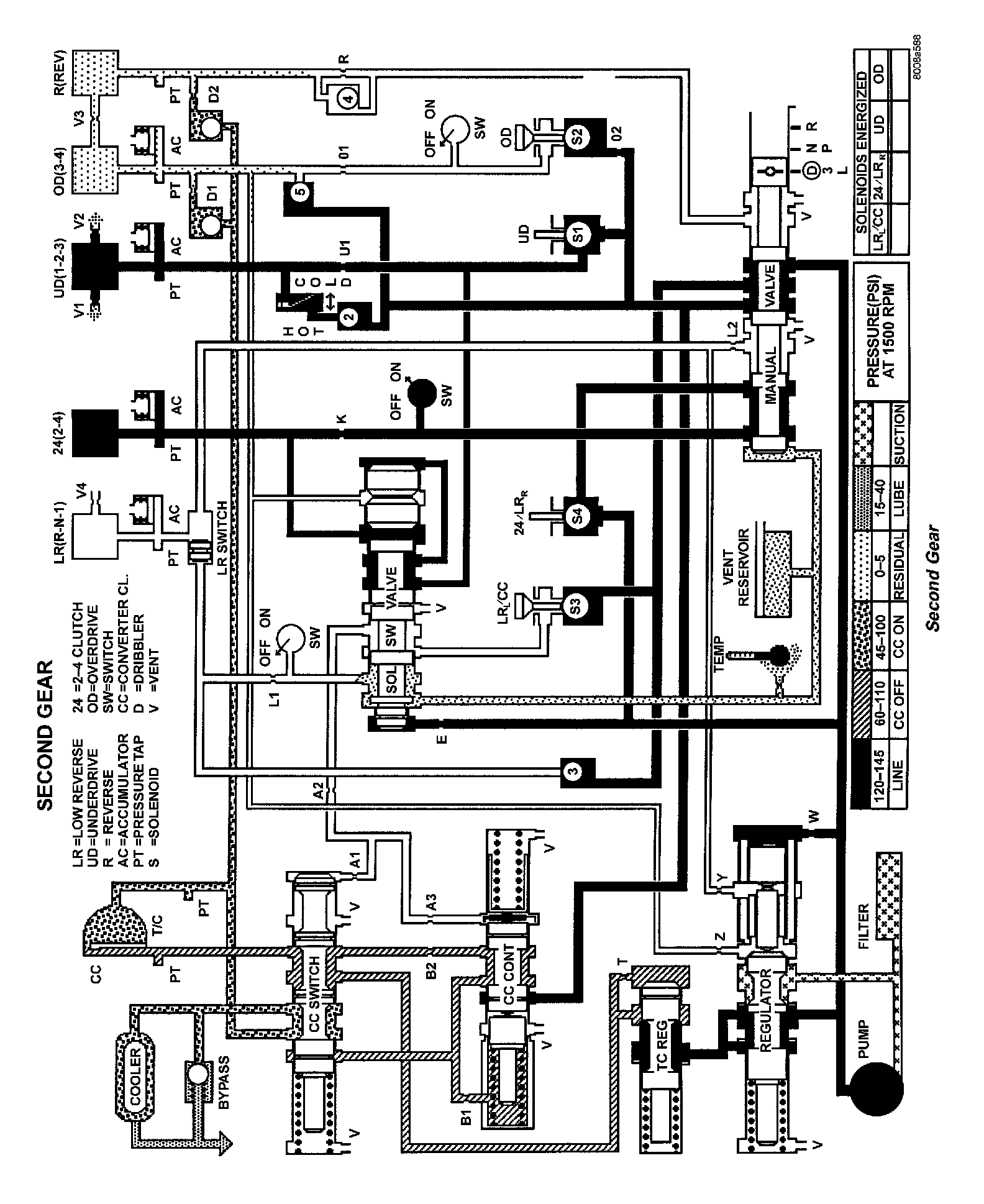

Second Gear

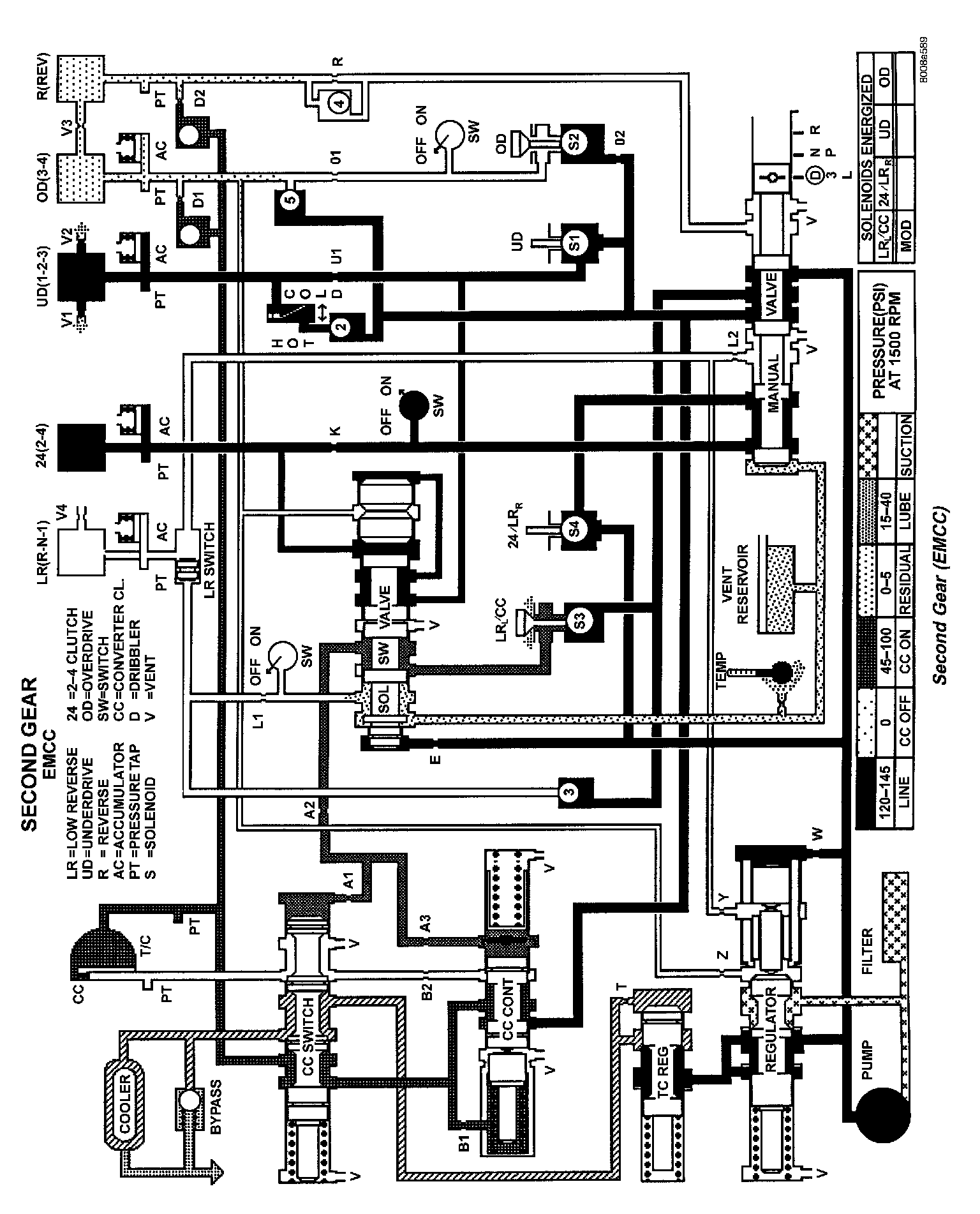

Second Gear EMCC

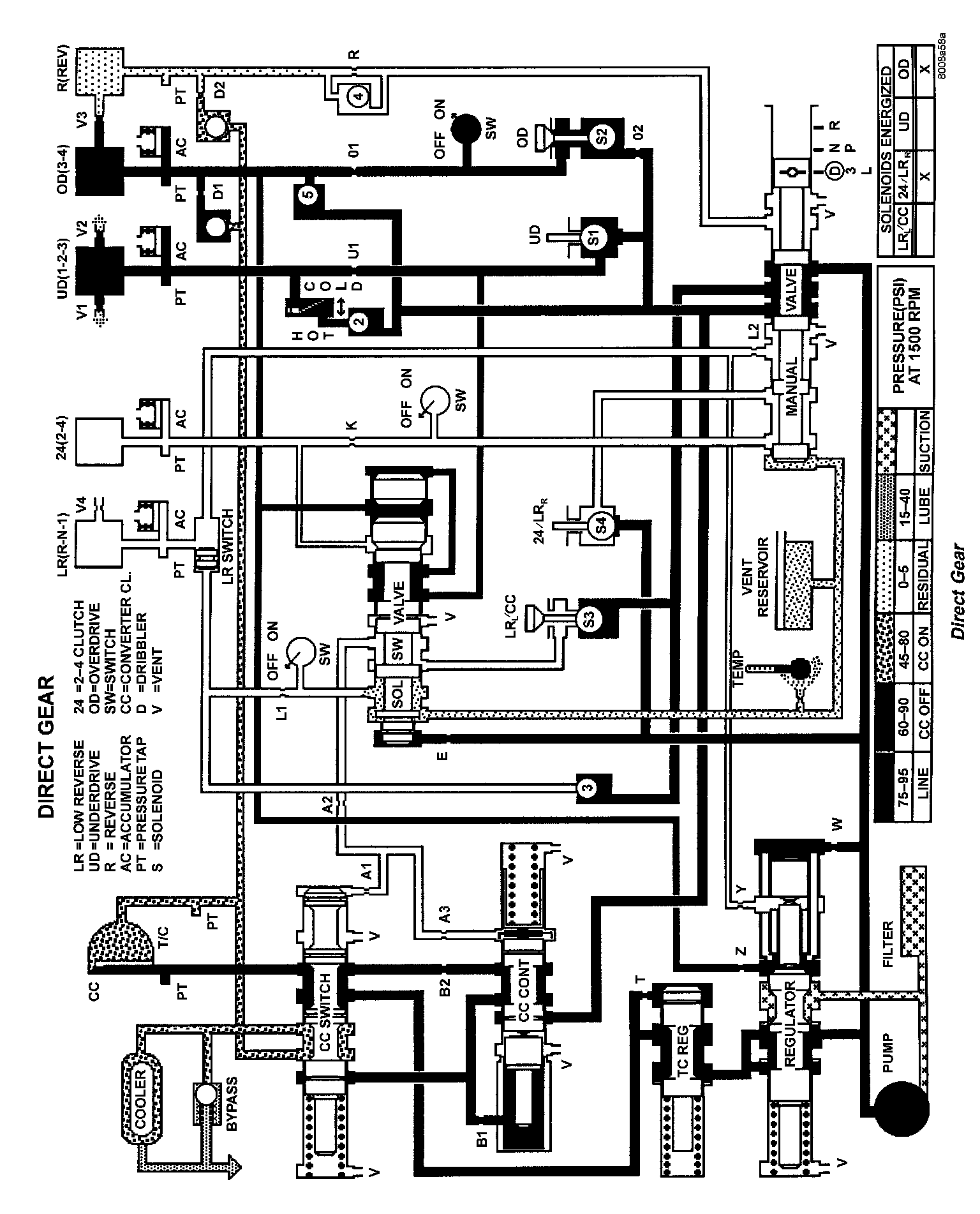

Direct Gear





Direct Gear (CC On)

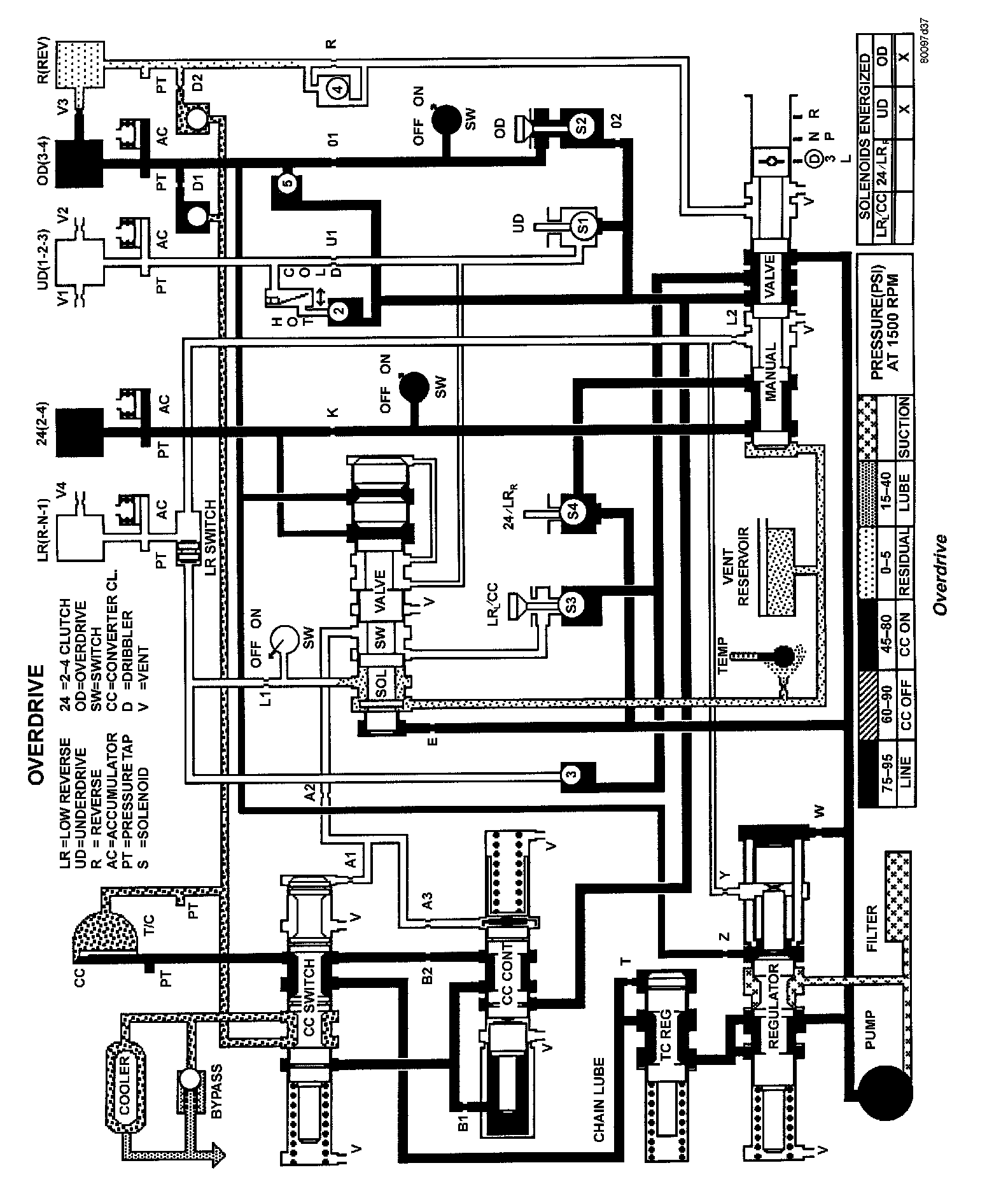

Overdrive

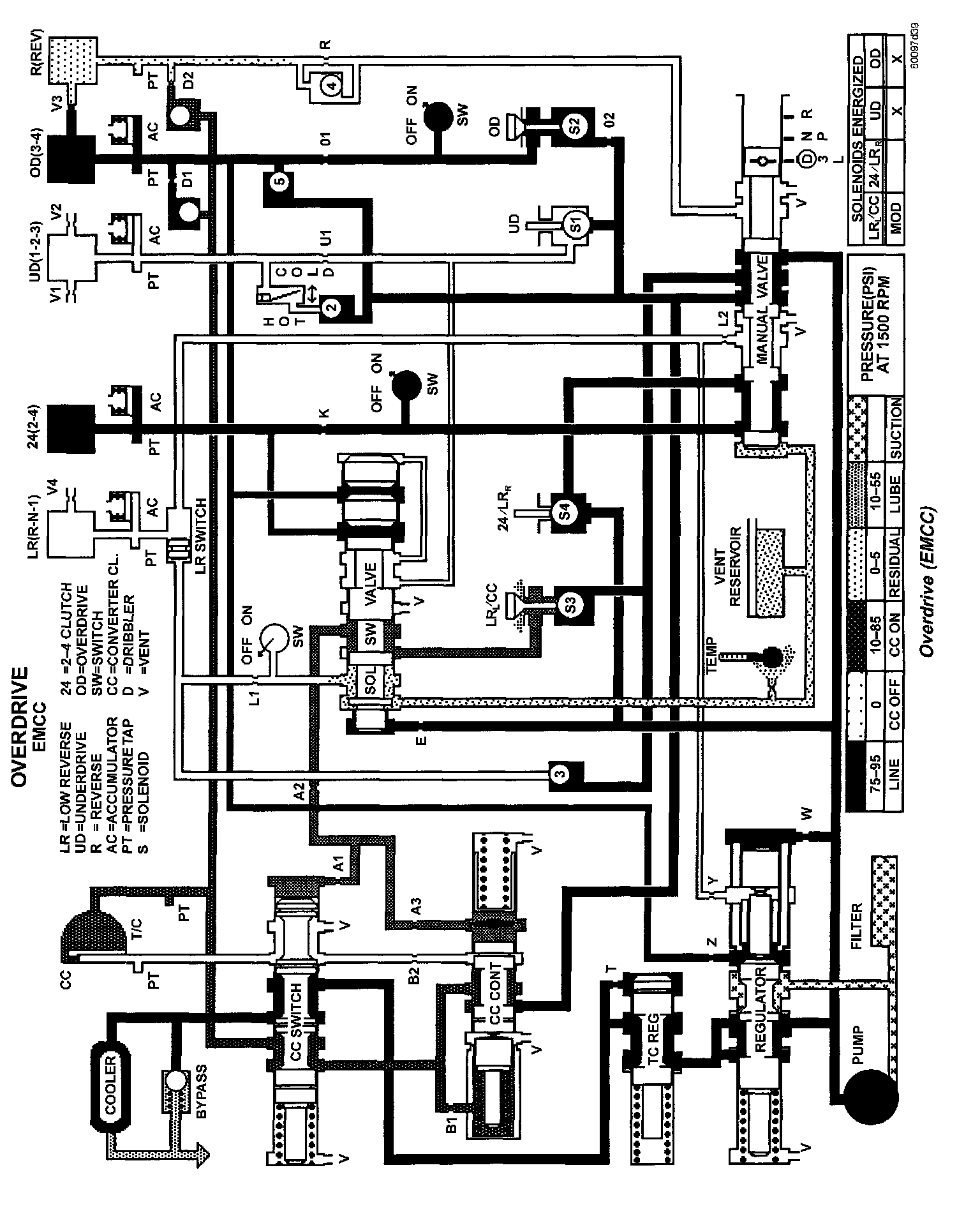

Overdrive (EMCC)

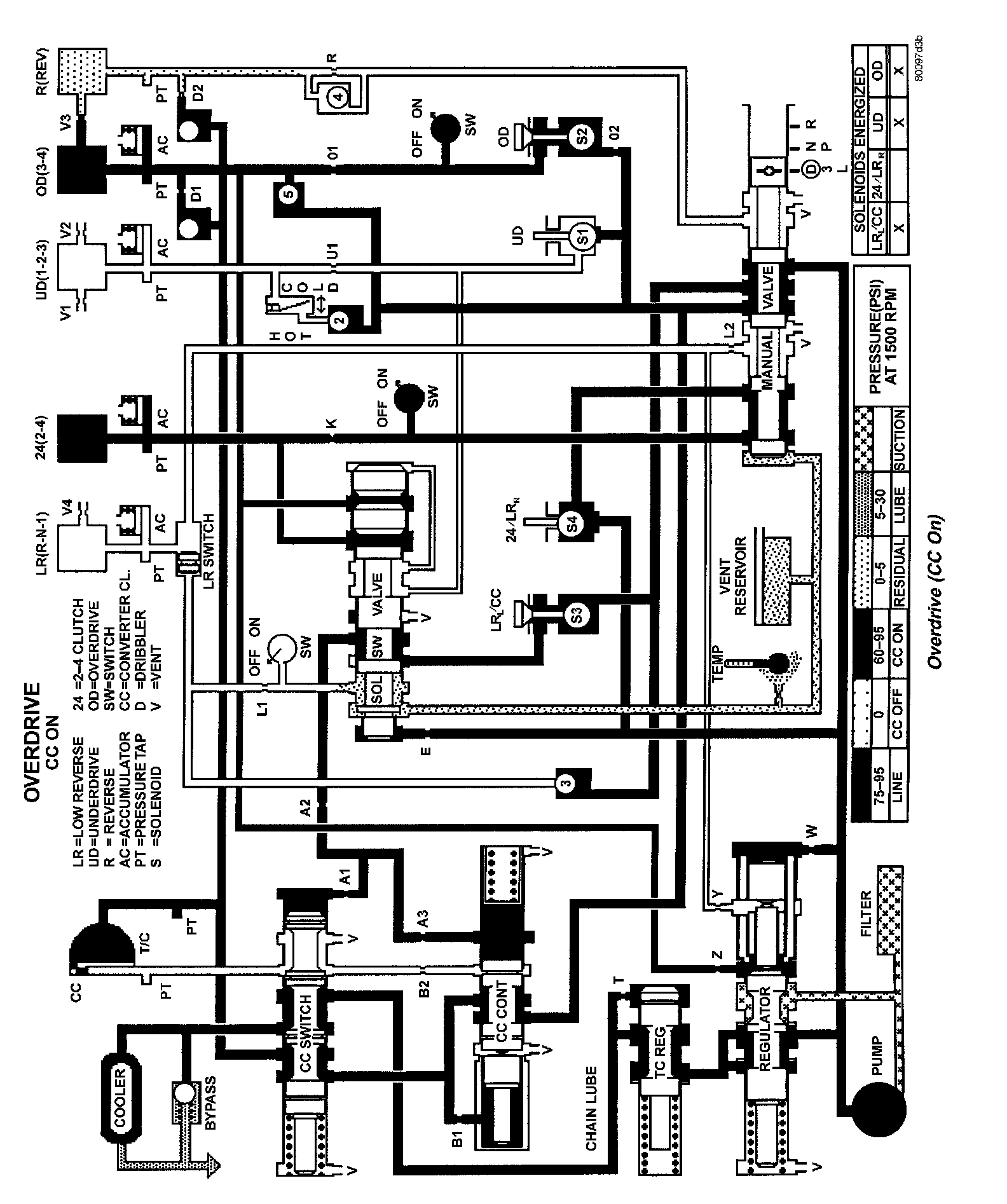

Overdrive (CC On)

4XTE TRANSAXLE HYDRAULIC SCHEMATICS
