Steering Shaft Coupler: Description and Operation

DESCRIPTION - STEERING COUPLING (LOWER)

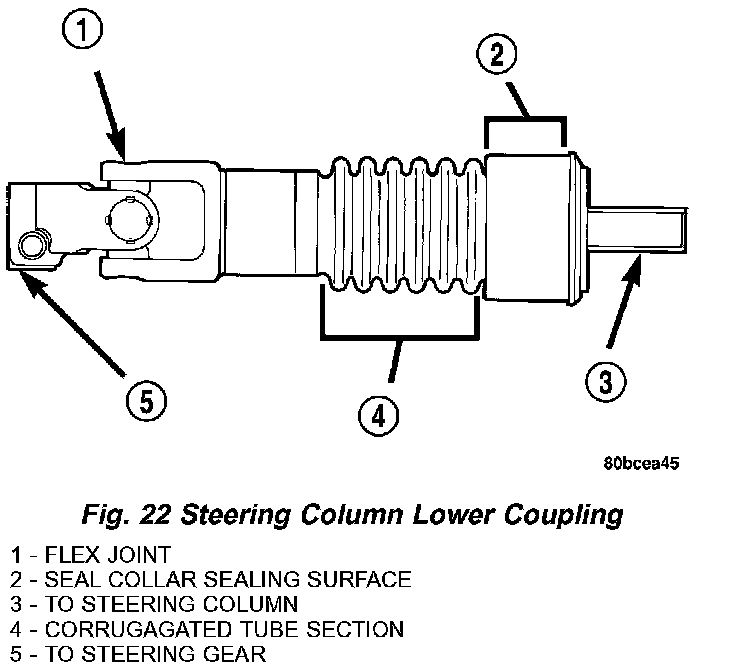

This vehicle uses a corrugated design lower coupling to connect the steering column to the steering gear (Fig. 22).
This coupling has a hollow corrugated tube that allows the coupling to bend rather than collapse when a vehicle is involved in a collision.
