Wheels

SPECIFICATIONS

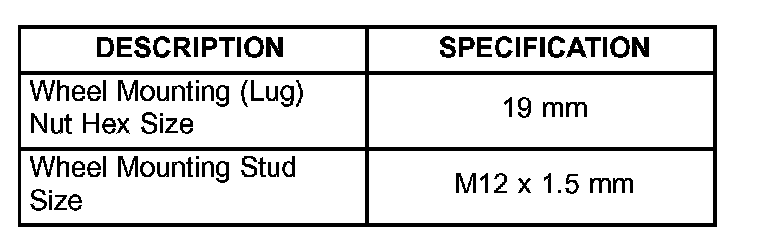

WHEEL SPECIFICATIONS
Wheel Mounting (Lug) Nut Hex Size 19 mm
Wheel Mounting Stud Size M12 x 1.5 mm

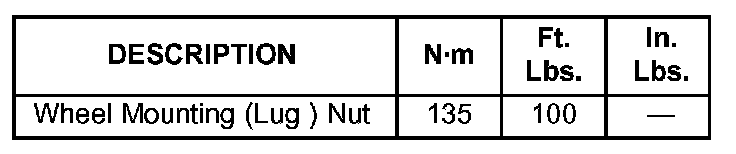

TORQUE SPECIFICATIONS
Wheel Mounting (Lug) Nut 135 Nm (100 ft. lbs.)

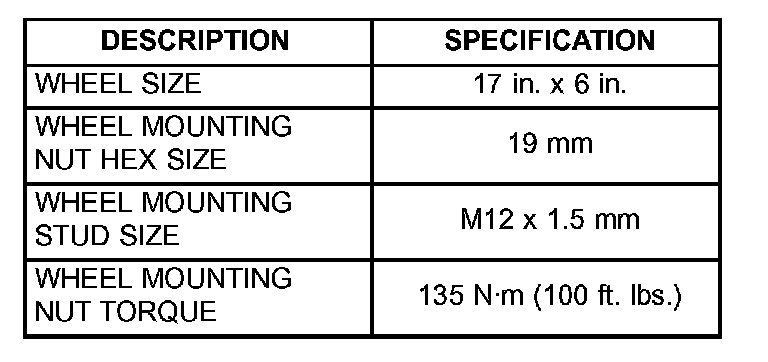

WHEEL - SRT-4
WHEEL SIZE 17 inch x 6 inch
WHEEL MOUNTING NUT HEX SIZE 19 mm
WHEEL MOUNTING STUD SIZE M12 x 1.5 mm
WHEEL MOUNTING NUT TORQUE 135 Nm (100 ft. lbs.)
