Front Suspension

SPECIFICATIONS

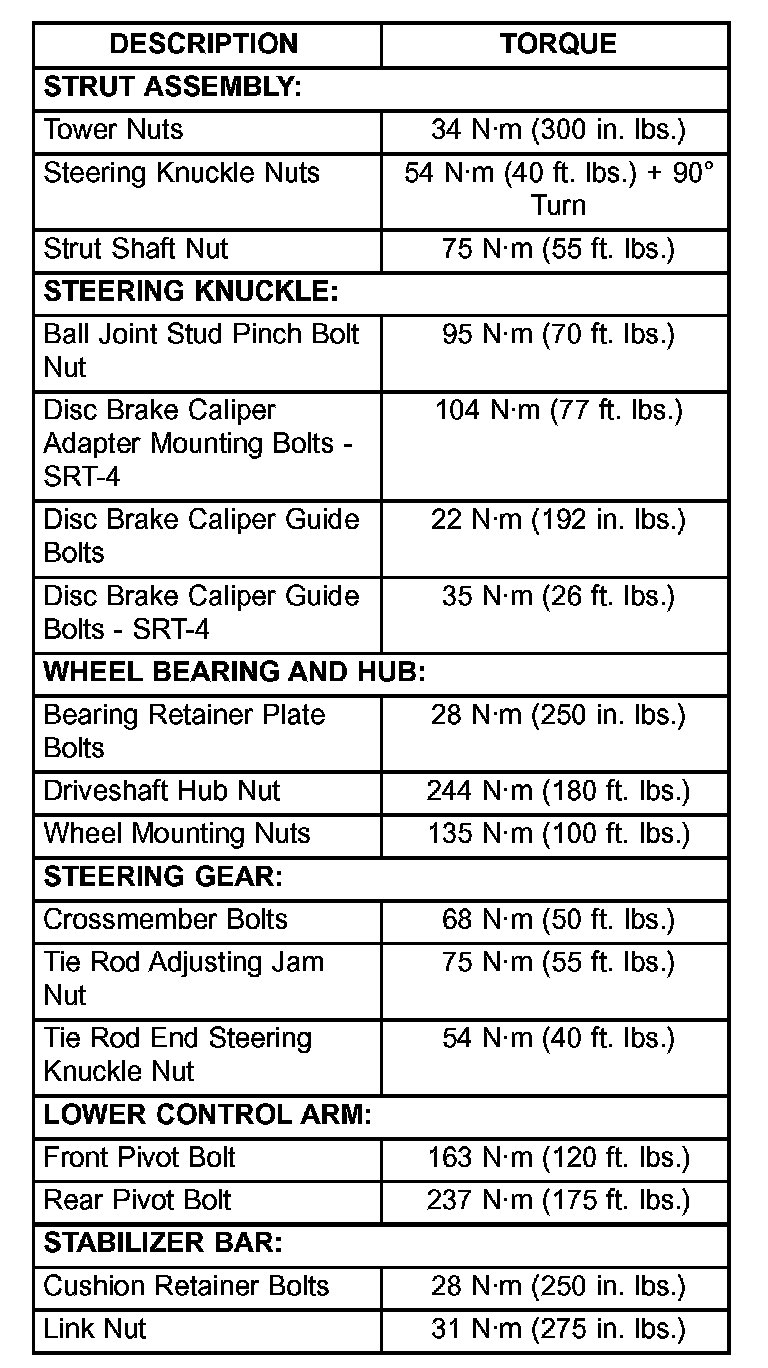

FRONT SUSPENSION FASTENER TORQUE:

FRONT SUSPENSION FASTENER TORQUE
STRUT ASSEMBLY:
Tower Nuts 34 Nm (300 inch lbs.)
Steering Knuckle Nuts 54 Nm (40 ft. lbs.) + 90° Turn
Strut Shaft Nut 75 Nm (55 ft. lbs.)
STEERING KNUCKLE:
Ball Joint Stud Pinch Bolt Nut 95 Nm (70 ft. lbs.)
Disc Brake Caliper Adapter Mounting Bolts - SRT-4 104 Nm (77 ft. lbs.)
Disc Brake Caliper Guide Bolts 22 Nm (192 inch lbs.)
Disc Brake Caliper Guide Bolts - SRT-4 35 Nm (26 ft. lbs.)
WHEEL BEARING AND HUB:
Bearing Retainer Plate Bolts 28 Nm (250 inch lbs.)
Driveshaft Hub Nut 244 Nm (180 ft. lbs.)
Wheel Mounting Nuts 135 Nm (100 ft. lbs.)
STEERING GEAR:
Crossmember Bolts 68 Nm (50 ft. lbs.)
Tie Rod Adjusting Jam Nut 75 Nm (55 ft. lbs.)
Tie Rod End Steering Knuckle Nut 54 Nm (40 ft. lbs.)
LOWER CONTROL ARM:
Front Pivot Bolt 163 Nm (120 ft. lbs.)
Rear Pivot Bolt 237 Nm (175 ft. lbs.)
STABILIZER BAR:
Cushion Retainer Bolts 28 Nm (250 inch lbs.)
Link Nut 31 Nm (275 inch lbs.)
