SPECIFICATIONS
EXHAUST SYSTEM
CLEARANCES
1.

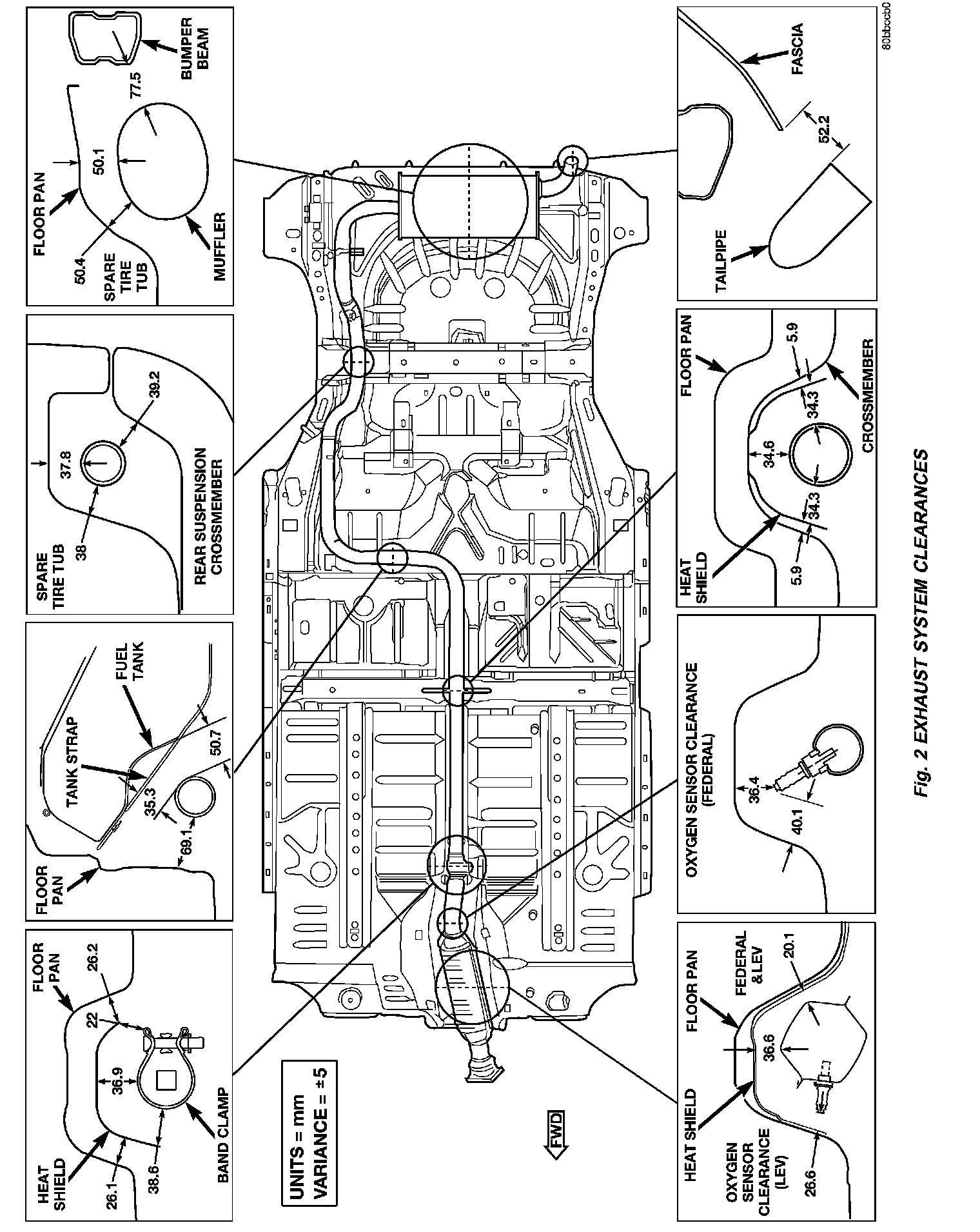

Use the following illustration to adjust the
exhaust system
(Fig. 2).
