Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Front Brake Rotor

Front Brake Rotor

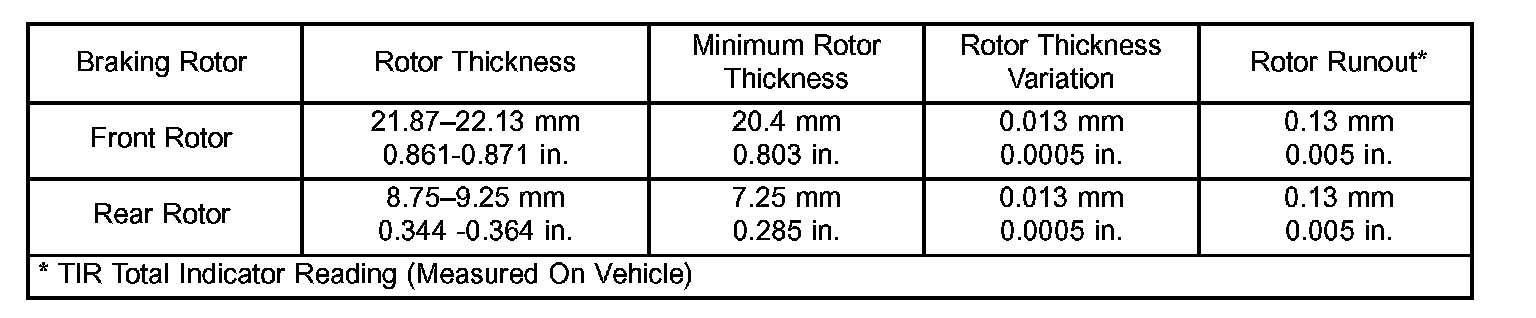

BRAKE ROTOR LIMITS/SPECIFICATIONS

NOTE: When refacing a rotor, the required Total Indicator Reading (TIR) and thickness variation limits MUST BE MAINTAINED.

BRAKE ROTOR LIMITS/SPECIFICATIONS:





SPECIFICATIONS
