Base Brake Torque Specifications

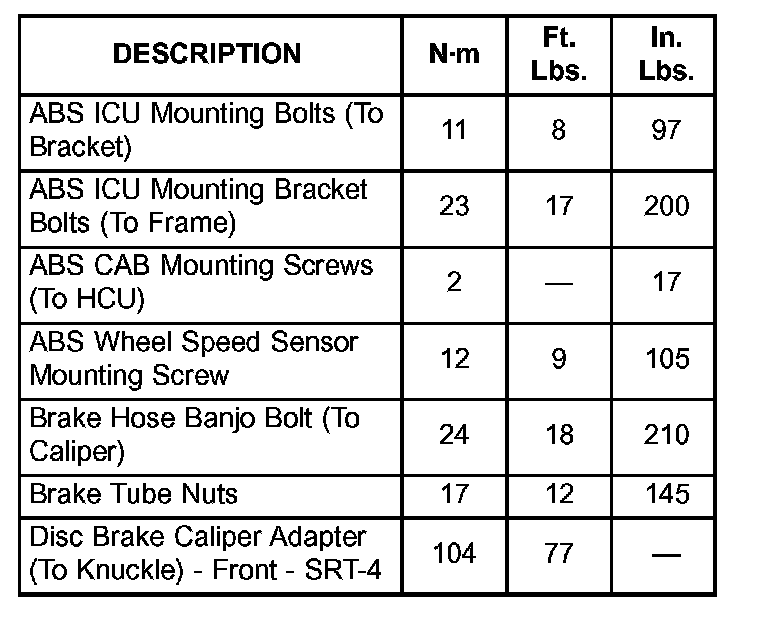

BRAKE FASTENER TORQUE Part 1 Of 2:

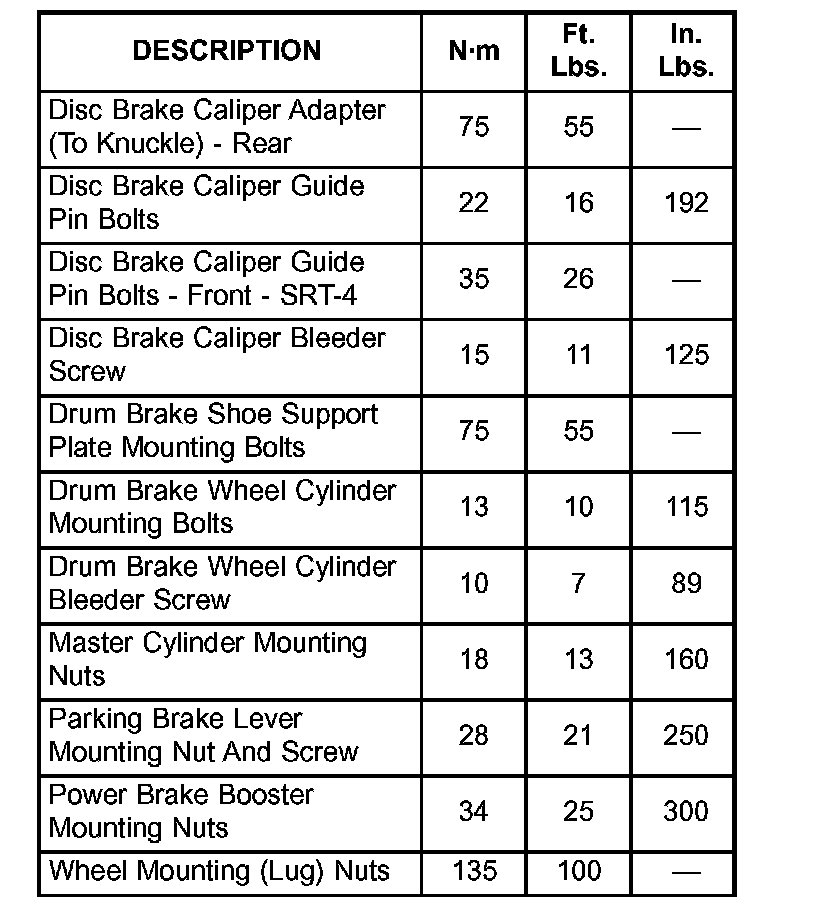

BRAKE FASTENER TORQUE Part 2 Of 2:

BRAKE FASTENER TORQUE
ABS ICU Mounting Bolts (To Bracket) 11 Nm (8 ft. lbs., 97 inch lbs.)
ABS ICU Mounting Bracket Bolts (To Frame) 23 Nm (17 ft. lbs., 200 inch lbs.)
ABS CAB Mounting Screws (To HCU) 2 Nm (17 inch lbs.)
ABS Wheel Speed Sensor Mounting Screw 12 Nm (9 ft. lbs., 105 inch lbs.)
Brake Hose Banjo Bolt (To Caliper) 24 Nm (18 ft. lbs., 210 inch lbs.)
Brake Tube Nuts 17 Nm (12 ft. lbs., 145 inch lbs.)
Disc Brake Caliper Adapter (To Knuckle) - Front - SRT-4 104 Nm (77 ft. lbs.)
Disc Brake Caliper Adapter (To Knuckle) - Rear 75 Nm (55 ft. lbs.)
Disc Brake Caliper Guide Pin Bolts 22 Nm (16 ft. lbs., 192 inch lbs.)
Disc Brake Caliper Guide Pin Bolts - Front - SRT-4 35 Nm (26 ft. lbs.)
Disc Brake Caliper Bleeder Screw 15 Nm (11 ft. lbs., 125 inch lbs.)
Drum Brake Shoe Support Plate Mounting Bolts 75 Nm (55 ft. lbs.)
Drum Brake Wheel Cylinder Mounting Bolts 13 Nm (10 ft. lbs., 115 inch lbs.)
Drum Brake Wheel Cylinder Bleeder Screw 10 Nm (7 ft. lbs., 89 inch lbs.)
Master Cylinder Mounting Nuts 18 Nm (13 ft. lbs., 160 inch lbs.)
Parking Brake Lever Mounting Nut And Screw 28 Nm (21 ft. lbs., 250 inch lbs.)
Power Brake Booster Mounting Nuts 34 Nm (25 ft. lbs., 300 inch lbs.)
Wheel Mounting (Lug) Nuts 135 Nm (100 ft. lbs.)
