Antilock Brakes / Traction Control Systems

ABS FASTENER TORQUE

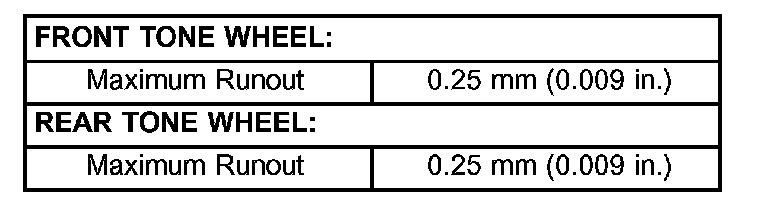

TONE WHEEL RUNOUT:

TONE WHEEL RUNOUT
FRONT TONE WHEEL:
Maximum Runout 0.25 mm (0.009 inch)
REAR TONE WHEEL:
Maximum Runout 0.25 mm (0.009 inch)

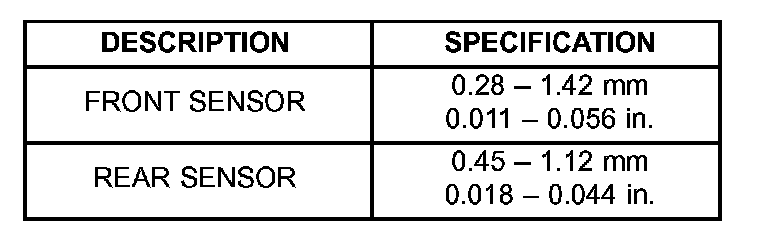

WHEEL SPEED SENSOR AIR GAP:

WHEEL SPEED SENSOR AIR GAP
FRONT SENSOR 0.28 - 1.42 mm (0.011 - 0.056 inch)
REAR SENSOR 0.45 - 1.12 mm (0.018 - 0.044 inch)
