Seat Belt and Retractor - Rear Center

REMOVAL
1. Remove rear seat cushion and back.
2. Remove seat belt bezel from parcel shelf cover.
3. Remove bolt attaching seat belt lower anchor to floor.

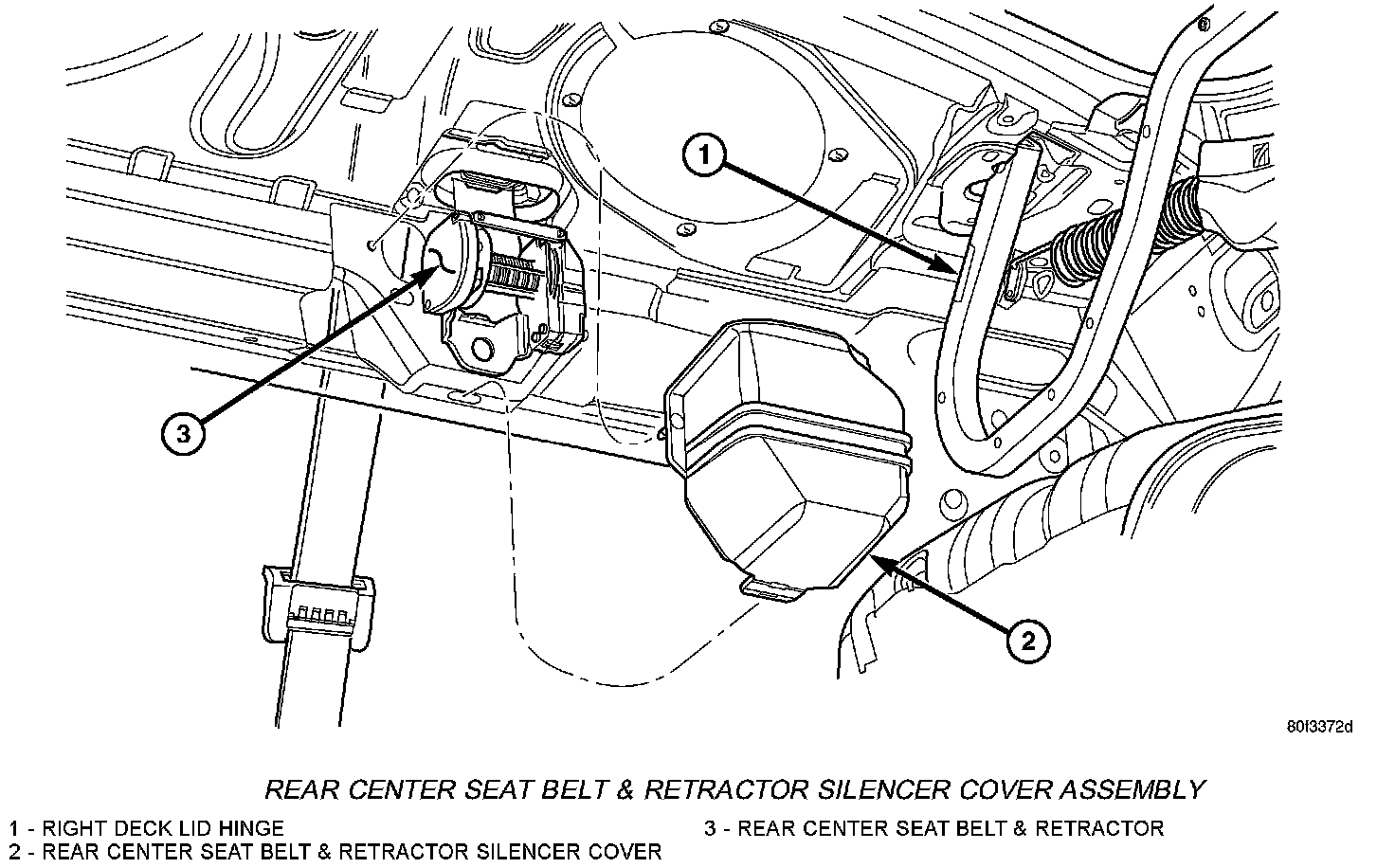

Rear Center Seat Belt & Retractor Silencer Cover Assembly:

4. Remove two push fasteners to NVH cover over retractor .
5. Push seat belt bezel and buckle stab through access hole in parcel shelf.

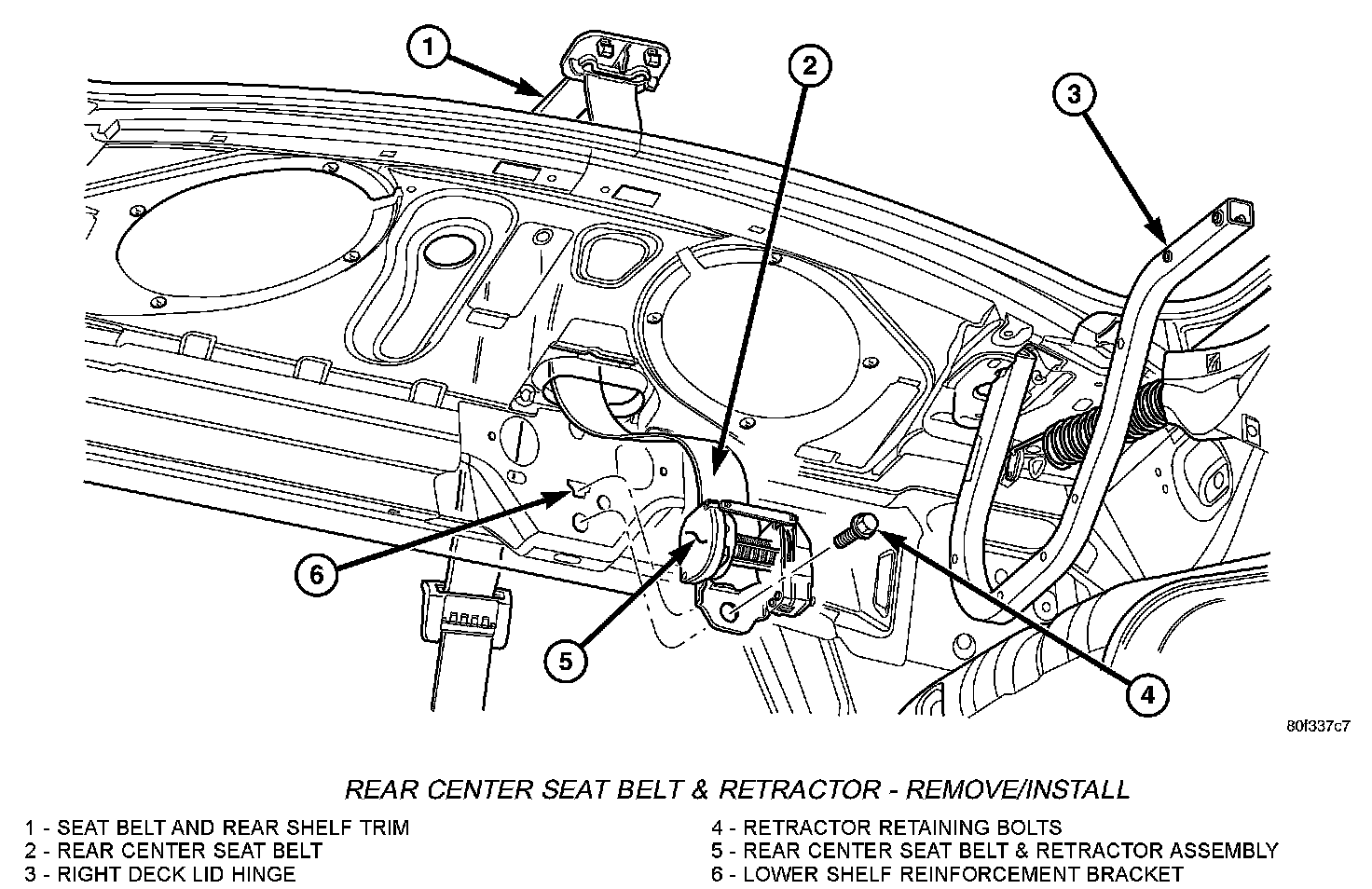

Rear Center Seat Belt & Retractor - Remove/Install:

6. Remove bolt attaching retractor to lower shelf reinforcement bracket.
7. From in trunk compartment, remove rear seat belt retractor from vehicle.

INSTALLATION
1. Position rear seat belt retractor in trunk compartment.
2. Push seat belt bezel and buckle stab through access hole in rear shelf trim panel.
3. Install bolt attaching retractor to rear floor. Tighten to 40 Nm (30 ft. lbs.) torque.
4. Install the NVH cover and two push fasteners over the center retractor.
5. Install bolt attaching seat belt lower anchor to floor. Tighten the seat belt bolt to 57 Nm (42 ft. lbs.) torque.
6. Install seat belt bezel to the rear shelf trim panel.
7. Install rear seat cushion and back.
